DF 25 LL

simple version

• solder buckets
• insulating shell: PBT +30% glass fiber, UL94V-0
• stamped brass contacts

contact surface
• plug side: gold flash nickel
• solder side: nickel, tin-plated
• housing frame: steel, tin-plated
• temperature range: -40...+105°C

DF 25 LL

13476 DF 25 LL 596-4-025F-A00TS-BS0 596-4-025F-A00TS-BS0 simple version. • solder buckets• insulating shell: PBT +30% glass fiber, UL94V-0• stamped brass contactscontact surface• plug side: gold flash nickel• solder side: nickel, tin-plated• housing frame: steel, tin-plated• temperature range: -40...+105°C

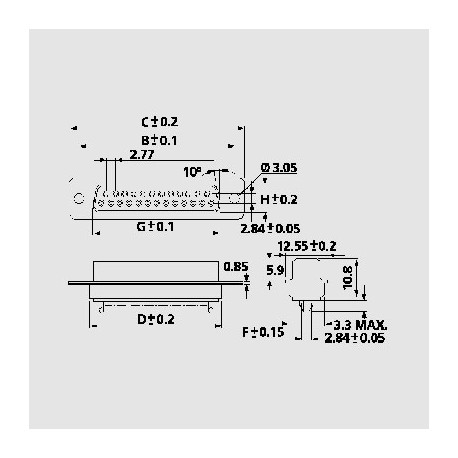

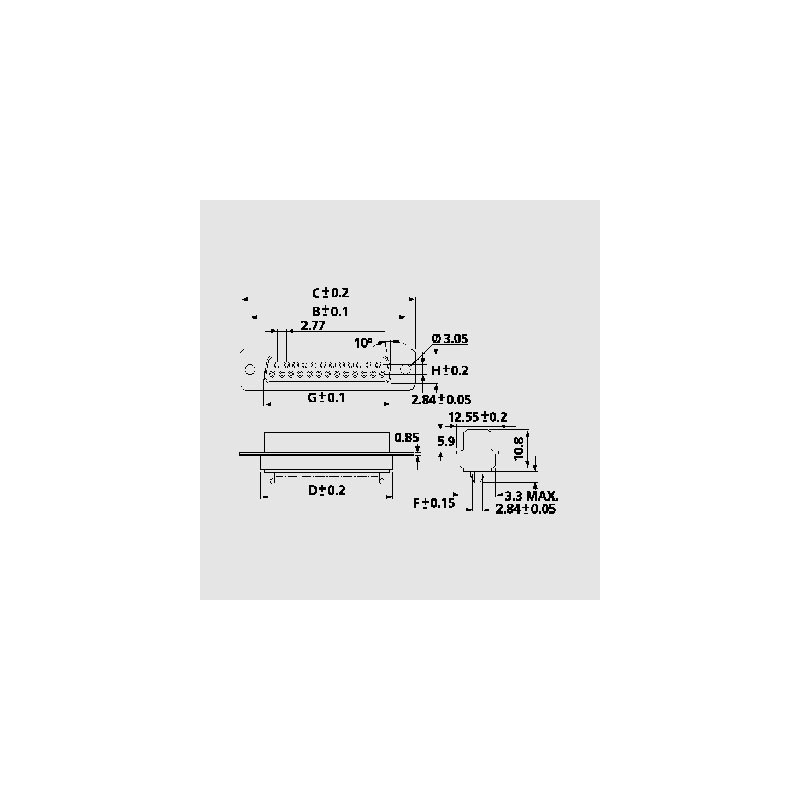

Specifications

manufacturer
Manufacturer's name 596-4-025F-A...
Number of poles 25
Height [mm] 7,9
Width [mm] 47,04
D [mm] 41,3
F [mm] 10,72
G [mm] 38,38
C [mm] 53,03

Unit price

0,44 €

Stock: 1189
Next incoming goods:
CW 26/2024
6000 units


Further delivery:
CW 33/2024

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
