SPTC34-4000

PC-connectors for flat cables

• insulation shell: PBT 20% glass-filled, grey
• contact material: copper alloy
• contact surface: tin-plated
• rated current: 1A
• insulation resistance (100V): 5000MΩ
• test voltage: 1000V eff.
• temperature range: -40...+105°C
• by Speed

SPTC34-4000

39080 SPTC34-4000 SPTC34-4000 PC-connectors for flat cables. • insulation shell: PBT 20% glass-filled, grey• contact material: copper alloy• contact surface: tin-plated• rated current: 1A• insulation resistance (100V): 5000MΩ• test voltage: 1000V eff.• temperature range: -40...+105°C• by Speed

Specifications

manufacturer
Manufacturer's name SPTC34-4000
Number of poles 34

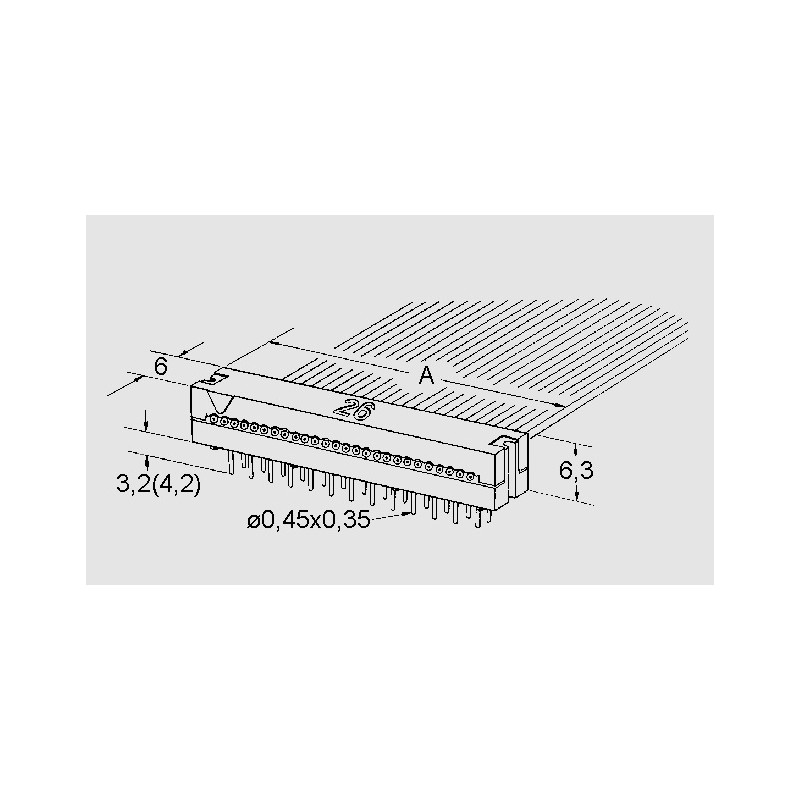

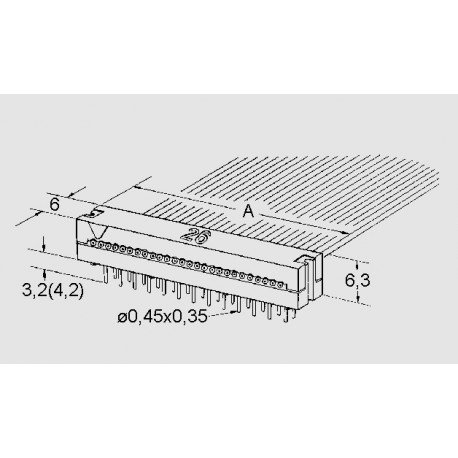

A [mm] 48
Width [mm] 40,64
Data Sheet

Unit price

0,606 €

Stock: 270
Further delivery:
CW 19/2024

Minimum order quantity 10 units or
multiples of 10.
