CRF05-1AS

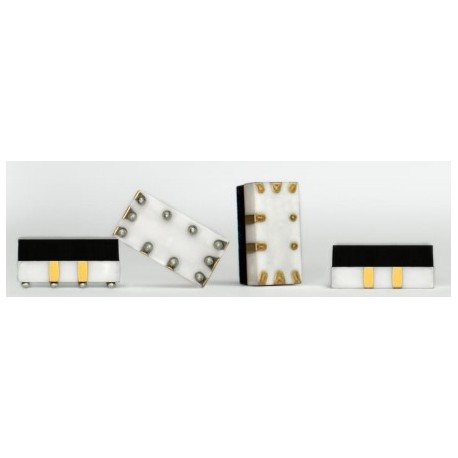

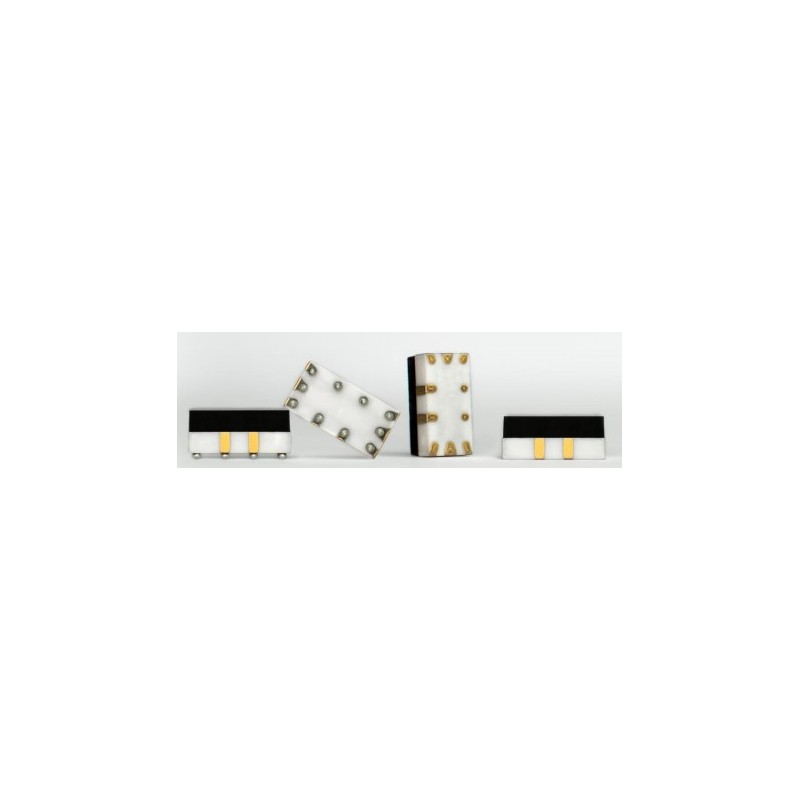

Standex Meder reed relay series CRF

  • miniature surface mount relays in a fully sealed ceramic housing
  • with a low profile, an SPST-NO contact and a high insulation resistance
  • suitable for frequencies of up to 7GHz
  • different contact forms available: CRF_1A (without soldering balls) or CRF_1AS (with soldering balls)
CRF05-1AS, Standex Meder reed relays, SMD housing, CRF series

CRF05-1AS

131500 CRF05-1AS CRF05-1AS Standex Meder reed relay series CRF. miniature surface mount relays in a fully sealed ceramic housing with a low profile, an SPST-NO contact and a high insulation resistance suitable for frequencies of up to 7GHz different contact forms available: CRF_1A (without soldering balls) or CRF_1AS (with soldering balls)

Specifications

manufacturer
Manufacturer's name CRF05-1AS
Switching current, max. [A] 0,5
Switching voltage, max [V] 170
Switching capacity, max. [W] 10
Insulation resistance [Ω] 10^10
Data Sheet

Unit price

7,29 €

Stock: 0
Next incoming goods:
CW 22/2024
1000 units

Further delivery:
CW 32/2024
