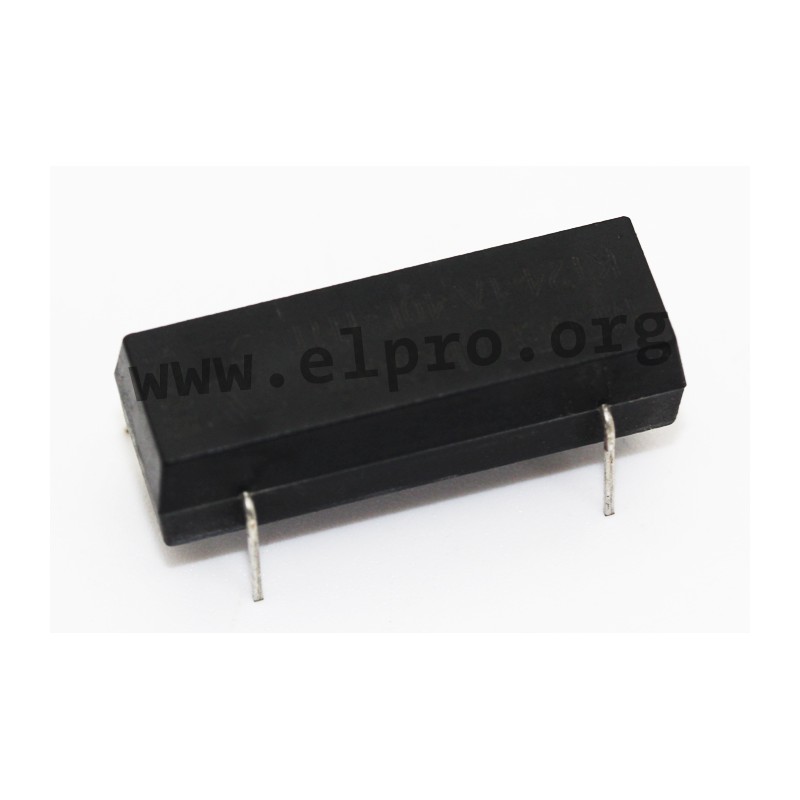

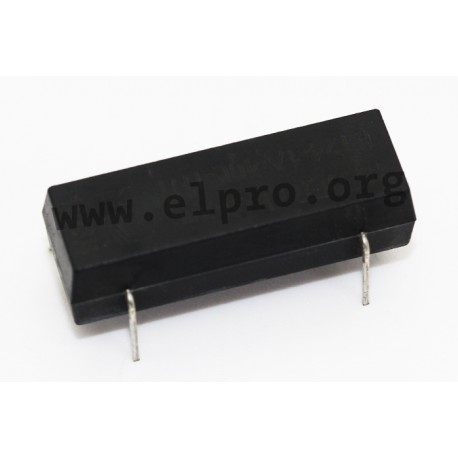

KT 05-1A-40L-THT

reed relays, DIL housing, 1 normally-open

The KT reed relays have the dimensions 30,2x10.2x8,7mm. These high voltage through-hole relays have a high voltage dielectric strength. These relays are AEC-Q200 certified and fully sealed. We are offering the types KT05-1A-40L-THT, KT12-1A-40L-THT and KT24-1A-40L-THT by Standex-Meder.

* contact form: SPST-NO
* switching capacity, max.: 100W
* switching voltage, max.: 1000V
* switching current, max.: 1.0A
* transport current, max.: 2.5A
* contact resistance: 150mΩ
* insulation resistance, typ. (coil/contacts): 1013Ω
* breakdown voltage, min. (coil/contacts): 3.0kV DC
* operate time, max. (incl. bounce): 1.1ms
* release time, max.: 0.1ms
* vibration resistance: 20g
* temperatur range: -40 to +100°C
* soldering temperature/time: 260°C/5s

KT 05-1A-40L-THT

107618 KT 05-1A-40L-THT KT05-1A-40L-THT KT05-1A-40L-THT reed relays, DIL housing, 1 normally-open. The KT reed relays have the dimensions 30,2x10.2x8,7mm. These high voltage through-hole relays have a high voltage dielectric strength. These relays are AEC-Q200 certified and fully sealed. We are offering the types KT05-1A-40L-THT, KT12-1A-40L-THT and KT24-1A-40L-THT by Standex-Meder. * contact form: SPST-NO* switching capacity, max.: 100W* switching voltage, max.: 1000V* switching current, max.: 1.0A* transport current, max.: 2.5A* contact resistance: 150mΩ* insulation resistance, typ. (coil/contacts): 1013Ω* breakdown voltage, min. (coil/contacts): 3.0kV DC* operate time, max. (incl. bounce): 1.1ms* release time, max.: 0.1ms* vibration resistance: 20g* temperatur range: -40 to +100°C* soldering temperature/time: 260°C/5s

Specifications

manufacturer
Manufacturer's name KT05-1A-40L-THT
Coil rated voltage [V DC] 5
Coil resistance [Ω] 80
Response voltage [V] 3,5
Nominal capacity [mW] 313
Data Sheet

Unit price

7,89 €

Stock: 115
Further delivery:
CW 42/2024

Minimum order quantity 15 units or
multiples of 15.
