> Passive elements>Reed contacts / magnets>Reed sensors>Standex Meder reed sensors, 0,5A, MK series>MK06-7-C

Manufacturers

MK06-7-C

Standex Meder reed sensor series MK

  • magnetically operated reed proximity switches with contacts made of ferromagnetic contact blades
  • the contact is closed resp. opened by removing resp. approximating the reed switch and the permanent magnet
  • contact: SPST-NO
  • switching current: 0,5A
  • switched power: 10W

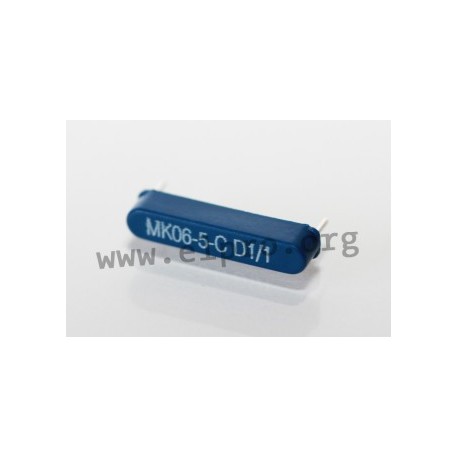

MK06-7-C, Standex Meder reed sensors, 0,5A, MK series

MK06-7-C

251089 MK06-7-C MK06-7-C Standex Meder reed sensor series MK. magnetically operated reed proximity switches with contacts made of ferromagnetic contact blades the contact is closed resp. opened by removing resp. approximating the reed switch and the permanent magnet contact: SPST-NO switching current: 0,5A switched power: 10W

Specifications

manufacturer
Manufacturer's name MK06-7-C
Switching current, max. [A] 0,5
Carry current, max. [A] 1,0
Switching voltage, max [V] 200
Contact resistance, max. [mΩ] 150
Breakdown voltage, min. [V DC] 250
Switching capacity, max. [W] 10
Data Sheet

Unit price

1,05 €

Stock: 0
Further delivery:
CW 05/2026

Minimum order quantity 500 units or
multiples of 500.
