Kristall 611 TC 1mm 250g

Stannol solering wire series Kristall 611 TC

Colophony-free and halogen-activated soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering.

  • melting range: 227°C
  • flux type (J-STD-004): REM1
  • flux content (EN 12224): 2,5%
  • halogen content: 1,1%
  • corrosive effects (DIN EN 61190-1-1): low
  • alloy (Flowtin TC): Sn99,3 Cu0,7
  • flux core: 1 core

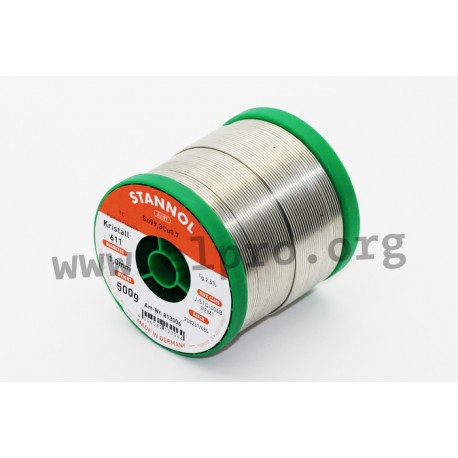

813019, Stannol, 2,5% halogen-activated flux, Fairtin Flowtin TC, Kristall 611 series View larger

Kristall 611 TC 1mm 250g

118446 Kristall 611 TC 1mm 250g 813019 813019 Stannol solering wire series Kristall 611 TC. Colophony-free and halogen-activated soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering. melting range: 227°C flux type (J-STD-004): REM1 flux content (EN 12224): 2,5% halogen content: 1,1% corrosive effects (DIN EN 61190-1-1): low alloy (Flowtin TC): Sn99,3 Cu0,7 flux core: 1 core

Data sheet

manufacturer
manufacturer's name 813019

Download

Data Sheet

20,09 €

stock: 20
