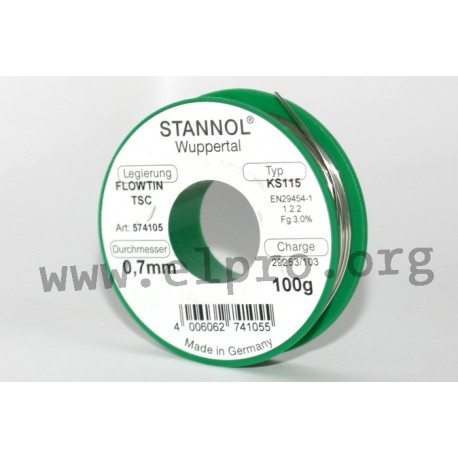

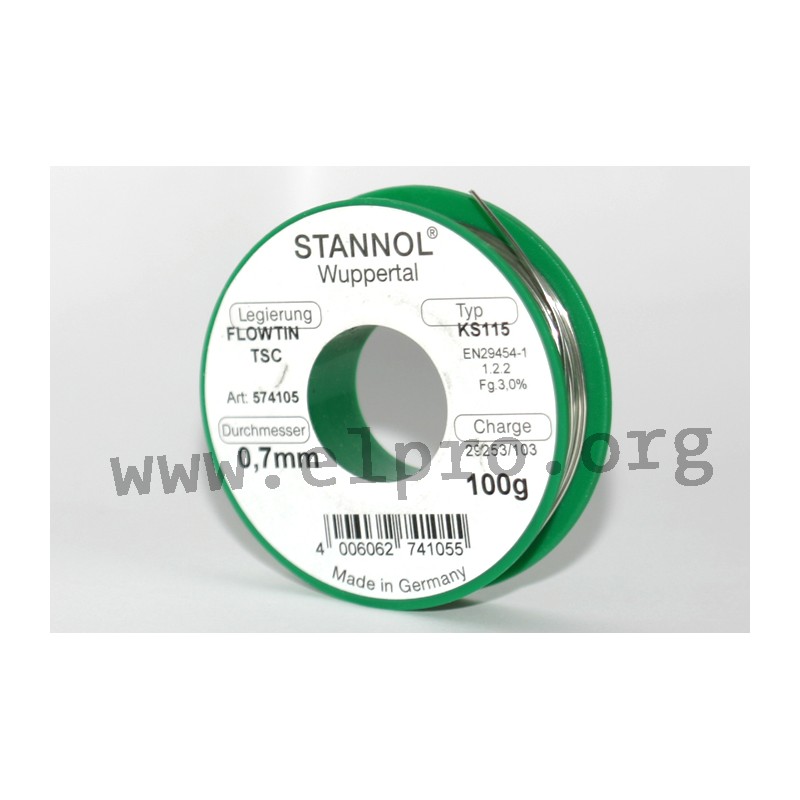

KS115 d 0,7mm 100g

lead-free soldering wires KS 115 TSC by Stannol

• melting point: 217°C
• flux type (IEC 61190-1-3 REM1): 1.2.2.B
• flux content (EN 12224): 3%
• corrosive effects (DIN 8516): none
• alloy (FLOWTIN TSC): Sn95Ag4Cu1/713
• flux core: 1 core
• diameter: 0.7mm
• by Stannol


• halide activated
• developed to cope with the higher process temperatures at lead-free soldering
• very low spitting of flux
• with micro doted alloys for the low solder tip consumption
• high activity, good spread and high residue reliability
• flux residues - can be left on the PCB
• hand and robot soldering
• electronic and electrical industry

Stannol series KS115 TSC View larger

KS115 d 0,7mm 100g

27732 KS115 d 0,7mm 100g 574105 574105 lead-free soldering wires KS 115 TSC by Stannol. • melting point: 217°C• flux type (IEC 61190-1-3 REM1): 1.2.2.B• flux content (EN 12224): 3%• corrosive effects (DIN 8516): none• alloy (FLOWTIN TSC): Sn95Ag4Cu1/713• flux core: 1 core• diameter: 0.7mm• by Stannol • halide activated• developed to cope with the higher process temperatures at lead-free soldering• very low spitting of flux• with micro doted alloys for the low solder tip consumption• high activity, good spread and high residue reliability• flux residues - can be left on the PCB• hand and robot soldering• electronic and electrical industry

Data sheet

manufacturer
manufacturer's name 574105

Download

Data Sheet

10,89 €

stock: 51
