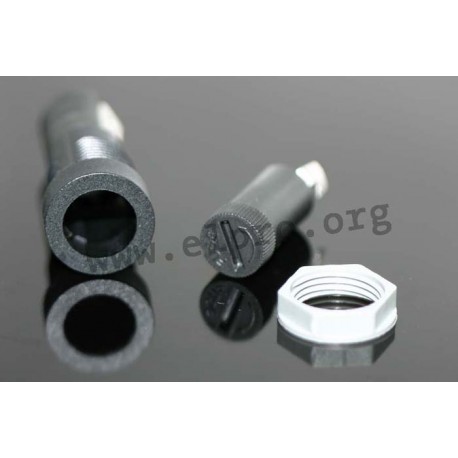

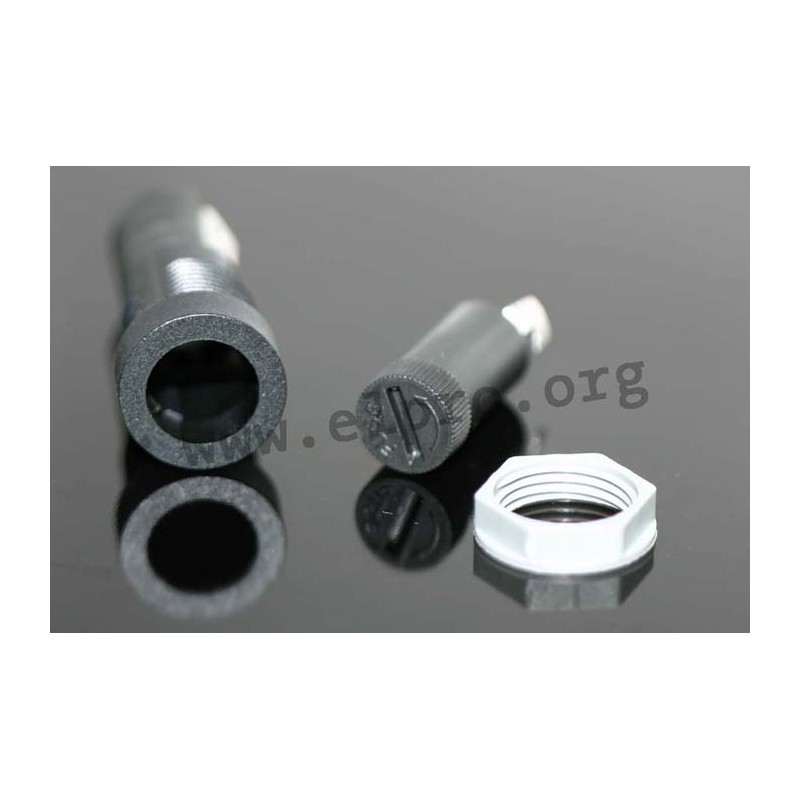

PTF 70

fuse holders

• operating voltage, max.: 250V AC
• rated current: 10A
• contact resistance: <5mΩ
• insulation resistance: >10MΩ
• dielectric strength: >3000V AC/60s
• colour: black
• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)
• bayonet cover
• brass parts with nickel layer, tin-plated
• shock-protection category PC2

PTF 70

27562 PTF 70 PTF/70 PTF/70 fuse holders. • operating voltage, max.: 250V AC• rated current: 10A• contact resistance: &lt;5mΩ• insulation resistance: &gt;10MΩ• dielectric strength: &gt;3000V AC/60s• colour: black• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)• bayonet cover• brass parts with nickel layer, tin-plated• shock-protection category PC2

Specifications

manufacturer
Manufacturer's name PTF/70
Data Sheet

Unit price

0,895 €

Stock: 2135
Next incoming goods:
CW 18/2024
2000 units


Further delivery:
CW 18/2024

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
