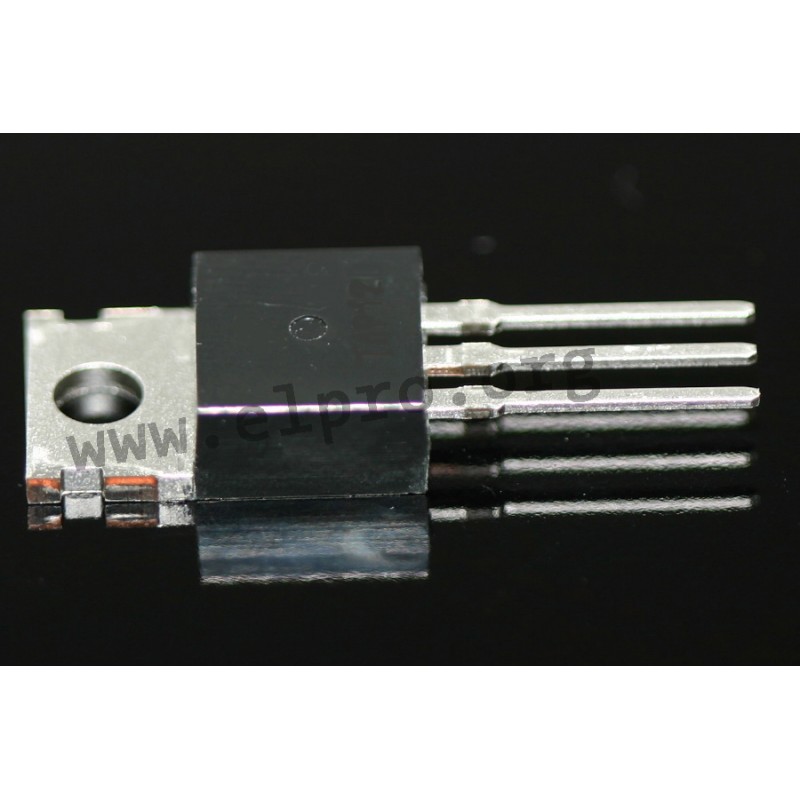

STGP 6 NC 60 HD

STMicroelectronics IGBT series STGF and STGP

Insulated-gate bipolar transistors (IGBTs) in a TO220 housing and with PowerMESH™. We offer various types of this STMicroelectronics series.

TO220

STGP 6 NC 60 HD

106970 STGP 6 NC 60 HD STGP6NC60HD STGP6NC60HD STMicroelectronics IGBT series STGF and STGP. Insulated-gate bipolar transistors (IGBTs) in a TO220 housing and with PowerMESH™. We offer various types of this STMicroelectronics series.

Specifications

manufacturer
Manufacturer's name STGP6NC60HD
Case TO220
Power dissipation [W] 56
Turn-on delay time [ns] 12
Max. collector-emitter breakdown voltage [V] 600
Min. gate threshold voltage [V] 3,75
Max. collector current, pulsed [A] 21
Turn-off delay time [ns] 76
Max. continuous collector current at TC = 25°C 15
Data Sheet

Unit price

0,741 €

Stock: 9
Further delivery:
CW 12/2026

Minimum order quantity 1 to 9 units or multiples of 2.000 plus 0 to 9 .
