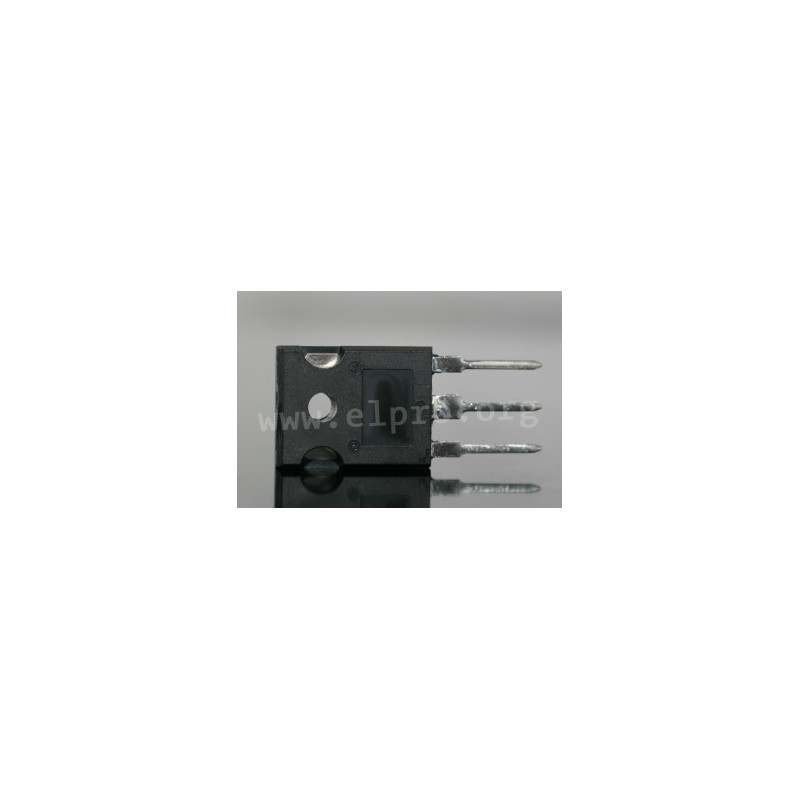

STGW 40 M 120 DF3

STMicroelectronics IGBT series STGW

Insulated-gate bipolar transistors (IGBTs) in a TO247 housing and with PowerMESH™. We offer various types of this STMicroelectronics series.

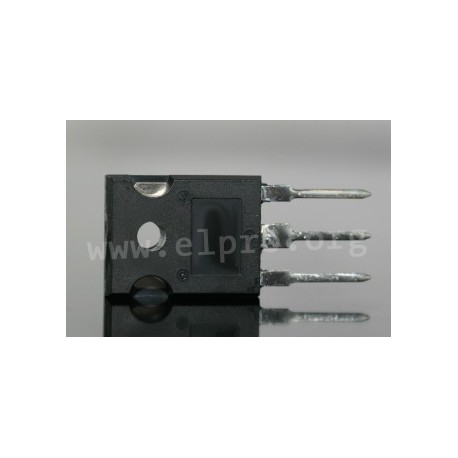

STGW40M120DF3, STMicroelectronics IGBTs, TO247 housing, STGW series

STGW 40 M 120 DF3

106986 STGW 40 M 120 DF3 STGW40M120DF3 STGW40M120DF3 STMicroelectronics IGBT series STGW. Insulated-gate bipolar transistors (IGBTs) in a TO247 housing and with PowerMESH™. We offer various types of this STMicroelectronics series.

Specifications

manufacturer
Manufacturer's name STGW40M120DF3
Case TO247
Power dissipation [W] 468
Turn-on delay time [ns] 35
Max. collector-emitter breakdown voltage [V] 1200
Min. gate threshold voltage [V] 5
Max. collector current, pulsed [A] 160
Turn-off delay time [ns] 140
Max. continuous collector current at TC = 25°C 80
Data Sheet

Unit price

4,39 €

Stock: 0
Further delivery:
CW 13/2026

Minimum order quantity 600 units or
multiples of 600.
