DP201A2123HBL.S.GN

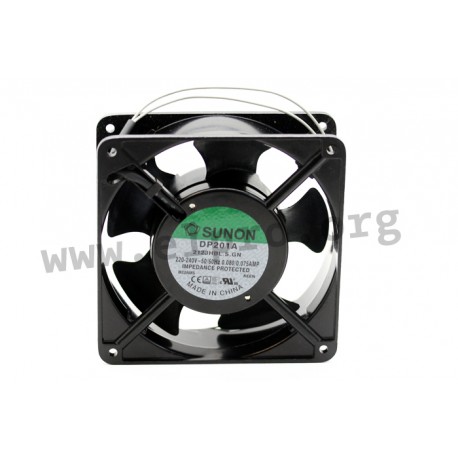

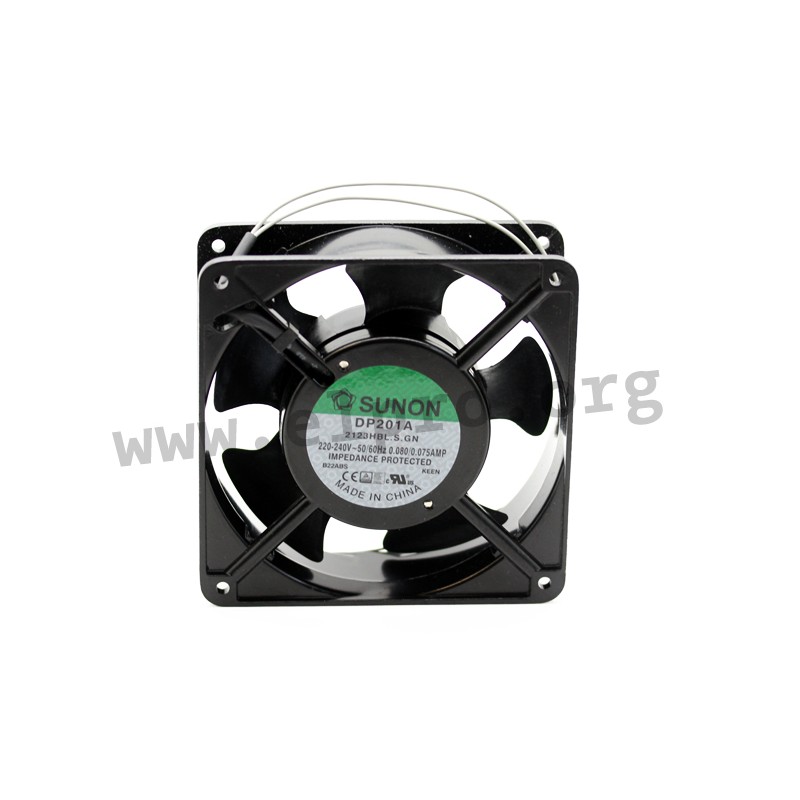

Sunon fan 230V and 115V AC series DP/A/SF/SP

AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

DP201A2123HBL.S.GN

234638 DP201A2123HBL.S.GN DP201A-2123HBL.S.GN DP201A-2123HBL.S.GN Sunon fan 230V and 115V AC series DP/A/SF/SP. AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

Specifications

manufacturer
Manufacturer's name DP201A-2123H...
Current [A] 0,069
Bearing ball bearing
Dimensions 120x120x38mm
Nominal voltage [V] 230V AC
Electric power [W] 10,8
Noise [dBA] 44
Air performance [m3/h] 144,38
Number of revolutions [U/min] 2550
Data Sheet

Unit price

12,99 €

Stock: 63
Next incoming goods:
CW 29/2024
200 units


Further delivery:
CW 32/2024
