DP 203A 2123LST

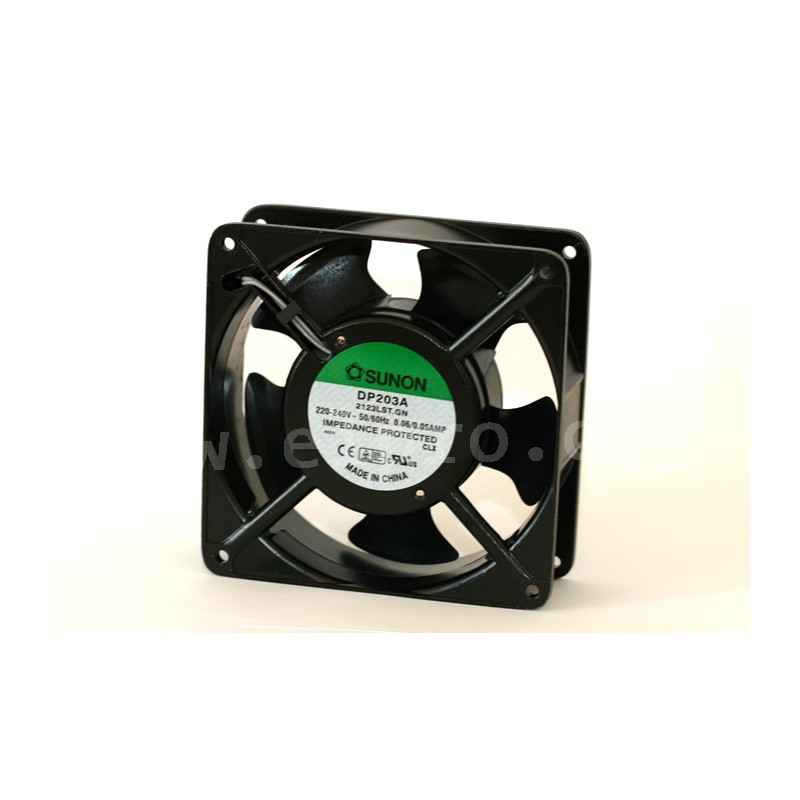

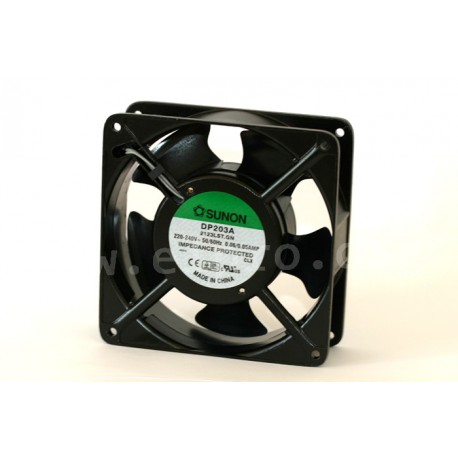

Sunon fan 230V and 115V AC series DP/A/SF/SP

AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

DP 203A 2123LST

29646 DP 203A 2123LST DP203A-2123LST.GN DP203A-2123LST.GN Sunon fan 230V and 115V AC series DP/A/SF/SP. AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

Specifications

manufacturer
Manufacturer's name DP203A-2123LST.GN
Current [A] 0,07
Bearing sleeve bearing
Dimensions 120x120x38mm
Nominal voltage [V] 230V AC
Electric power [W] 14
Noise [dBA] 36
Air performance [m3/h] 93,42
Number of revolutions [U/min] 1500
Data Sheet

Unit price

7,99 €

Stock: 1104
Further delivery:
CW 32/2024
