EE50101S1-1000U-999

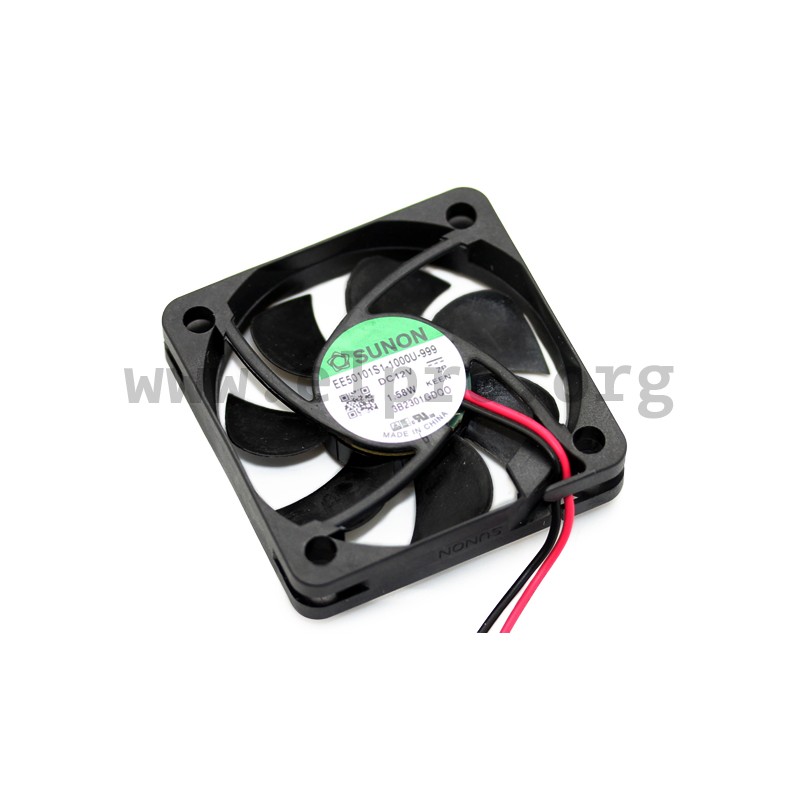

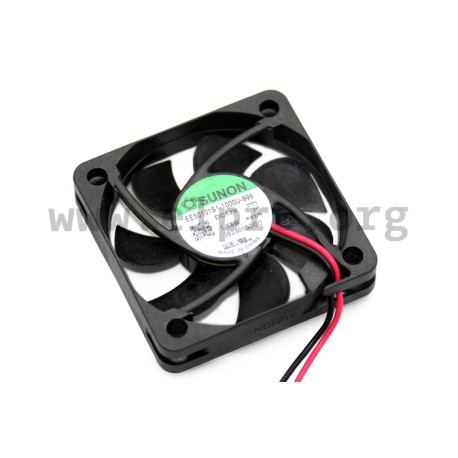

Sunon fan 12V DC series EE and MF

DC fans with 4 poles are equipped with a magnetic levitation system and vapo bearing for optimal performance. These fans feature impellers and frames made of thermoplastic (UL94V-0). The connection is established by stranded wires, while the compact dimensions measure at 50x50x10mm. Rated voltage operates on 12V DC power for efficient use in various applications.

EE50101S1-1000U-999

236510 EE50101S1-1000U-999 EE50101S1-1000U-999 Sunon fan 12V DC series EE and MF. DC fans with 4 poles are equipped with a magnetic levitation system and vapo bearing for optimal performance. These fans feature impellers and frames made of thermoplastic (UL94V-0). The connection is established by stranded wires, while the compact dimensions measure at 50x50x10mm. Rated voltage operates on 12V DC power for efficient use in various applications.

Specifications

manufacturer
Manufacturer's name EE50101S1-10...
Current [A] 0,09
Dimensions 50x50x10mm
Nominal voltage [V] 12
Electric power [W] 1,08
Noise [dBA] 30,7
Air performance [m3/h] 22,08
Number of revolutions [U/min] 5700
Data Sheet

Unit price

1,68 €

Stock: 983
Further delivery:
CW 32/2024
