1,5 KE A 12 V

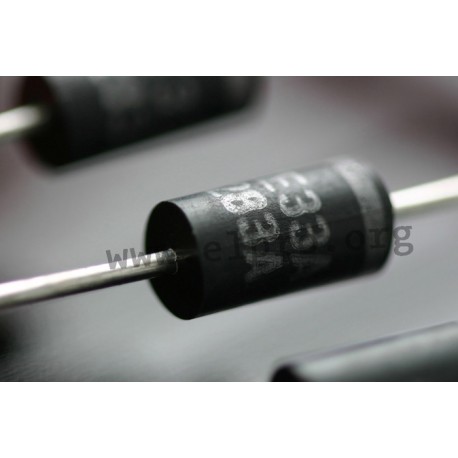

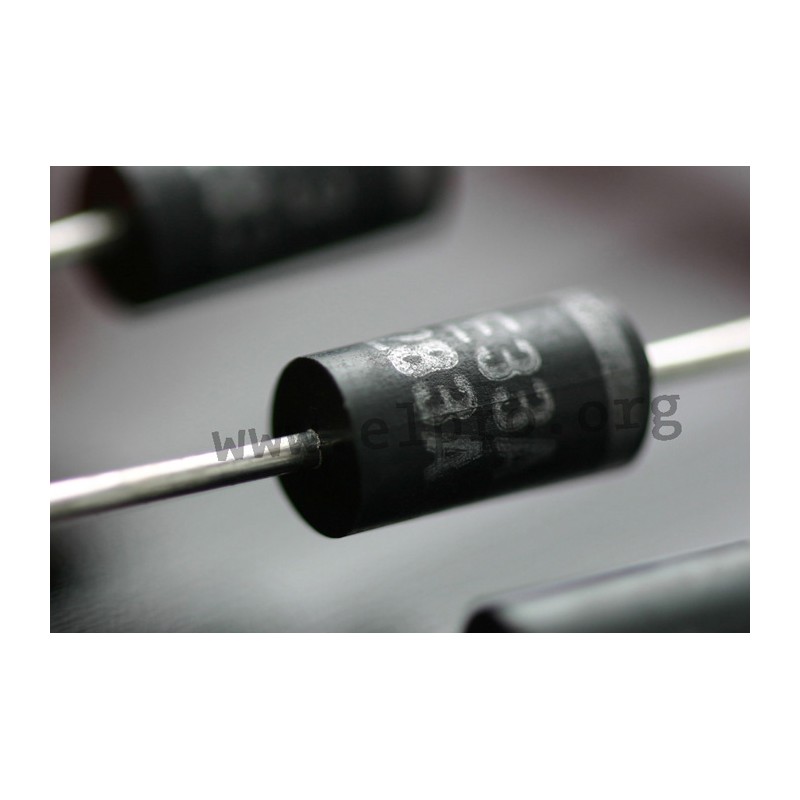

Taiwan Semiconductor TVS diodes series 1.5KE

Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series.

  • power dissipation: 1500W
  • max. solderability: 250°C/10s

1,5 KE A 12 V, Taiwan Semiconductor transient voltage suppression diodes, 1500W, 1.5KE series

1,5 KE A 12 V

40 1,5 KE A 12 V 1,5 KE A 12 V Taiwan Semiconductor TVS diodes series 1.5KE. Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series. power dissipation: 1500W max. solderability: 250°C/10s

Discontinued items. Only remainder of stock available.

Specifications

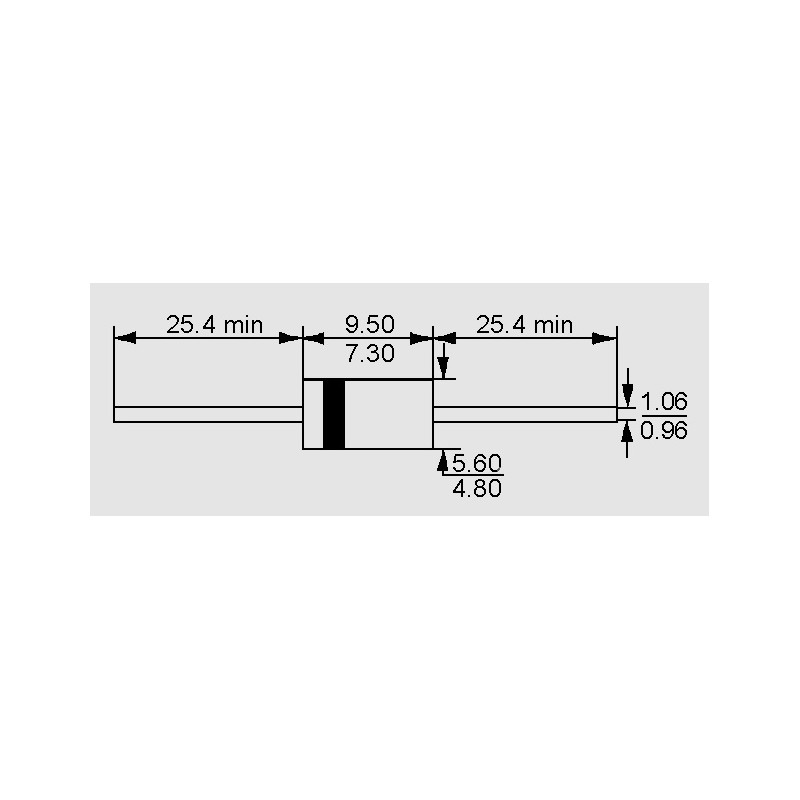

Case DO201
Reverse current [µA] 5
Stand-off voltage [V] 10,1
Test current [mA] 1
Breakdown voltage [V] 12
Data Sheet

Unit price

0,19 €

Stock: 33
