1,5 KE A 15 V

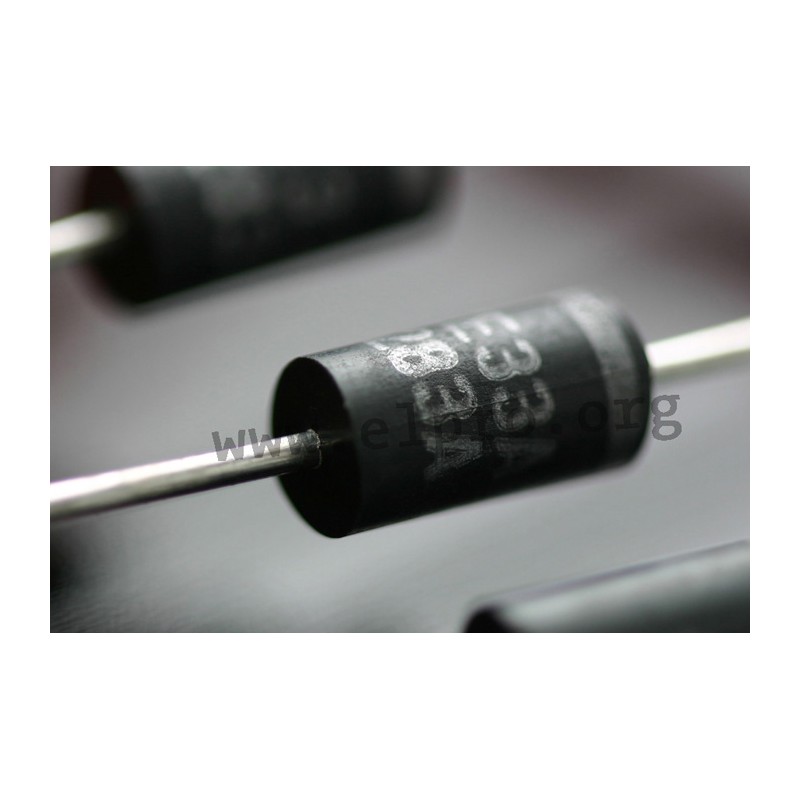

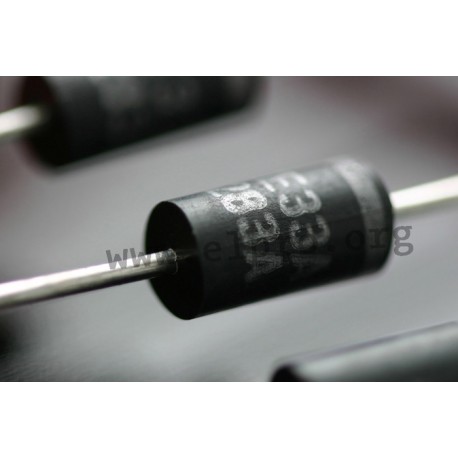

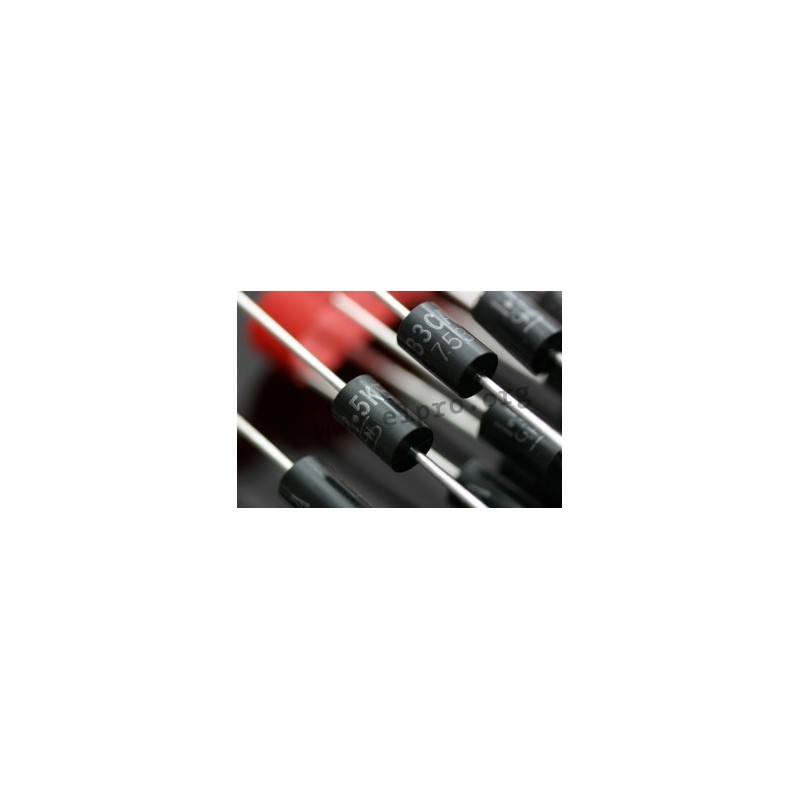

Taiwan Semiconductor TVS diodes series 1.5KE

Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series.

  • power dissipation: 1500W
  • max. solderability: 250°C/10s

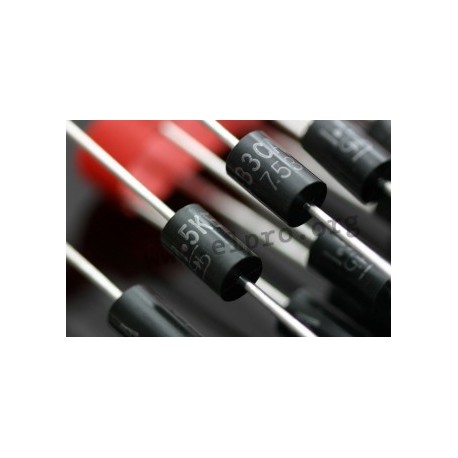

1.5KE15A, Taiwan Semiconductor transient voltage suppression diodes, 1500W, 1.5KE series

1,5 KE A 15 V

42 1,5 KE A 15 V 1.5KE15A 1.5KE15A Taiwan Semiconductor TVS diodes series 1.5KE. Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series. power dissipation: 1500W max. solderability: 250°C/10s

Specifications

manufacturer
Manufacturer's name 1.5KE15A

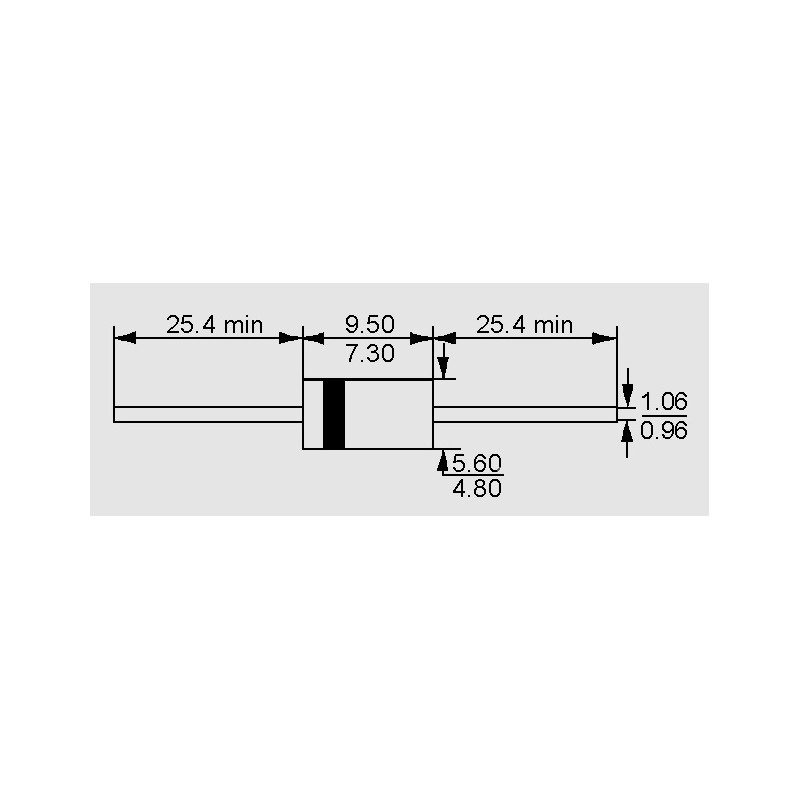

Case DO201
Reverse current [µA] 5
Stand-off voltage [V] 12,8
Test current [mA] 1
Breakdown voltage [V] 14,3
Max. clamping voltage [V] 21,2
Reverse peak pulse current [A] 74
Data Sheet

Unit price

0,152 €

Stock: 5588
Further delivery:
CW 05/2027

Minimum order quantity 1 to 13 units or multiples of 25 plus 0 to 13 .
