1,5 KE A 33 V

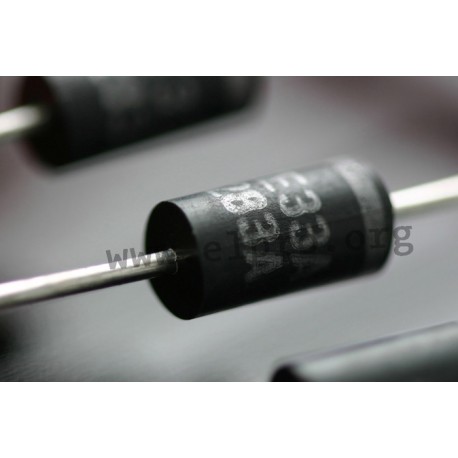

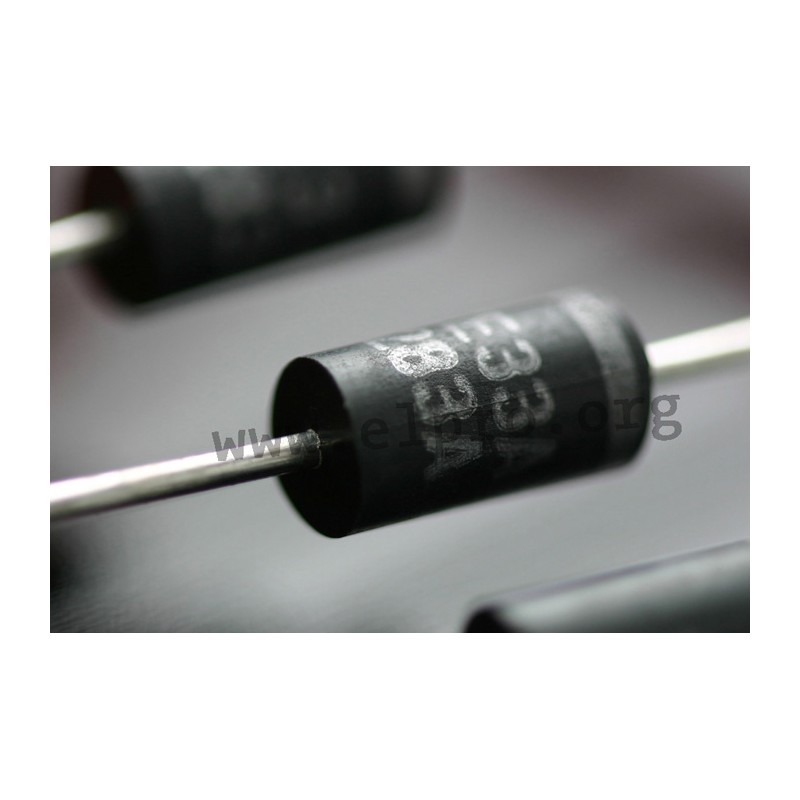

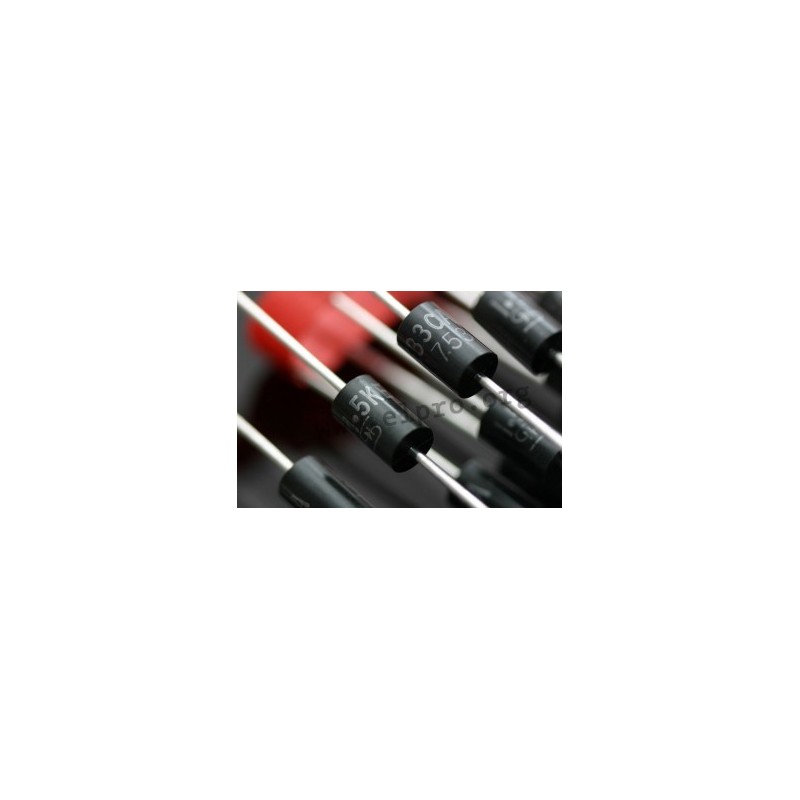

Taiwan Semiconductor TVS diodes series 1.5KE

Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series.

  • power dissipation: 1500W
  • max. solderability: 250°C/10s

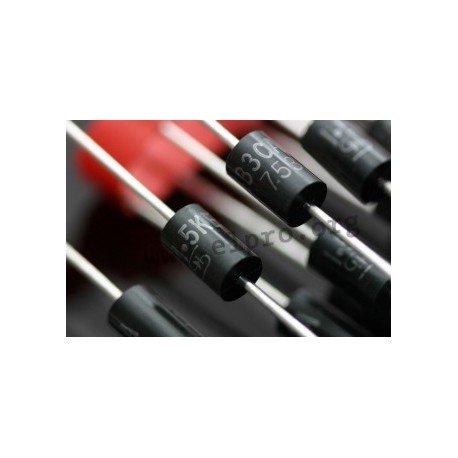

1.5KE33A, Taiwan Semiconductor transient voltage suppression diodes, 1500W, 1.5KE series

1,5 KE A 33 V

53 1,5 KE A 33 V 1.5KE33A 1.5KE33A Taiwan Semiconductor TVS diodes series 1.5KE. Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series. power dissipation: 1500W max. solderability: 250°C/10s

Specifications

manufacturer
Manufacturer's name 1.5KE33A

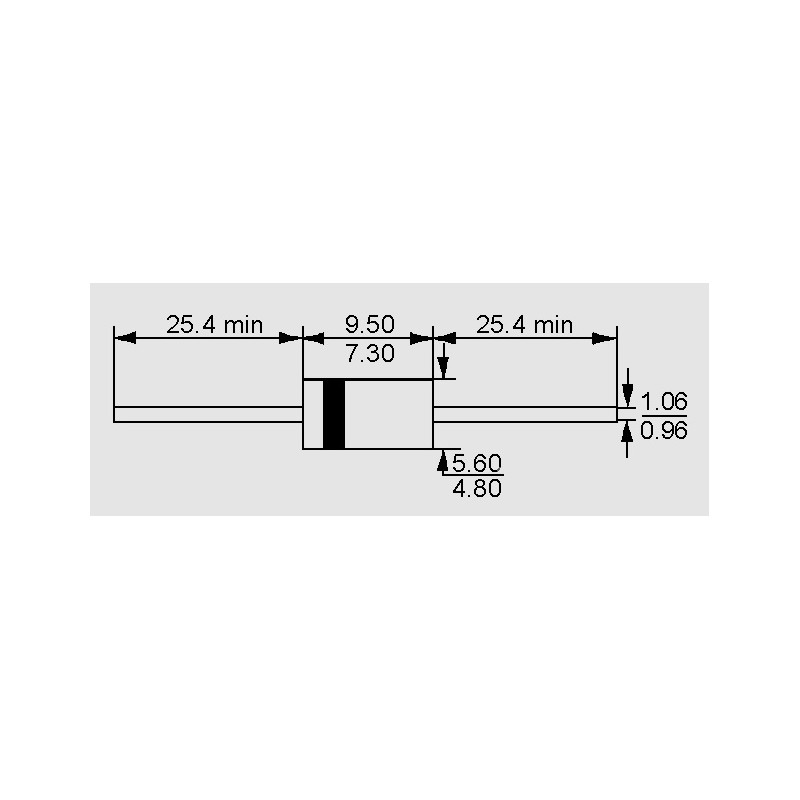

Case DO201
Reverse current [µA] 5
Stand-off voltage [V] 28,2
Test current [mA] 1
Breakdown voltage [V] 31,4
Max. clamping voltage [V] 45,7
Reverse peak pulse current [A] 34
Data Sheet

Unit price

0,152 €

Stock: 8240
Further delivery:
CW 05/2027

Minimum order quantity 1 to 15 units or multiples of 25 plus 0 to 15 .
