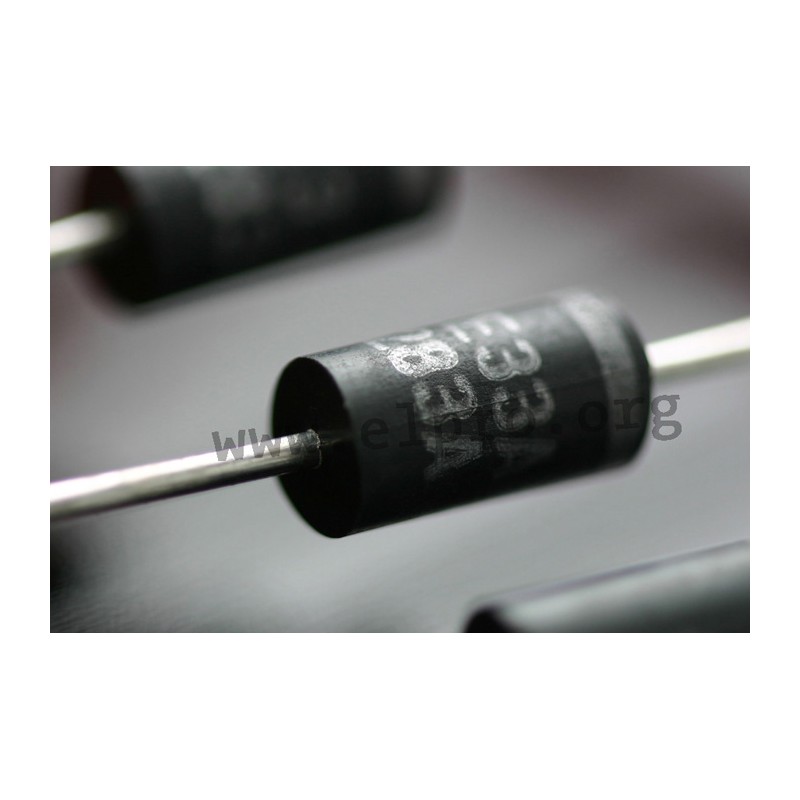

Manufacturers

1,5 KE A 400 V

TVS diodes, 1500W

• unipolar
• taped
• housing: DO201
• plastic conforms to UL94V-0
• max. solderability 250°C/10s

1,5 KE A 400 V

59 1,5 KE A 400 V 1.5KE400A 1.5KE400A TVS diodes, 1500W. • unipolar• taped• housing: DO201• plastic conforms to UL94V-0• max. solderability 250°C/10s

Specifications

manufacturer
Manufacturer's name 1.5KE400A

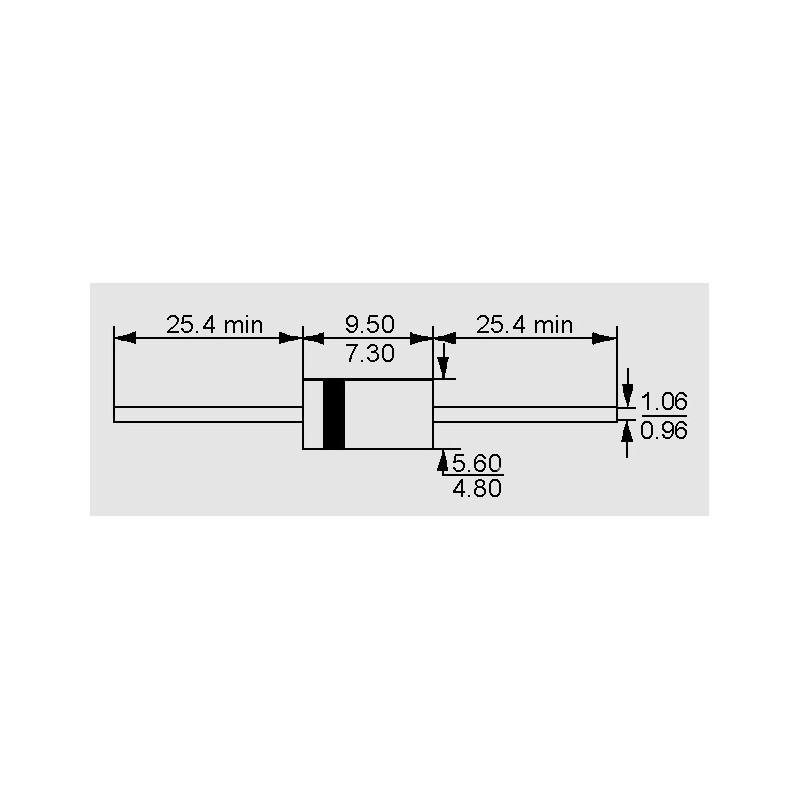

Case DO201
Reverse current [µA] 5
Stand-off voltage [V] 342
Test current [mA] 1
Breakdown voltage [V] 380
Reverse peak pulse current [A] 2,8
Max. clamping voltage [V] 548
Data Sheet

Unit price

0,394 €

Stock: 9003

Minimum order quantity 1 to 3 units or multiples of 25 plus 0 to 3 .
