1,5 KE CA 33 V

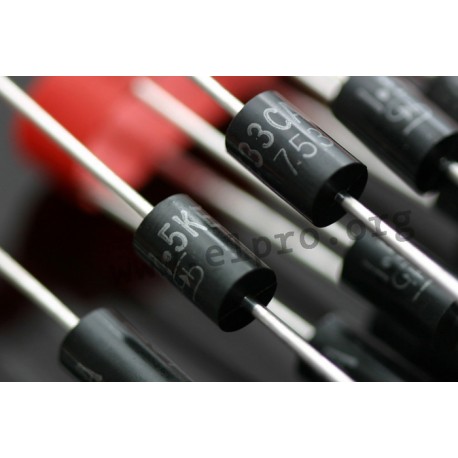

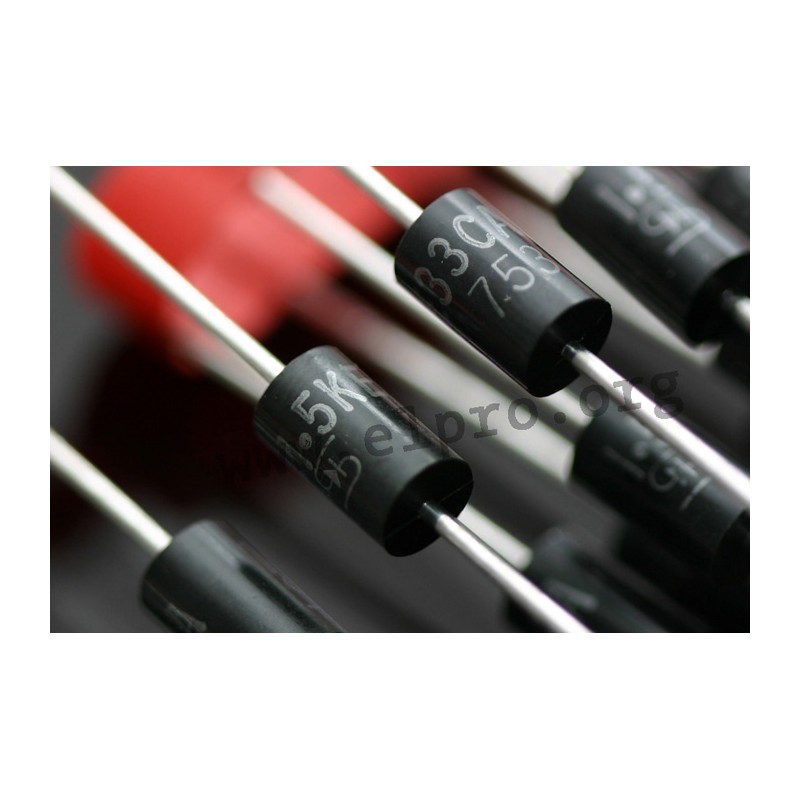

Taiwan Semiconductor TVS diodes series 1.5KE

Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series.

  • power dissipation: 1500W
  • max. solderability: 250°C/10s

1.5KE33CA, Taiwan Semiconductor transient voltage suppression diodes, 1500W, 1.5KE series

1,5 KE CA 33 V

91 1,5 KE CA 33 V 1.5KE33CA 1.5KE33CA Taiwan Semiconductor TVS diodes series 1.5KE. Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series. power dissipation: 1500W max. solderability: 250°C/10s

Specifications

manufacturer
Manufacturer's name 1.5KE33CA

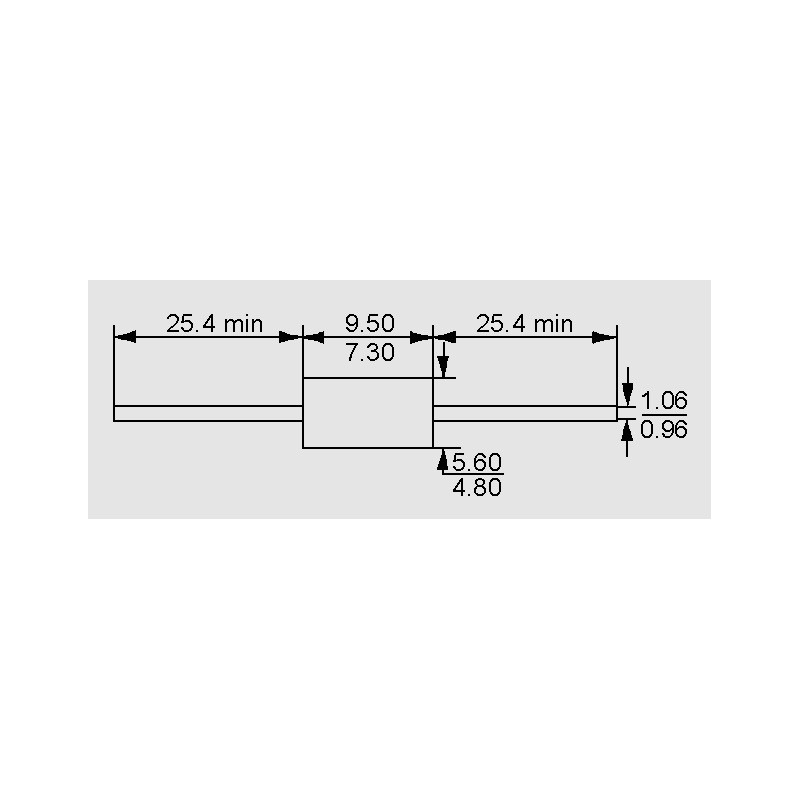

Case DO201
Reverse current [µA] 5
Stand-off voltage [V] 28,2
Breakdown voltage [V] 31,4
Test current [mA] 1
Max. clamping voltage [V] 45,7
Reverse peak pulse current [A] 34
Data Sheet

Unit price

0,22 €

Stock: 9825
Further delivery:
CW 05/2027

Minimum order quantity 25 units or
multiples of 25.
