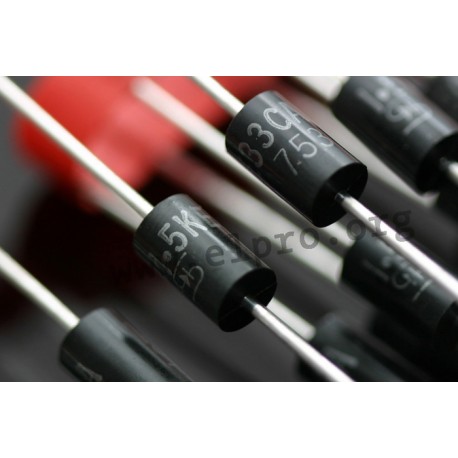

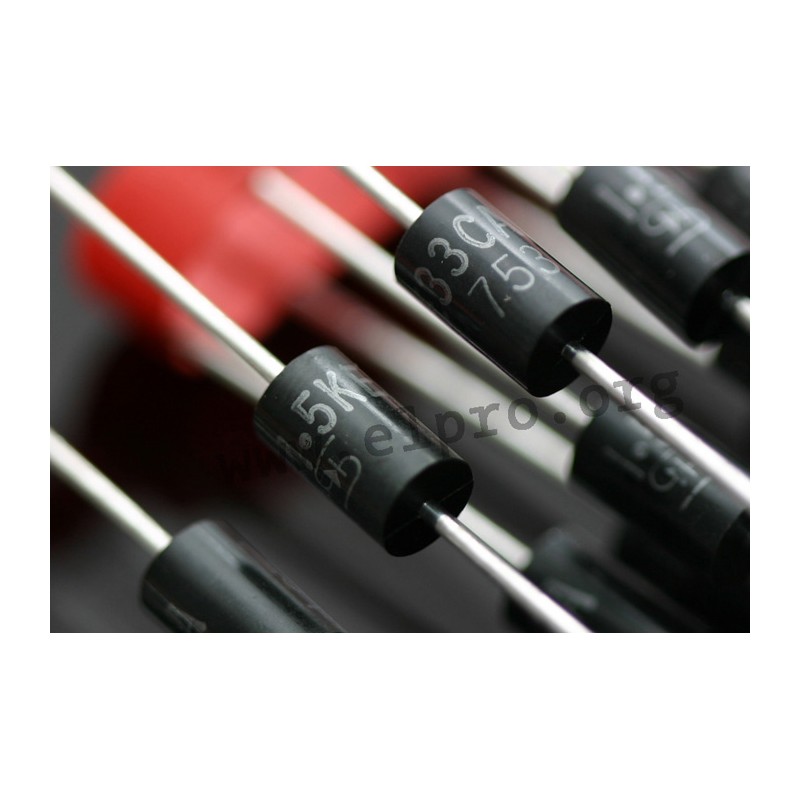

1,5 KE CA 400 V

TVS diodes, 1500W

• bipolar
• taped
• housing: DO201
• plastic conforms to UL94V-0
• max. solderability 250°C/10s

1,5 KE CA 400 V

97 1,5 KE CA 400 V 1.5KE400CA 1.5KE400CA TVS diodes, 1500W. • bipolar• taped• housing: DO201• plastic conforms to UL94V-0• max. solderability 250°C/10s

Specifications

manufacturer
Manufacturer's name 1.5KE400CA

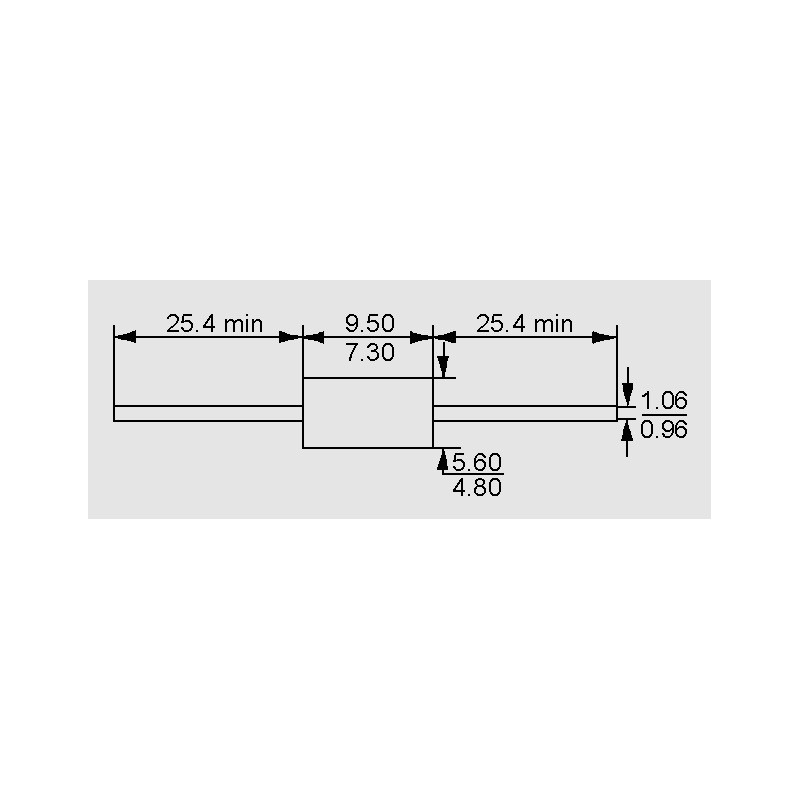

Case DO201
Reverse current [µA] 5
Stand-off voltage [V] 352
Breakdown voltage [V] 380
Test current [mA] 1
Max. clamping voltage [V] 548
Reverse peak pulse current [A] 2,8
Data Sheet

Unit price

0,45 €

Stock: 13865

Minimum order quantity 1 to 15 units or multiples of 25 plus 0 to 15 .
