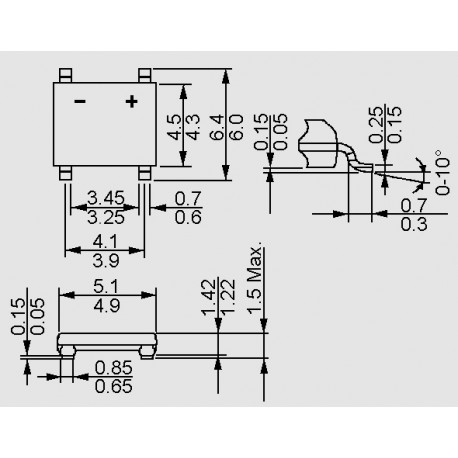

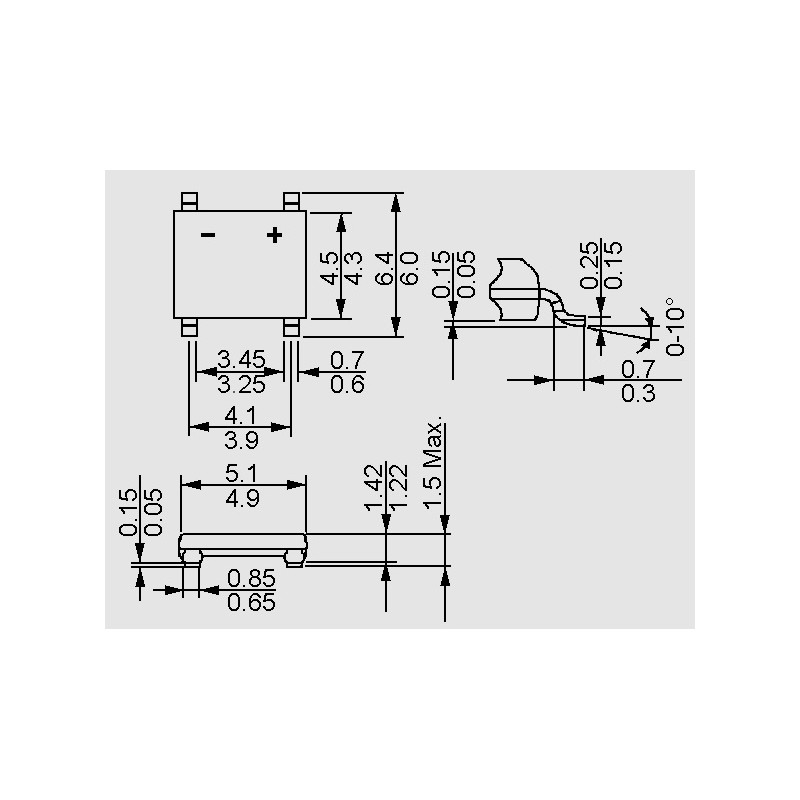

ABS 15 M

Taiwan Semiconductor SMD rectifier series ABS and DBLS15_G

  • SMD bridge rectifiers
  • glass passivated
  • suitable for direct PCB mounting
  • operating temperature: -55 to +150°C
ABS 15 M

ABS 15 M

45956 ABS 15 M ABS15M ABS15M Taiwan Semiconductor SMD rectifier series ABS and DBLS15_G. SMD bridge rectifiers glass passivated  suitable for direct PCB mounting operating temperature: -55 to +150°C

Specifications

manufacturer
Manufacturer's name ABS15M
Case Thin SMD
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1
(Max.) average forward (rectified) current [A] 1,5
Reverse current [µA] 5
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

0,161 €

Stock: 9700
Further delivery:
CW 27/2024

Minimum order quantity 100 units or
multiples of 100.
