> Semiconductors>Rectifiers>SMD housing>Taiwan Semiconductor SMD rectifiers, 2A, DBLS series>DBLS 208 G

Manufacturers

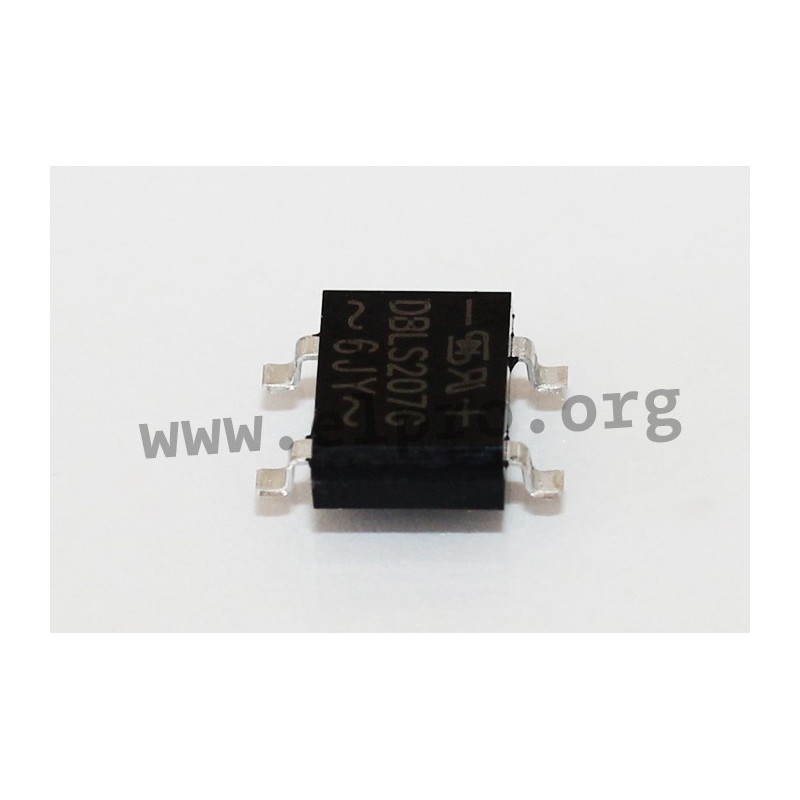

DBLS 208 G

Taiwan Semiconductor SMD rectifier series DBLS

  • SMD bridge rectifiers
  • suitable for direct PCB mounting
  • glass passivated
  • solderable according to MIL-STD-202, Meth. 208
  • solderability: max. 260°C/10s
  • operating temperature: -55 to +150°C

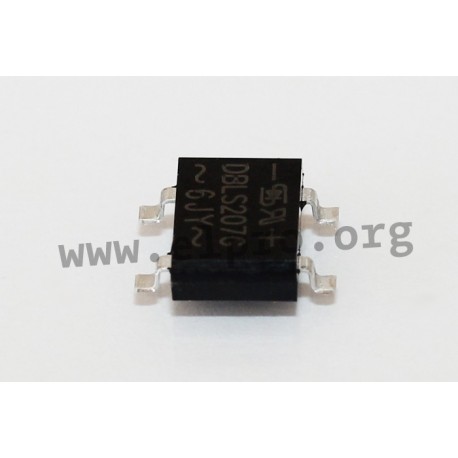

DBLS208G RD, Taiwan Semiconductor SMD rectifiers, 2A, DBLS series

DBLS 208 G

240621 DBLS 208 G DBLS208G DBLS208G Taiwan Semiconductor SMD rectifier series DBLS. SMD bridge rectifiers  suitable for direct PCB mounting  glass passivated solderable according to MIL-STD-202, Meth. 208 solderability: max. 260°C/10s operating temperature: -55 to +150°C

Specifications

manufacturer
Manufacturer's name DBLS208G
Case SMD
(Max.) peak recurrent reverse voltage [V] 1200
Forward voltage [V] 1,3
(Max.) average forward (rectified) current [A] 2
(Max.) RMS voltage [V] 840
Data Sheet

Unit price

0,255 €

Stock: 2350
Further delivery:
CW 08/2026

Minimum order quantity 25 units or
multiples of 25.
