T15JA05G-K

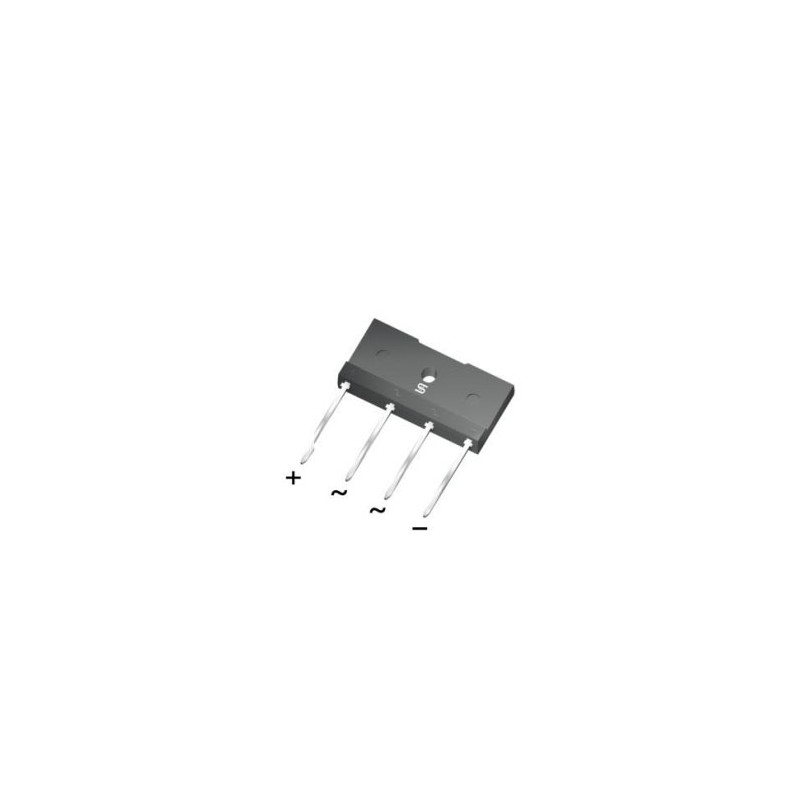

Taiwan Semiconductor flat rectifier series GBU15 and T15JA

  • bridge rectifiers in an In-Line housing with a circular hole
  • 5/5mm (GBU15_) resp. 7,5/10mm pin spacing (T15JA_)
  • glass passivated
  • comply with IEC61249-2-21
  • suitable for PCB mounting
  • forward current: 15A

T15JA05G-K

242028 T15JA05G-K T15JA05G-K Taiwan Semiconductor flat rectifier series GBU15 and T15JA. bridge rectifiers in an In-Line housing with a circular hole 5/5mm (GBU15_) resp. 7,5/10mm pin spacing (T15JA_) glass passivated comply with IEC61249-2-21 suitable for PCB mounting forward current: 15A

Specifications

manufacturer
Manufacturer's name T15JA05G-K
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 15
Reverse current [µA] 5
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

1,54 €

Stock: 1500
Further delivery:
CW 29/2024

Minimum order quantity 15 units or
multiples of 15.
