GBU 602 C2G

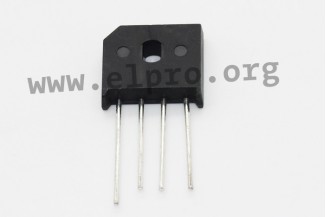

Taiwan Semiconductor flat rectifier series KBU/GBU/TS6P

  • bridge rectifiers
  • in an In-Line housing with an elongated hole
  • pin spacing 5/5mm resp. 7,5/10mm (TS 6P_)
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • operating temperature: -55 to +150°C
  • solderability: max. 260°C/10s
  • forward current: 6A

GBU 602 C2G GBU602

GBU 602 C2G

45921 GBU 602 C2G GBU602 GBU602 Taiwan Semiconductor flat rectifier series KBU/GBU/TS6P. bridge rectifiers  in an In-Line housing with an elongated hole pin spacing 5/5mm resp. 7,5/10mm (TS 6P_) comply with UL94V-0 as well as MIL-STD-202, Meth. 208 operating temperature: -55 to +150°C solderability: max. 260°C/10s forward current: 6A

Specifications

manufacturer
Manufacturer's name GBU602
Case In-Line
(Max.) peak recurrent reverse voltage [V] 100
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 6
(Max.) RMS voltage [V] 70
Data Sheet

Unit price

0,568 €

Stock: 950
Further delivery:
CW 25/2026

Minimum order quantity 10 units or
multiples of 10.
