SM 4001 SMD

Taiwan Semiconductor SMD Si-rectifier diode series LL40

  • SMD Si-rectifier diodes
  • in a Melf housing
  • glasspassivated
  • comply with UL94V-0
  • solderability: 260°C/10s
  • forward current: 1A

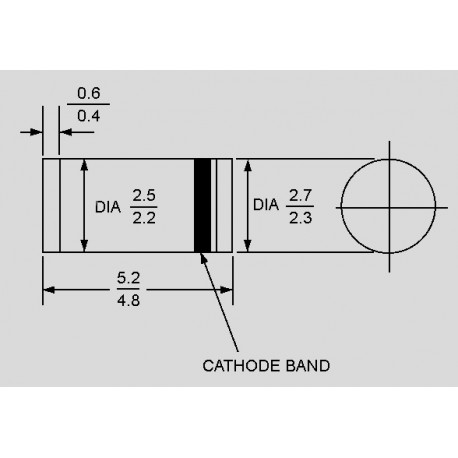

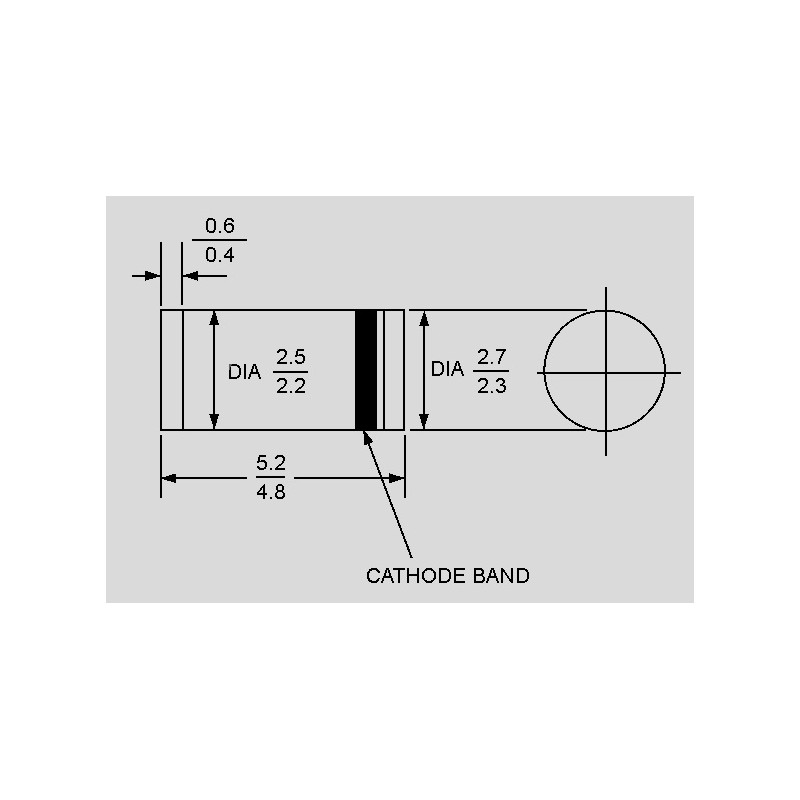

Melf View larger

SM 4001 SMD

610 SM 4001 SMD LL4001G L0G LL4001G L0G Taiwan Semiconductor SMD Si-rectifier diode series LL40. SMD Si-rectifier diodes in a Melf housing glasspassivated comply with UL94V-0 solderability: 260°C/10s forward current: 1A

Data sheet

manufacturer
manufacturer's name LL4001G L0G
case Melf
operating temperature range [°C] -65...+150
(max.) peak recurrent reverse voltage [V] 50
forward voltage [V] 1,1
reverse current [µA] 5
(max.) average forward (rectified) current [A] 1

Download

Data Sheet

0,72 €

Volume discounts

100 pcs. / 0,057 €

stock: 11467
Next incoming:
CW:40/2021
30000 pieces
