SM 4002 SMD

Taiwan Semiconductor SMD Si-rectifier diode series LL40

  • SMD Si-rectifier diodes
  • in a Melf housing
  • glasspassivated
  • comply with UL94V-0
  • solderability: 260°C/10s
  • forward current: 1A

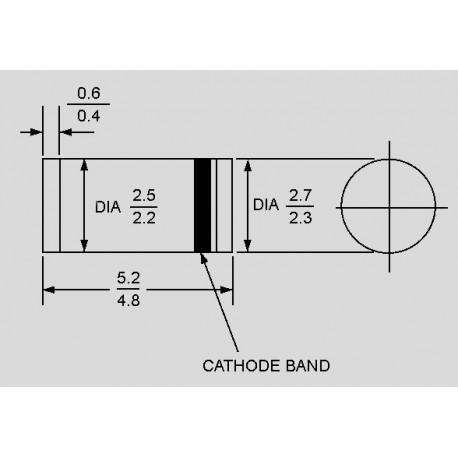

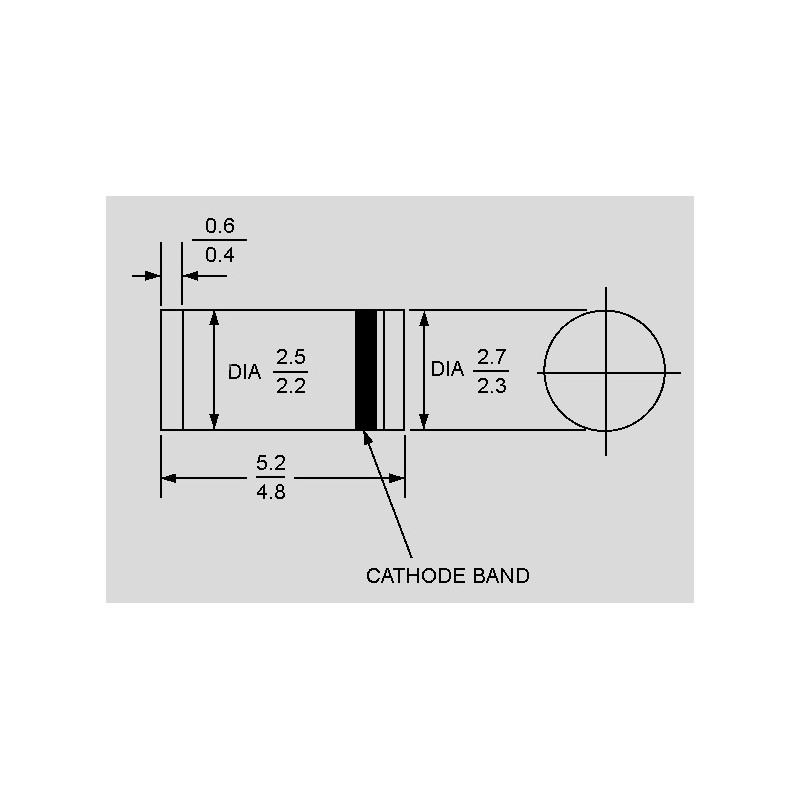

Melf View larger

SM 4002 SMD

611 SM 4002 SMD SM 4002 SMD Taiwan Semiconductor SMD Si-rectifier diode series LL40. SMD Si-rectifier diodes in a Melf housing glasspassivated comply with UL94V-0 solderability: 260°C/10s forward current: 1A

Discontinued items. Only remainder of stock available.

Data sheet

case Melf
operating temperature range [°C] -65...+150
(max.) peak recurrent reverse voltage [V] 100
forward voltage [V] 1,1
reverse current [µA] 5
(max.) average forward (rectified) current [A] 1

Download

Data Sheet

0,03 €

stock: 3
