P 4 KE A 10 V

Taiwan Semiconductor transient voltage suppression diode series P4KE A

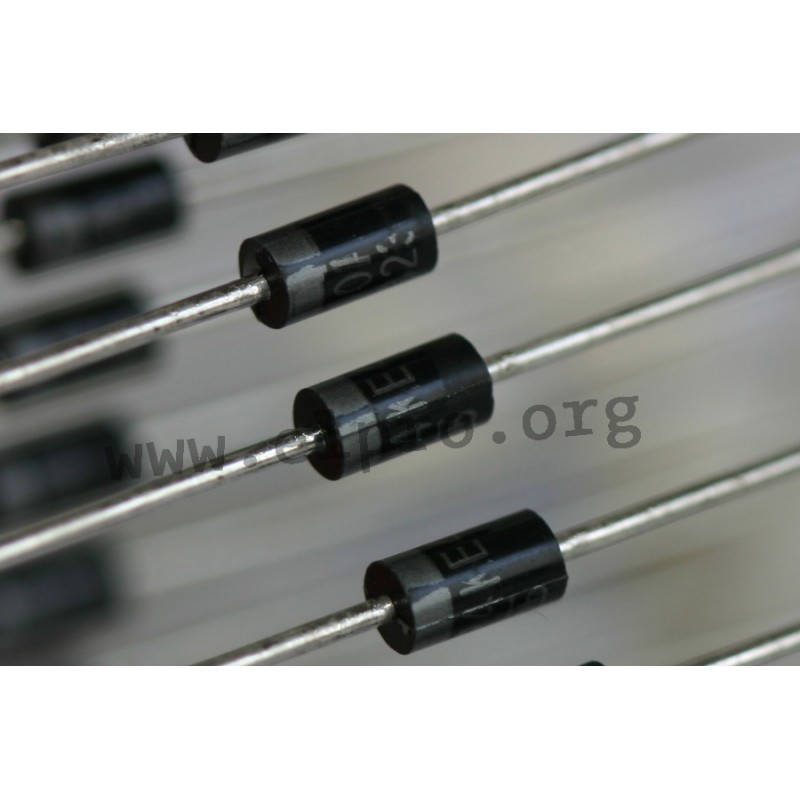

TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series.

  • peak power dissipation: 400W
  • P 4 KE A_: unipolar
  • P 4 KE CA_: bipolar
  • taped
P4KE10A, Taiwan Semiconductor transient voltage suppression diodes, 400W, P4KE A series

P 4 KE A 10 V

235820 P 4 KE A 10 V P4KE10A P4KE10A Taiwan Semiconductor transient voltage suppression diode series P4KE A. TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series. peak power dissipation: 400W P 4 KE A_: unipolar P 4 KE CA_: bipolar taped

Specifications

manufacturer
Manufacturer's name P4KE10A
Reverse current [µA] 10
Stand-off voltage [V] 8,55
Breakdown voltage [V] 9,5
Max. clamping voltage [V] 14,5
Reverse peak pulse current [A] 29
Data Sheet

Unit price

0,075 €

Stock: 4850
Further delivery:
CW 09/2027

Minimum order quantity 50 units or
multiples of 50.
