> Semiconductors>Diodes>Transient voltage suppressor diodes>Taiwan Semiconductor transient voltage suppression diodes, 400W, P4KE A series>P 4 KE A 27 V

Manufacturers

P 4 KE A 27 V

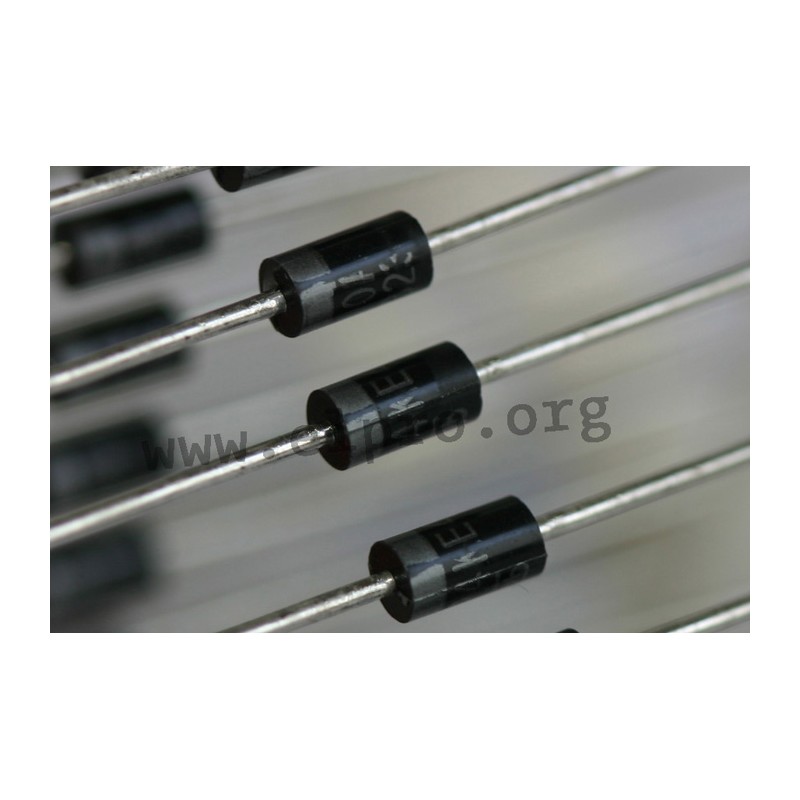

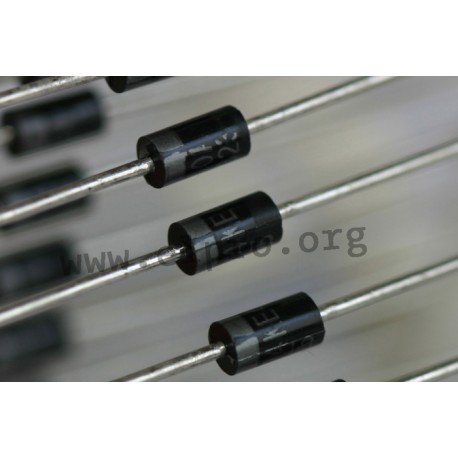

Taiwan Semiconductor transient voltage suppression diode series P4KE A

TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series.

  • peak power dissipation: 400W
  • P 4 KE A_: unipolar
  • P 4 KE CA_: bipolar
  • taped
P4KE27A, Taiwan Semiconductor transient voltage suppression diodes, 400W, P4KE A series

P 4 KE A 27 V

425 P 4 KE A 27 V P4KE27A P4KE27A Taiwan Semiconductor transient voltage suppression diode series P4KE A. TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series. peak power dissipation: 400W P 4 KE A_: unipolar P 4 KE CA_: bipolar taped

Specifications

manufacturer
Manufacturer's name P4KE27A

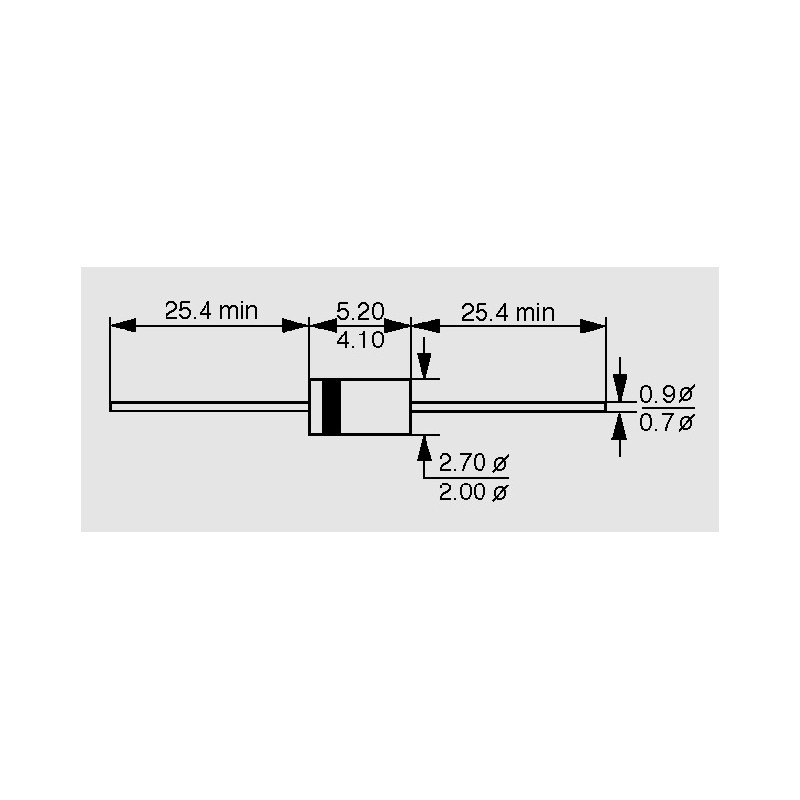

Case DO41
Reverse current [µA] 5
Stand-off voltage [V] 23,1
Breakdown voltage [V] 25,7
Test current [mA] 1
Max. clamping voltage [V] 37,5
Reverse peak pulse current [A] 11
Data Sheet

Unit price

0,058 €

Stock: 6487
Further delivery:
CW 09/2027

Minimum order quantity 1 to 37 units or multiples of 50 plus 0 to 37 .
