P 4 KE CA 6,8 V

Taiwan Semiconductor transient voltage suppression diode series P4KE A

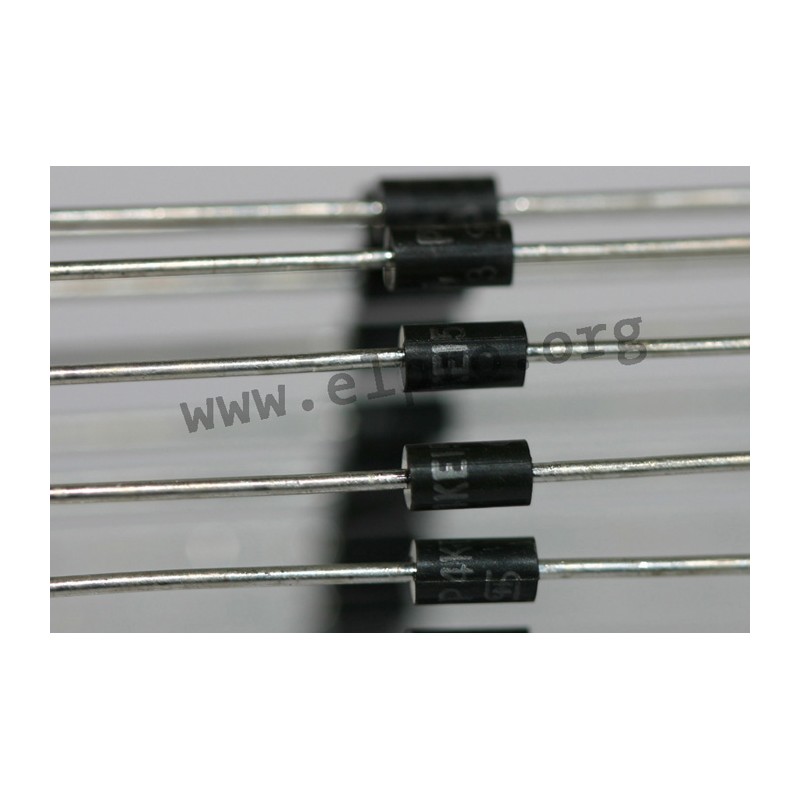

  • TVS diodes in a DO41 housing
  • with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s)
  • comply with UL94V-0
  • peak power dissipation: 400W
  • P 4 KE A_: unipolar
  • P 4 KE CA_: bipolar
  • taped

P 4 KE CA 6,8 V

453 P 4 KE CA 6,8 V P4KE6.8CA R0 P4KE6.8CA R0 Taiwan Semiconductor transient voltage suppression diode series P4KE A. TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) comply with UL94V-0 peak power dissipation: 400W P 4 KE A_: unipolar P 4 KE CA_: bipolar taped

Data sheet

manufacturer
manufacturer's name P4KE6.8CA R0

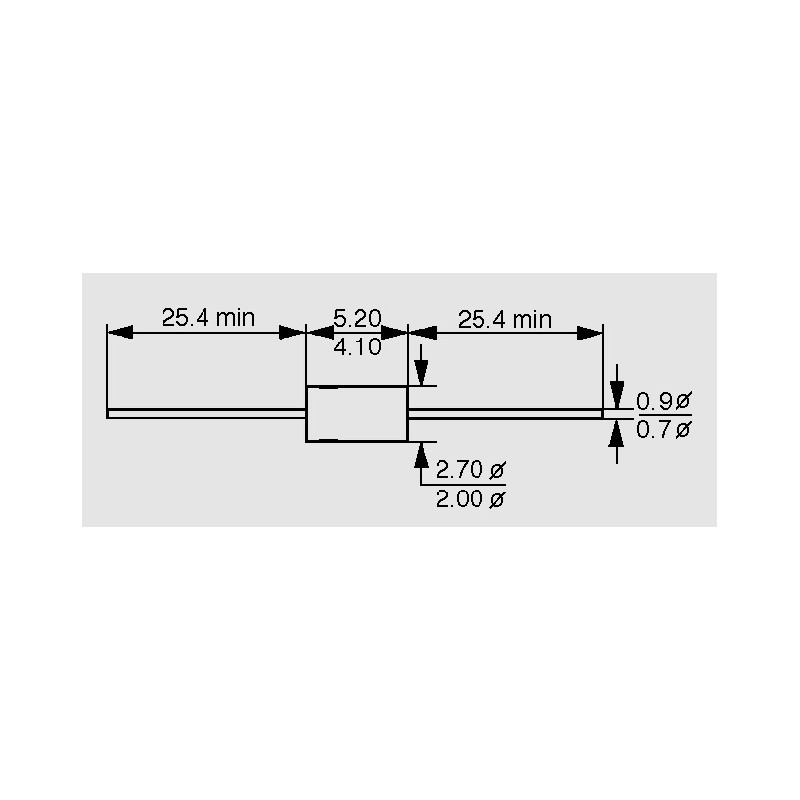

case DO41
reverse current [µA] 1000
stand-off voltage [V] 5,8
test current [mA] 10
breakdown voltage [V] 6,46
max. clamping voltage [V] 10,5
reverse peak pulse current [A] 40

Download

Data Sheet

0,86 €

Volume discounts

50 pcs. / 0,099 €

stock: 5007
Next incoming:
CW:48/2021
4900 pieces
