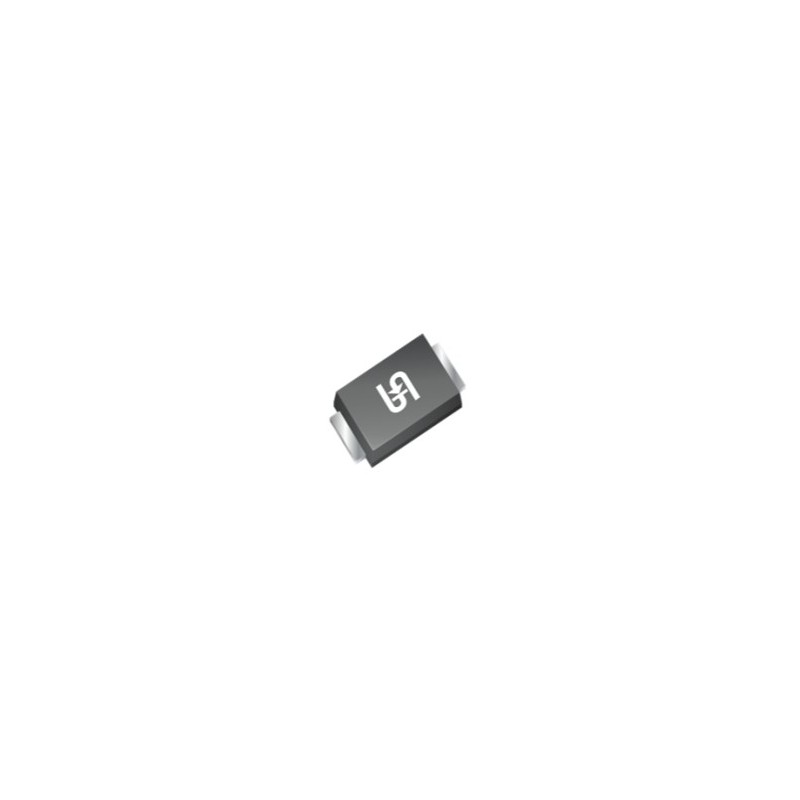

RS1GAL

Taiwan Semiconductor rectifier diode series RS1

  • fast SMD rectifier diodes
  • in various housings
  • comply with UL94V-0
  • solderable according to J-STD-002
  • operating temperature: -55 to +150°C
  • forward current: 1A

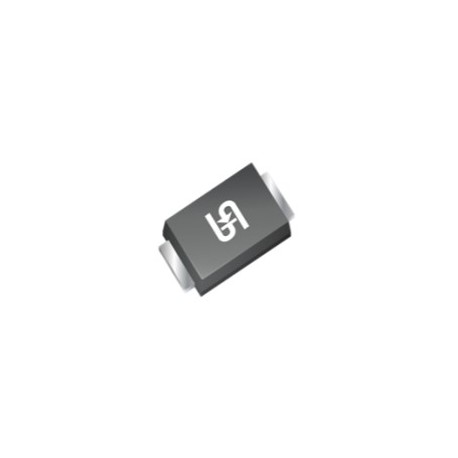

RS1GAL M3G, Taiwan Semiconductor rectifier diodes, 1A, SMD, fast, RS1_AL and RS1_FS series

RS1GAL

237451 RS1GAL RS1GAL Taiwan Semiconductor rectifier diode series RS1. fast SMD rectifier diodes in various housings comply with UL94V-0 solderable according to J-STD-002 operating temperature: -55 to +150°C forward current: 1A

Specifications

manufacturer
Manufacturer's name RS1GAL
Case Thin-SMA
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,3
Reverse current [µA] 1
(Max.) average forward (rectified) current [A] 1
Data Sheet

Unit price

0,06 €

Stock: 6700
Further delivery:
CW 32/2024

Minimum order quantity 100 units or
multiples of 100.
