S 8 KC SMD

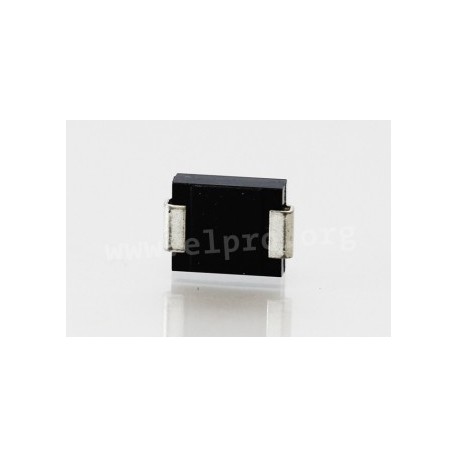

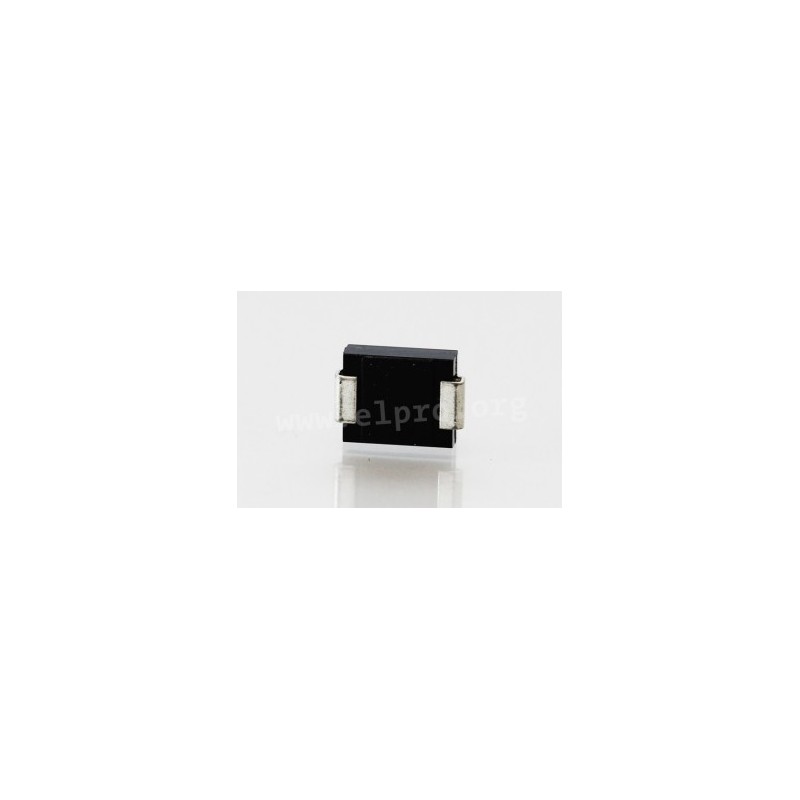

Taiwan Semiconductor rectifier diode series S8

Si rectifier diodes in a DO214AB(SMC) housing, solderable according to J-STD-002, and glasspassivated. We offer various types of this Taiwan Semiconductor series.

  • forward current: 8A
S8KC, Taiwan Semiconductor Si rectifier diodes, 8A, S8 series

S 8 KC SMD

44907 S 8 KC SMD S8KC S8KC Taiwan Semiconductor rectifier diode series S8. Si rectifier diodes in a DO214AB(SMC) housing, solderable according to J-STD-002, and glasspassivated. We offer various types of this Taiwan Semiconductor series. forward current: 8A

Specifications

manufacturer
Manufacturer's name S8KC
Case DO214AB/SMC
Operating temperature range [°C] -55...+150
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 0,985
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 8
Data Sheet

Unit price

0,146 €

Stock: 2400
Further delivery:
CW 23/2026

Minimum order quantity 100 units or
multiples of 100.
