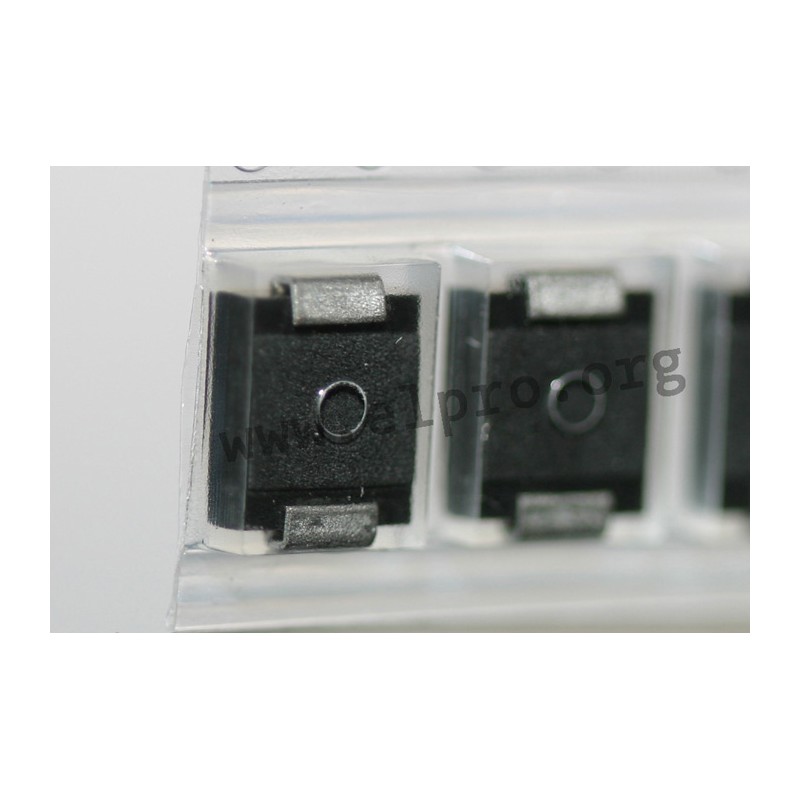

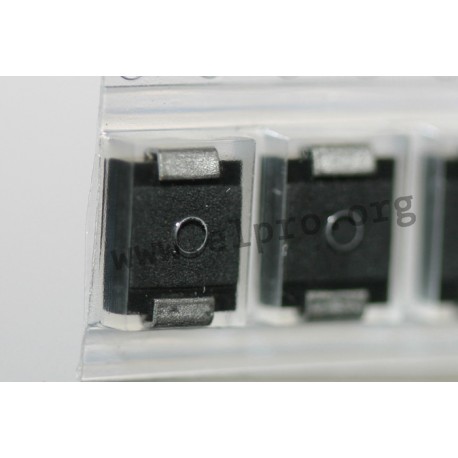

SMBJ 12 A

• unipolar
• housing: DO214AA/SMB
• plastic conforms to UL94V-0

• glass passivated
• max. solderability 260°C/10s

SMBJ 12 A

720 SMBJ 12 A SMBJ12A SMBJ12A • unipolar• housing: DO214AA/SMB• plastic conforms to UL94V-0 • glass passivated• max. solderability 260°C/10s

Specifications

manufacturer
manufacturer's name SMBJ12A
case DO214AA/SMB
reverse current [µA] 5
stand-off voltage [V] 12
breakdown voltage [V] 13,3
test current [mA] 1
max. clamping voltage [V] 19,9
reverse peak pulse current [A] 31
Data Sheet

Unit price

1,17 €

Volume discounts

Quantity Unit price
50 + 0,121 €

Stock: 5
Next incoming goods:
CW 11/2022
40650 units
