SMBJ 15 A

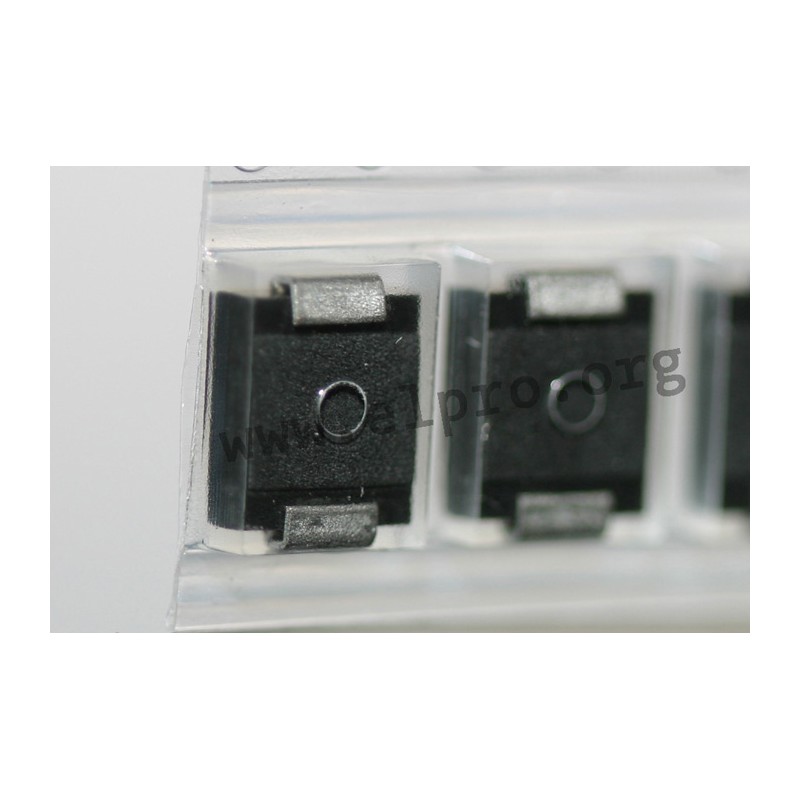

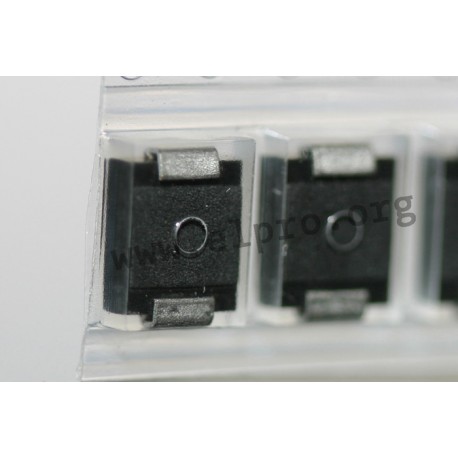

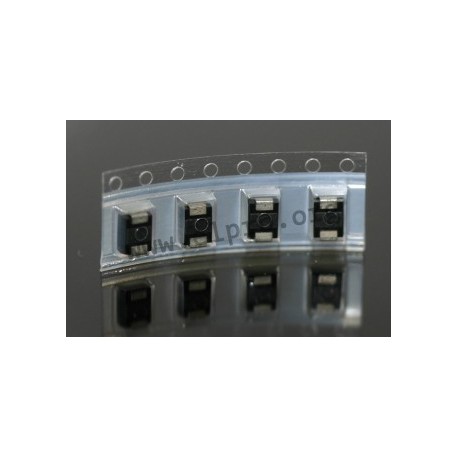

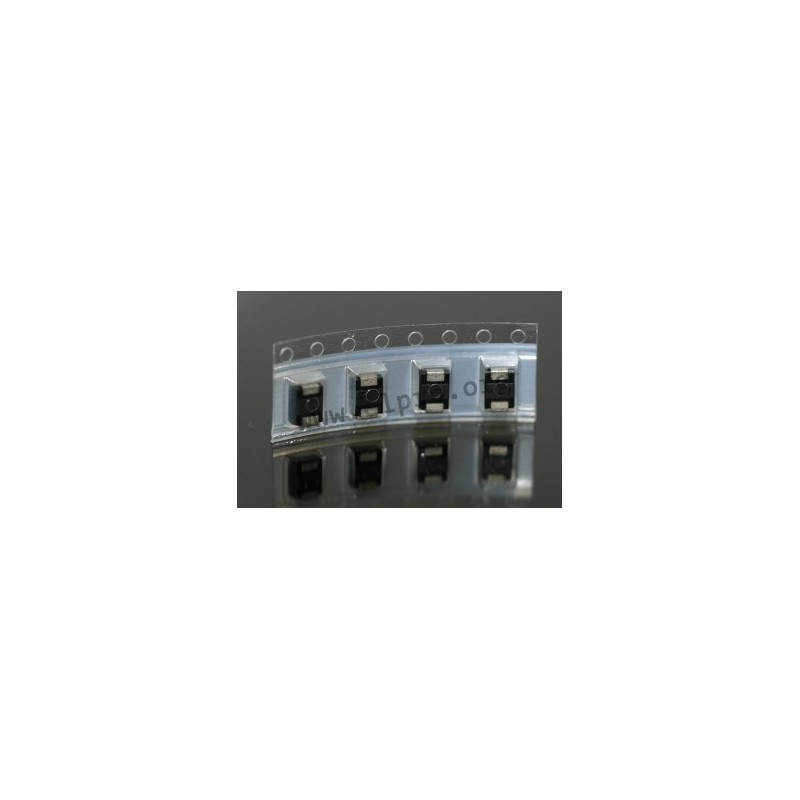

Taiwan Semiconductor TVS diode series SMBJ

  • SMD transient voltage suppression diodes
  • in a DO214AA/SMB housing
  • glass passivated
  • comply with UL94V-0

SMBJ 15 A

730 SMBJ 15 A SMBJ15A SMBJ15A Taiwan Semiconductor TVS diode series SMBJ. SMD transient voltage suppression diodes in a DO214AA/SMB housing glass passivated comply with UL94V-0

Specifications

manufacturer
Manufacturer's name SMBJ15A
Case DO214AA/SMB
Reverse current [µA] 5
Stand-off voltage [V] 15
Breakdown voltage [V] 16,7
Test current [mA] 1
Max. clamping voltage [V] 24,4
Reverse peak pulse current [A] 25,1
Data Sheet Data Sheet

Unit price

0,084 €

Stock: 21600
Further delivery:
CW 50/2024

Minimum order quantity 100 units or
multiples of 100.
