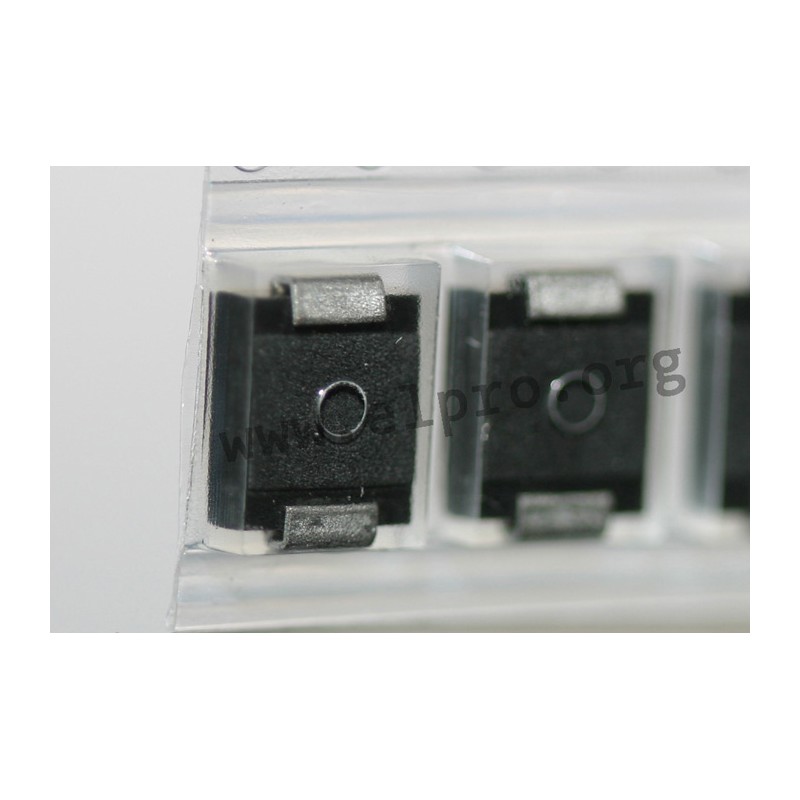

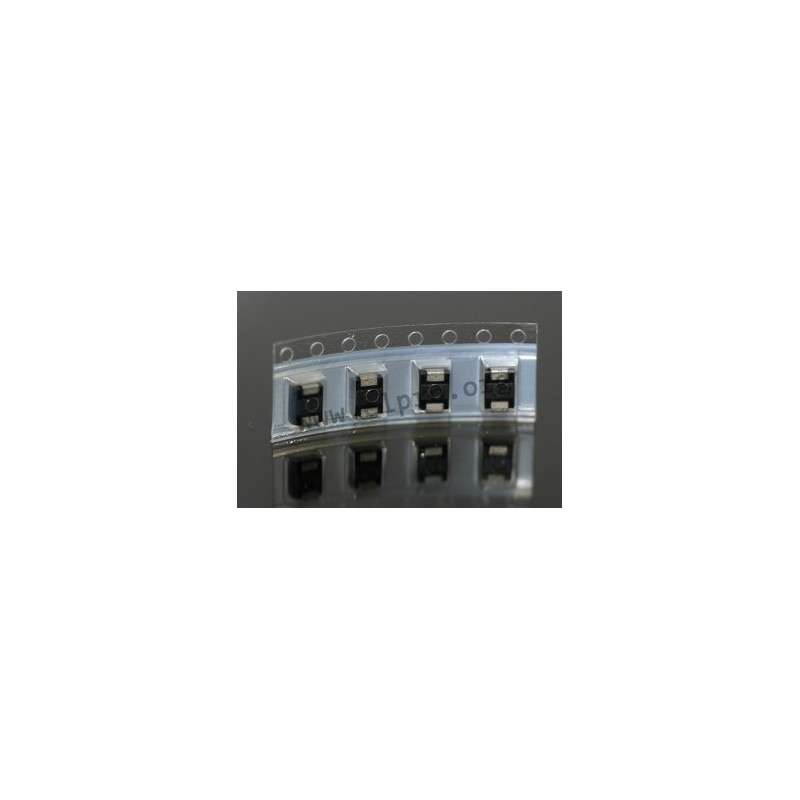

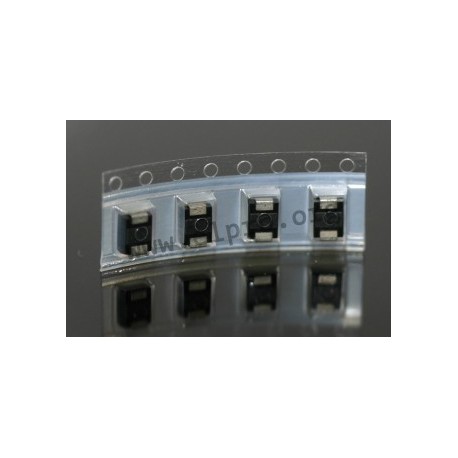

SMBJ 30 A

Taiwan Semiconductor TVS diode series SMBJ

  • SMD transient voltage suppression diodes
  • in a DO214AA/SMB housing
  • glass passivated
  • comply with UL94V-0

SMBJ 30 A

754 SMBJ 30 A SMBJ30A SMBJ30A Taiwan Semiconductor TVS diode series SMBJ. SMD transient voltage suppression diodes in a DO214AA/SMB housing glass passivated comply with UL94V-0

Specifications

manufacturer
Manufacturer's name SMBJ30A
Case DO214AA/SMB
Reverse current [µA] 5
Stand-off voltage [V] 30
Breakdown voltage [V] 33,3
Test current [mA] 1
Max. clamping voltage [V] 48,4
Reverse peak pulse current [A] 13
Data Sheet Data Sheet

Unit price

0,078 €

Stock: 35165
Further delivery:
CW 15/2025

Minimum order quantity 1 to 15 units or multiples of 100 plus 0 to 15 .
