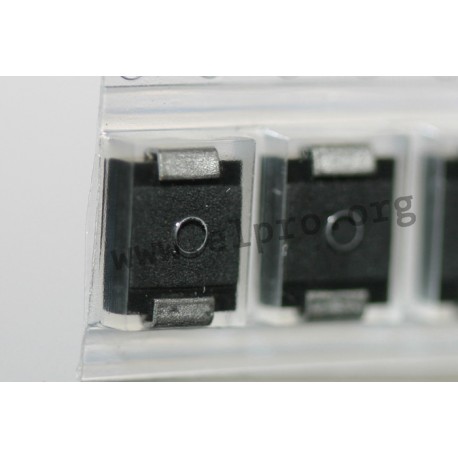

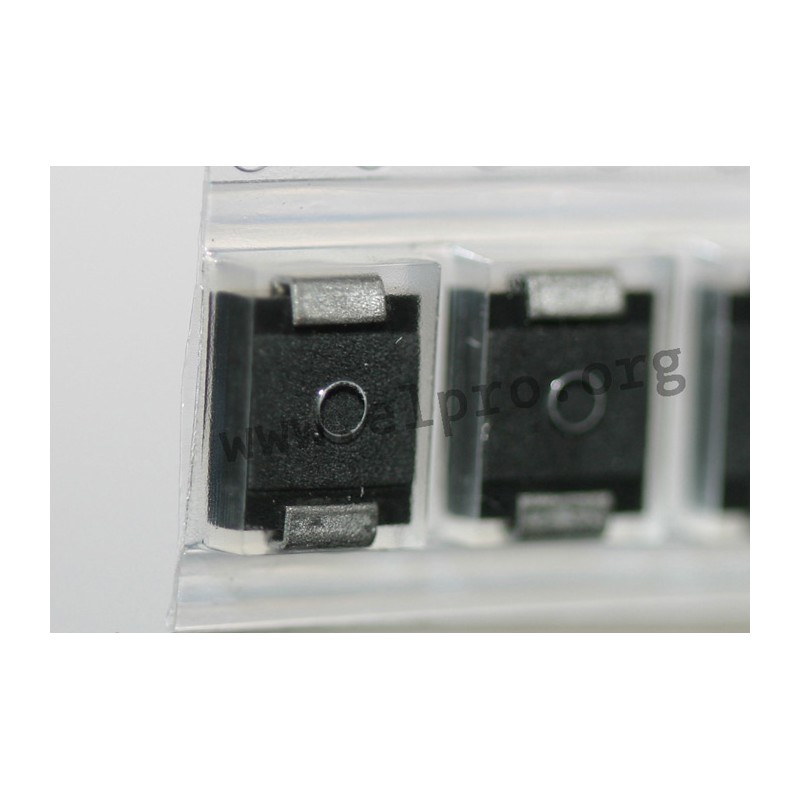

SMBJ 5.0 A

• unipolar
• housing: DO214AA/SMB
• plastic conforms to UL94V-0

• glass passivated
• max. solderability 260°C/10s

SMBJ 5.0 A

768 SMBJ 5.0 A SMBJ5.0A SMBJ5.0A • unipolar• housing: DO214AA/SMB• plastic conforms to UL94V-0 • glass passivated• max. solderability 260°C/10s

Specifications

manufacturer
Manufacturer's name SMBJ5.0A
Case DO214AA/SMB
Reverse current [µA] 800
Stand-off voltage [V] 5
Breakdown voltage [V] 6,4
Test current [mA] 10
Max. clamping voltage [V] 9,2
Reverse peak pulse current [A] 68
Data Sheet

Unit price

0,114 €

Stock: 51100

Minimum order quantity 50 units or
multiples of 50.
