SMCJ 33 A

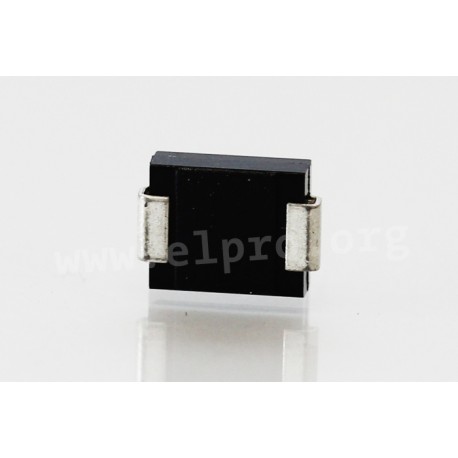

Taiwan Semiconductor transient voltage suppression diode series SMCJ A

  • TVS diodes in a DO-214AB (SMC) housing
  • comply with UL94V-0 and J-STD-002
  • with a glass passivated junction
  • peak pulse power dissipation: 1500W
  • forward voltage SMCJ 5.0_ to SMCJ 70_: 3,5V
  • forward voltage SMCJ 100_ and SMCJ 170_: 5V

SMCJ 33 A

848 SMCJ 33 A SMCJ33A SMCJ33A Taiwan Semiconductor transient voltage suppression diode series SMCJ A. TVS diodes in a DO-214AB (SMC) housing comply with UL94V-0 and J-STD-002 with a glass passivated junction peak pulse power dissipation: 1500W forward voltage SMCJ 5.0_ to SMCJ 70_: 3,5V forward voltage SMCJ 100_ and SMCJ 170_: 5V

Specifications

manufacturer
manufacturer's name SMCJ33A

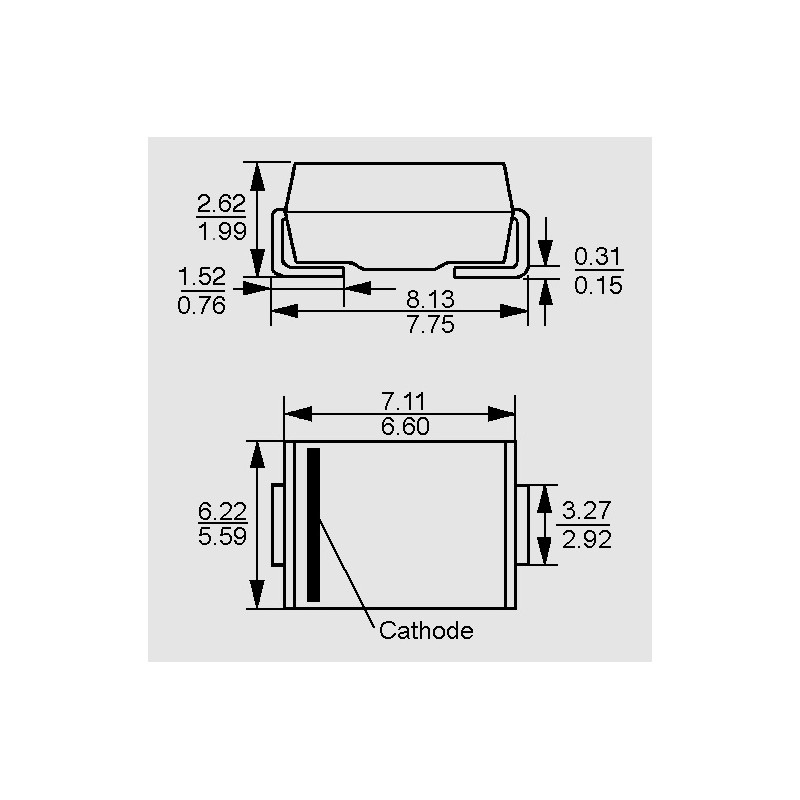

case DO214AB/SMC
reverse current [µA] 5
stand-off voltage [V] 33
test current [mA] 1
breakdown voltage [V] 36,7
reverse peak pulse current [A] 29
reverse voltage [V] 33
Data Sheet

Unit price

2,79 €

Volume discounts

Quantity Unit price
25 + 0,285 €

Stock: 1838
Next incoming goods:
CW 10/2022
3000 units
