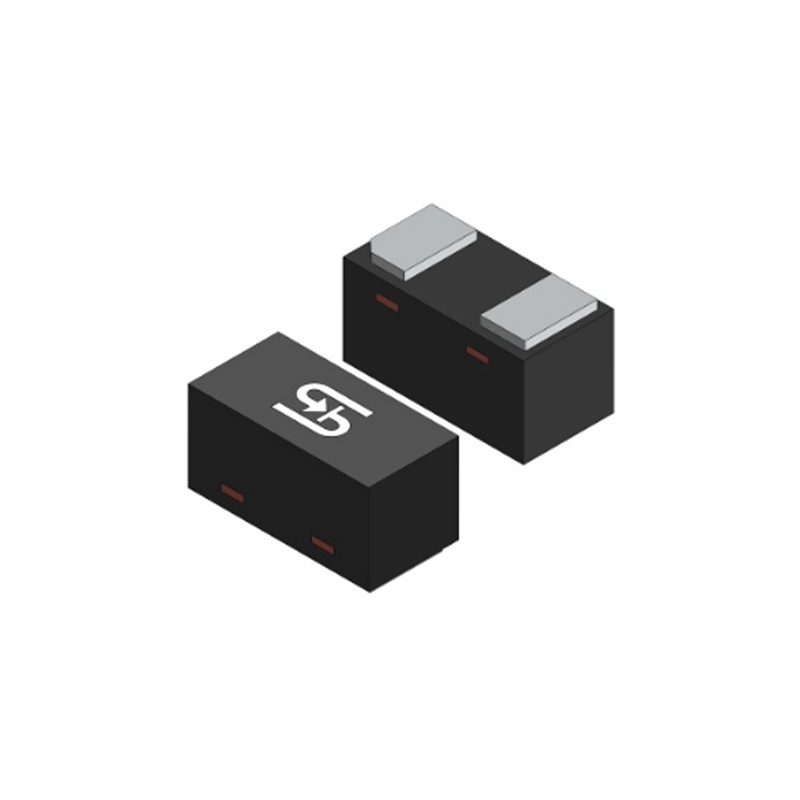

TESDH3V3B03P1Q0 M3G

Taiwan Semiconductor ESD protection array series TESD

  • bipolar
  • in compliance with UL94C0 flammability class
  • leads solderable per J-STD-002
  • one array contains 4 diodes

TESD 5V0V4UA:

  • in compliance with IEC61000-4-2 (ESD) at 17kV (air) resp. 12kV (contact)
  • housing: 2510P10

TESD 5V0V4UCU6:

  • in compliance with IEC61000-4-2 (ESD) at 15kV (air) resp. 8kV (contact)
  • housing: SOT-363

TESD 5V0V4UCX6:

  • in compliance with IEC61000-4-2 (ESD) at 18kV (air) resp. 12kV (contact)
  • housing: SOT-26
TESDH3V3B03P1Q0 M3G, Taiwan Semiconductor ESD protection arrays, 15 to 18kV, TESD series

TESDH3V3B03P1Q0 M3G

258808 TESDH3V3B03P1Q0 M3G TESDH3V3B03P1Q0 M3G Taiwan Semiconductor ESD protection array series TESD. bipolar in compliance with UL94C0 flammability class leads solderable per J-STD-002 one array contains 4 diodes TESD 5V0V4UA: in compliance with IEC61000-4-2 (ESD) at 17kV (air) resp. 12kV (contact) housing: 2510P10 TESD 5V0V4UCU6: in compliance with IEC61000-4-2 (ESD) at 15kV (air) resp. 8kV (contact) housing: SOT-363 TESD 5V0V4UCX6: in compliance with IEC61000-4-2 (ESD) at 18kV (air) resp. 12kV (contact) housing: SOT-26

Specifications

manufacturer
Manufacturer's name TESDH3V3B03P1Q0 M3G
Case DFN0603-2L
ESD Voltage [kV] 20
Data Sheet

Unit price

0,051 €

Stock: 0
Next incoming goods:
CW 29/2026
10000 units

Further delivery:
CW 22/2028

Minimum order quantity 100 units or
multiples of 100.
