TS 15P05 G

Taiwan Semiconductor flat rectifier series TS15P

  • bridge rectifiers
  • in an In-Line housing with a circular hole
  • glass passivated
  • 7,5/10mm pin spacing
  • comply with UL94V-0 as well as MIL-STD-750, Meth. 206
  • operating temperature: -55 to +150°C
  • forward current: 15A

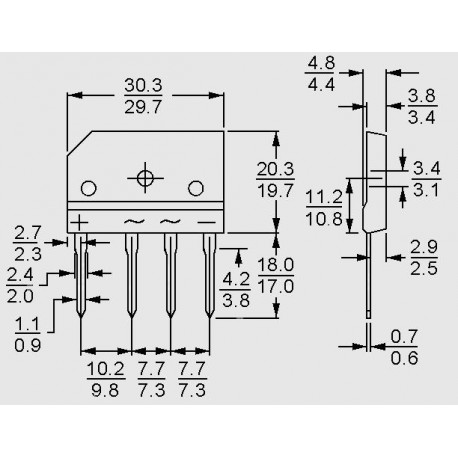

dimensions

TS 15P05 G

25800 TS 15P05 G TS15P05G TS15P05G Taiwan Semiconductor flat rectifier series TS15P. bridge rectifiers in an In-Line housing with a circular hole glass passivated  7,5/10mm pin spacing  comply with UL94V-0 as well as MIL-STD-750, Meth. 206 operating temperature: -55 to +150°C forward current: 15A

Specifications

manufacturer
Manufacturer's name TS15P05G
Case flat rectifiers
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 15
Reverse current [µA] 10
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

0,758 €

Stock: 1516
Further delivery:
CW 18/2026

Minimum order quantity 1 unit or multiples of 15 plus 0 to 1 .
