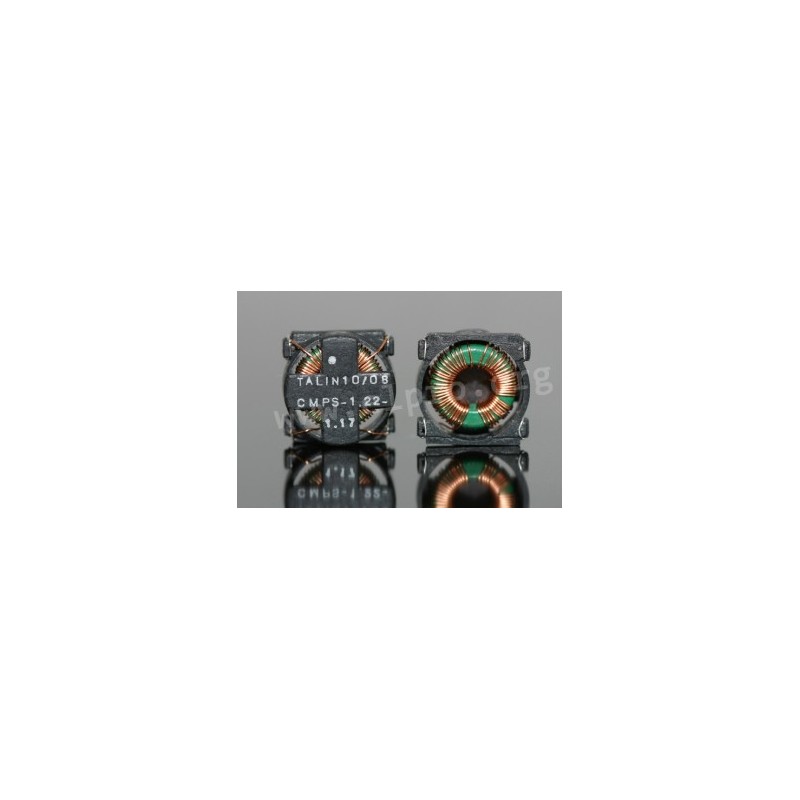

CMPS-1,22-1,17

current compensated SMD suppression chokes

* SMD version
* by Talema
* two separated windings for minimum capacitance
* terminals through 4 tin soldered-in pins
* operating temperature -40 to 125°C
* meets lead free reflow level J-STD-020C

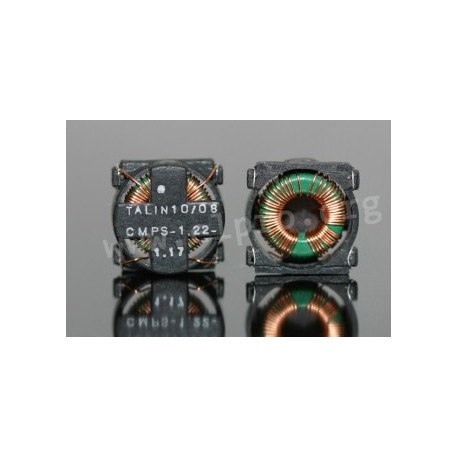

CMPS-1.22-1.17, Talema current-compensated chokes, SMD, CMPS series

CMPS-1,22-1,17

29555 CMPS-1,22-1,17 CMPS-1.22-1.17 CMPS-1.22-1.17 current compensated SMD suppression chokes. * SMD version* by Talema* two separated windings for minimum capacitance* terminals through 4 tin soldered-in pins* operating temperature -40 to 125°C* meets lead free reflow level J-STD-020C

Specifications

manufacturer
Manufacturer's name CMPS-1.22-1.17
Case SC2
E [mm] 8,38mm
Rated current [mA] 1220
inductance [mH] 1,17
A [mm] 12
Width [mm] 12
E [mm] 8,38
D [mm] 10,4
C [mm] 5,4
DC resistance [Ω] 200
Data Sheet

Unit price

2,69 €

Stock: 8
Further delivery:
CW 28/2026

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
