IM01TS

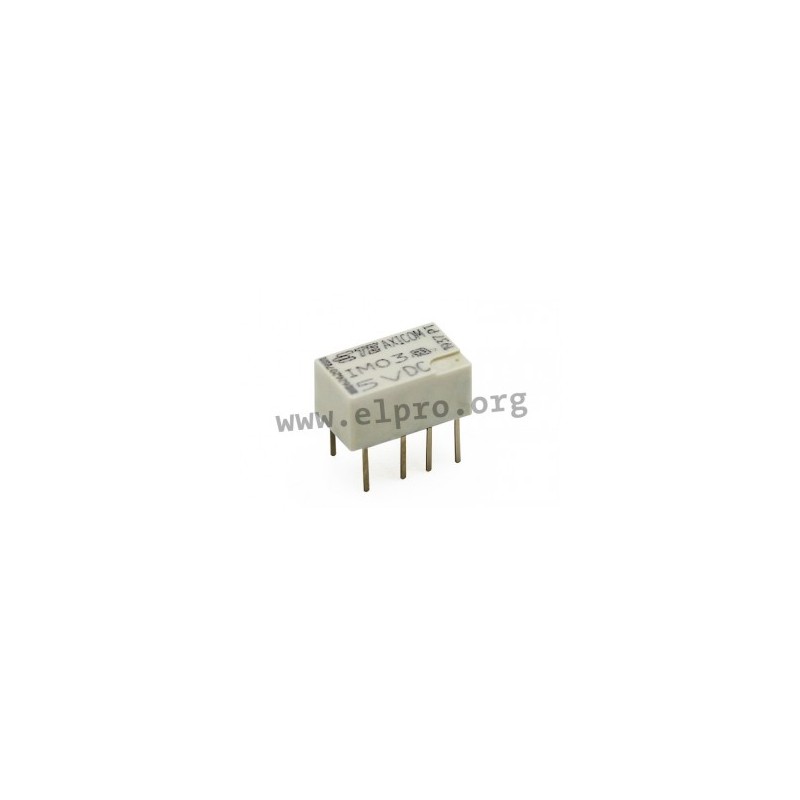

TE Connectivity PCB relay series IM

THT signal relays with the contact form DPDT (2 form C) and the contact material palldium-ruthenium (PdRu, Au plated). These relays have a rated current of 2A and a maximal switching voltage of 250V AC or 220V DC. Furthermore, they are in compliance with relay protection class RT V (IEC 61810), have high mechanical shock resistance and a low coil power consumption of 140mW. We offer various types of this TE series.

  • contact: DPDT
  • contact material: PdRu, Au plated
  • rated current: 2A
  • maximal switching current: 2A
  • maximal switching voltage: 220V DC / 250V AC
  • terminal type: THT
  • switching power: 60W / 62,5VA
  • testing voltage coil/contact: 1800Vrms
  • testing voltage contact/contact: 1000Vrms
  • testing voltage open contacts: 1000Vrms
  • minimal mechanical lifetime: 108 operations
  • minimal electrical lifetime: 30V DC/2A, 60W: 1x105 operations
  • minimal electrical lifetime 220V DC/0,27A, 60W: 1x105 operations
  • operating temperature: -40 to +85°C
  • weight (approximately): 0,75g

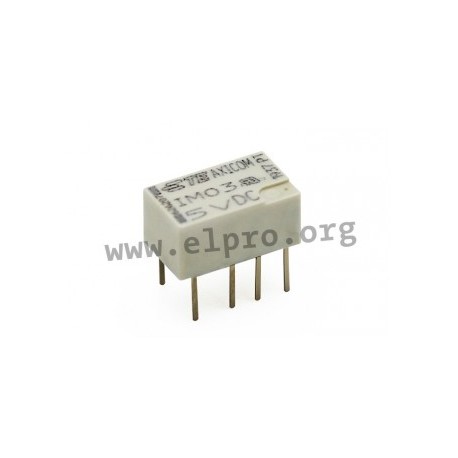

1462037-4, TE Connectivity PCB relays, 2A, 2 changeover contacts, Axicom, IM series

IM01TS

113561 IM01TS 1462037-4 1462037-4 TE Connectivity PCB relay series IM. THT signal relays with the contact form DPDT (2 form C) and the contact material palldium-ruthenium (PdRu, Au plated). These relays have a rated current of 2A and a maximal switching voltage of 250V AC or 220V DC. Furthermore, they are in compliance with relay protection class RT V (IEC 61810), have high mechanical shock resistance and a low coil power consumption of 140mW. We offer various types of this TE series. contact: DPDT contact material: PdRu, Au plated rated current: 2A maximal switching current: 2A maximal switching voltage: 220V DC / 250V AC terminal type: THT switching power: 60W / 62,5VA testing voltage coil/contact: 1800Vrms testing voltage contact/contact: 1000Vrms testing voltage open contacts: 1000Vrms minimal mechanical lifetime: 108 operations minimal electrical lifetime: 30V DC/2A, 60W: 1x105 operations minimal electrical lifetime 220V DC/0,27A, 60W: 1x105 operations operating temperature: -40 to +85°C weight (approximately): 0,75g

Specifications

manufacturer
Manufacturer's name 1462037-4
Coil resistance [Ω] 64
Nominal voltage [V] 3
Switching current [A] 2
Response voltage [V] 2,25
Release voltage [V] 0,3
Nominal capacity [mW] 140
Data Sheet

Unit price

1,39 €

Stock: 425
Further delivery:
CW 38/2026

Minimum order quantity 25 units or
multiples of 25.
