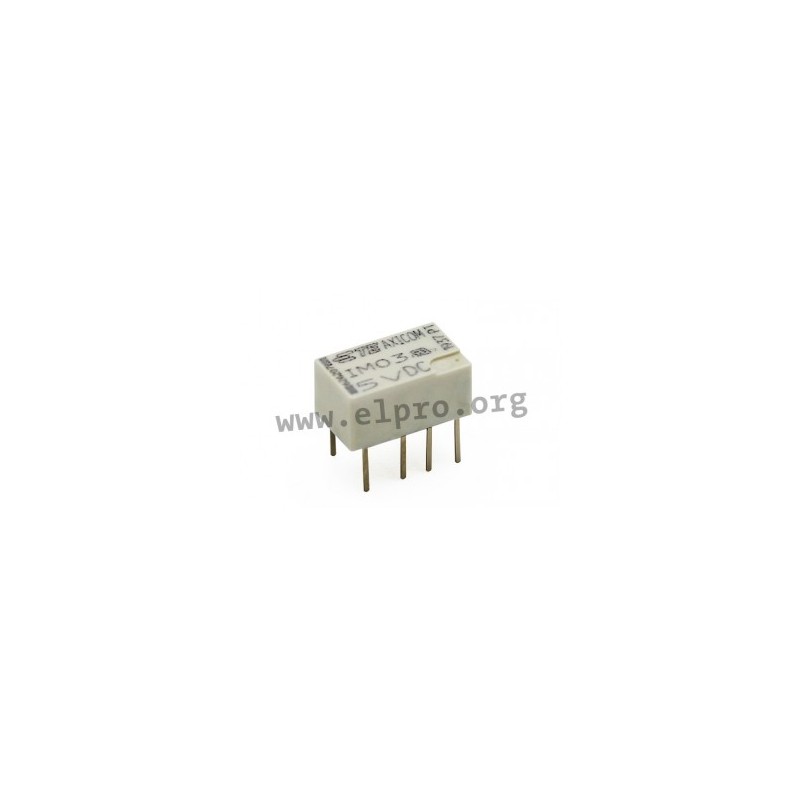

IM03TS

TE Connectivity PCB relay series IM

THT signal relays with the contact form DPDT (2 form C) and the contact material palldium-ruthenium (PdRu, Au plated). These relays have a rated current of 2A and a maximal switching voltage of 250V AC or 220V DC. Furthermore, they are in compliance with relay protection class RT V (IEC 61810), have high mechanical shock resistance and a low coil power consumption of 140mW. We offer the types IM01TS, IM03TS and IM06TS of this series.

  • contact: DPDT
  • contact material: PdRu, Au plated
  • rated current: 2A
  • maximal switching current: 2A
  • maximal switching voltage: 220V DC / 250V AC
  • terminal type: THT
  • switching power: 60W / 62,5VA
  • testing voltage coil/contact: 1800Vrms
  • testing voltage contact/contact: 1000Vrms
  • testing voltage open contacts: 1000Vrms
  • minimal mechanical lifetime: 108 operations
  • minimal electrical lifetime: 30V DC/2A, 60W: 1x105 operations
  • minimal electrical lifetime 220V DC/0,27A, 60W: 1x105 operations
  • operating temperature: -40 to +85°C
  • weight (approximately): 0,75g

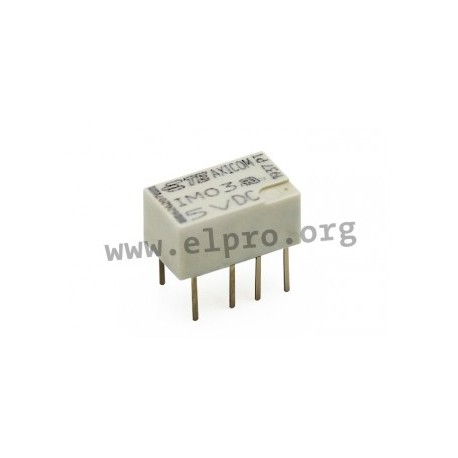

1-1462037-8, TE Connectivity Axicom PCB relays, 2A, DPDT, IM series

IM03TS

113564 IM03TS 1-1462037-8 1-1462037-8 TE Connectivity PCB relay series IM. THT signal relays with the contact form DPDT (2 form C) and the contact material palldium-ruthenium (PdRu, Au plated). These relays have a rated current of 2A and a maximal switching voltage of 250V AC or 220V DC. Furthermore, they are in compliance with relay protection class RT V (IEC 61810), have high mechanical shock resistance and a low coil power consumption of 140mW. We offer the types IM01TS, IM03TS and IM06TS of this series. contact: DPDTcontact material: PdRu, Au platedrated current: 2Amaximal switching current: 2Amaximal switching voltage: 220V DC / 250V ACterminal type: THTswitching power: 60W / 62,5VAtesting voltage coil/contact: 1800Vrmstesting voltage contact/contact: 1000Vrmstesting voltage open contacts: 1000Vrmsminimal mechanical lifetime: 108 operationsminimal electrical lifetime: 30V DC/2A, 60W: 1x105 operationsminimal electrical lifetime 220V DC/0,27A, 60W: 1x105 operationsoperating temperature: -40 to +85°Cweight (approximately): 0,75g

Specifications

manufacturer
Manufacturer's name 1-1462037-8
Coil resistance [Ω] 178
Nominal voltage [V] 5
Switching current [A] 2
Response voltage [V] 3,75
Release voltage [V] 0,5
Nominal capacity [mW] 140
Data Sheet

Unit price

1,33 €

Stock: 2525
Next incoming goods:
CW 22/2024
1000 units

Further delivery:
CW 43/2024

Minimum order quantity 25 units or
multiples of 25.
