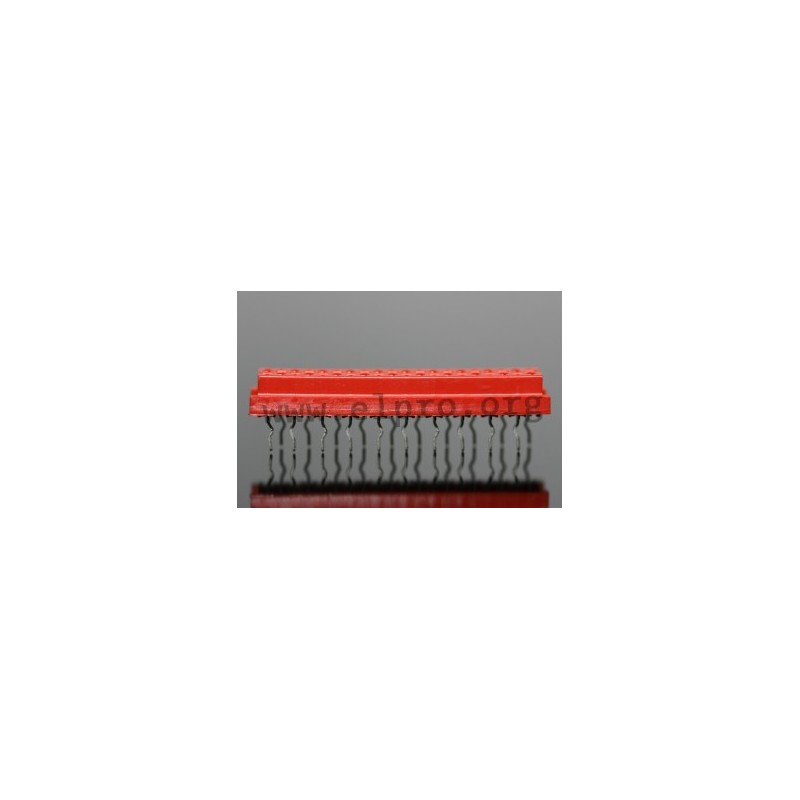

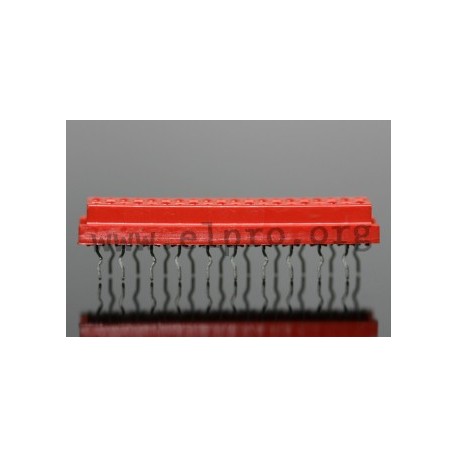

1-215079-2

female PCB connectors

• series Micro-MaTch by TE Connectivity
• pitch: 1.27mm
• housing material: thermoplastic, polyester
• colour: red
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tinned
• contact resistance: 10mΩ
• insulation resistance: 1000MΩ
• rated voltage: 230V
• rated current: 1.5A
• temperature range: -40...+105°C

Suitable pin headers for flat cables.

1-215079-2

11549 1-215079-2 1-215079-2 female PCB connectors. • series Micro-MaTch by TE Connectivity• pitch: 1.27mm• housing material: thermoplastic, polyester• colour: red• flammability: UL94V-0• contact material: phosphor bronze• contact surface: tinned• contact resistance: 10mΩ• insulation resistance: 1000MΩ• rated voltage: 230V• rated current: 1.5A• temperature range: -40...+105°CSuitable pin headers for flat cables.

Specifications

manufacturer
Manufacturer's name 1-215079-2
Number of poles 12
A [mm] 13,97
Width [mm] 17,3

Unit price

0,563 €

Stock: 2285
Next incoming goods:
CW 27/2024
2000 units


Further delivery:
CW 09/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
