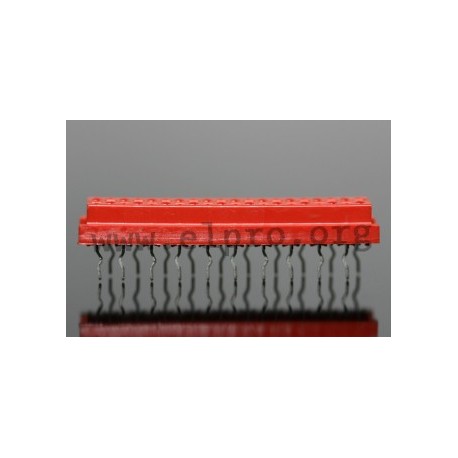

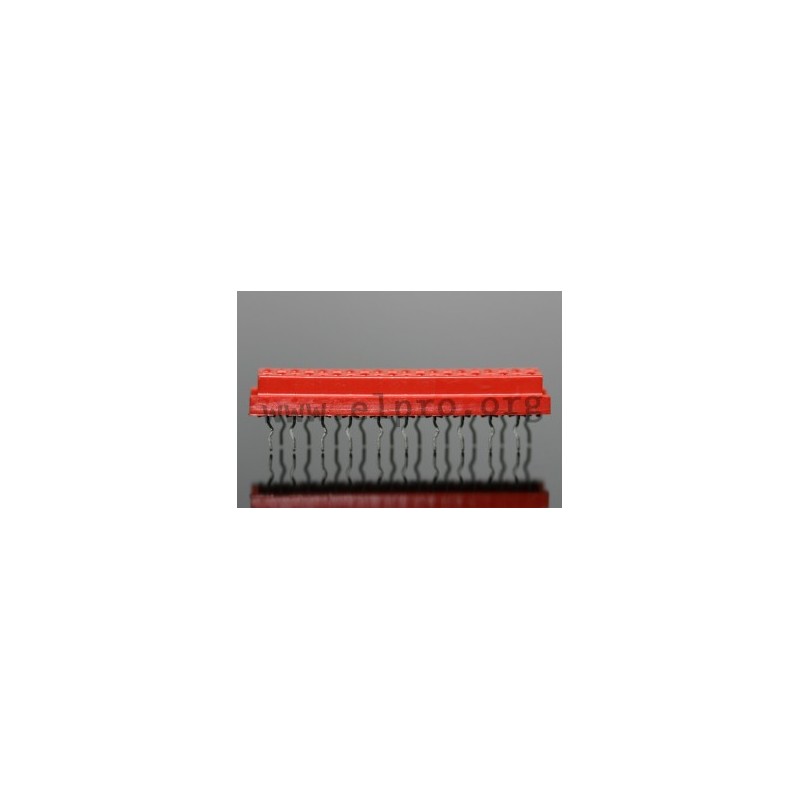

1-215079-6

female PCB connectors

• series Micro-MaTch by TE Connectivity
• pitch: 1.27mm
• housing material: thermoplastic, polyester
• colour: red
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tinned
• contact resistance: 10mΩ
• insulation resistance: 1000MΩ
• rated voltage: 230V
• rated current: 1.5A
• temperature range: -40...+105°C

Suitable pin headers for flat cables.

1-215079-6

11551 1-215079-6 1-215079-6 female PCB connectors. • series Micro-MaTch by TE Connectivity• pitch: 1.27mm• housing material: thermoplastic, polyester• colour: red• flammability: UL94V-0• contact material: phosphor bronze• contact surface: tinned• contact resistance: 10mΩ• insulation resistance: 1000MΩ• rated voltage: 230V• rated current: 1.5A• temperature range: -40...+105°CSuitable pin headers for flat cables.

Specifications

manufacturer
Manufacturer's name 1-215079-6
Number of poles 16
A [mm] 19,05
Width [mm] 22,4

Unit price

0,656 €

Stock: 3232
Further delivery:
CW 25/2025

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
