1-215083-4

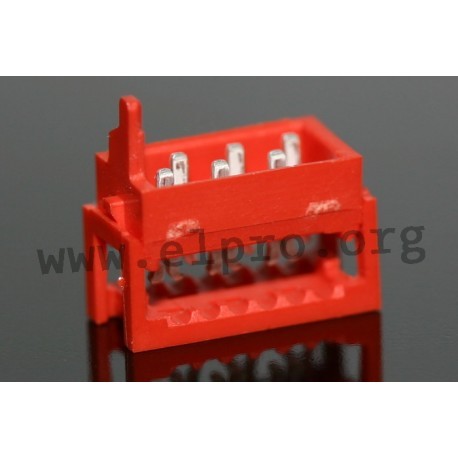

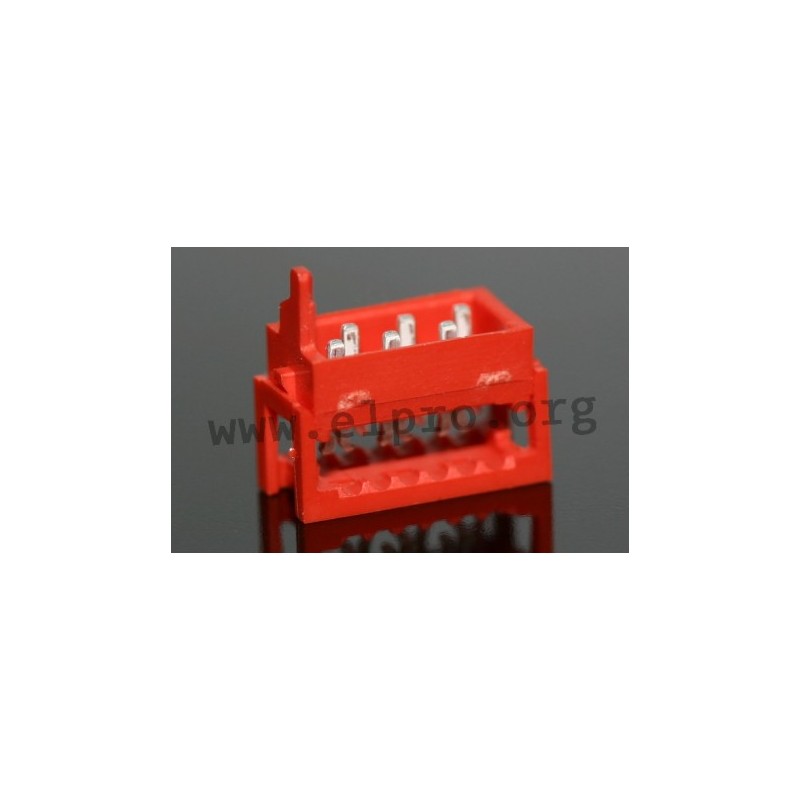

TE Connectivity male PCB connectors series MicroMaTch

Male PCB connectors for flat cables made of thermoplastic polyester and with a 1.27mm pitch. They have a red housing and confirm with UL94V-0. These female headers have a tinned contact surface made of phosphor bronze. We offer various types of this TE Connectivity series.

  • contact resistance: 10mΩ
  • insulation resistance: 1000MΩ
  • rated voltage: 230V
  • rated current: 1,5A
  • operating temperature range: -40 to +105°C



suitable female headers for soldering or SMD version

1-215083-4, TE Connectivity male PCB connectors, for flat cables, 1,27mm, MicroMaTch series

1-215083-4

11554 1-215083-4 1-215083-4 TE Connectivity male PCB connectors series MicroMaTch. Male PCB connectors for flat cables made of thermoplastic polyester and with a 1.27mm pitch. They have a red housing and confirm with UL94V-0. These female headers have a tinned contact surface made of phosphor bronze. We offer various types of this TE Connectivity series. contact resistance: 10mΩ insulation resistance: 1000MΩ rated voltage: 230V rated current: 1,5A operating temperature range: -40 to +105°C suitable female headers for soldering or SMD version

Specifications

manufacturer
Manufacturer's name 1-215083-4
Number of poles 14
A [mm] 21,3
Width [mm] 18,1
C [mm] 16,51
Data Sheet

Unit price

0,625 €

Stock: 988
Further delivery:
CW 18/2026

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
