G4 117°C

axial, 10A

* for installation on or in the heating device of electric household appliances, transformers and all types of devices
* switches off devices if the premissible operating temperature is exceeded
* after activating, the fuse must be replaced
* secured in dust and dirt proof enclosure
* reacts to surrounding temperatures and is conditionally current sensitive during rated loads
* contact: NC
* rated current
VDE, CSA: 10A
UL: 8A
* rated voltage: 250V AC

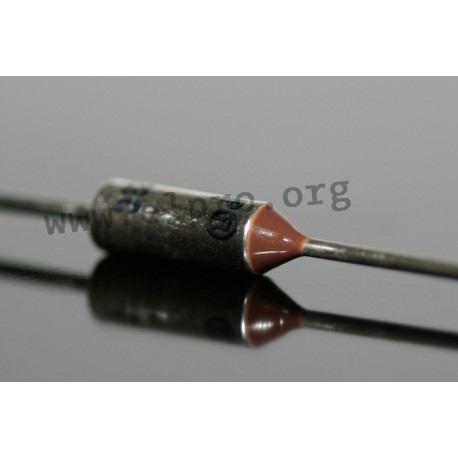

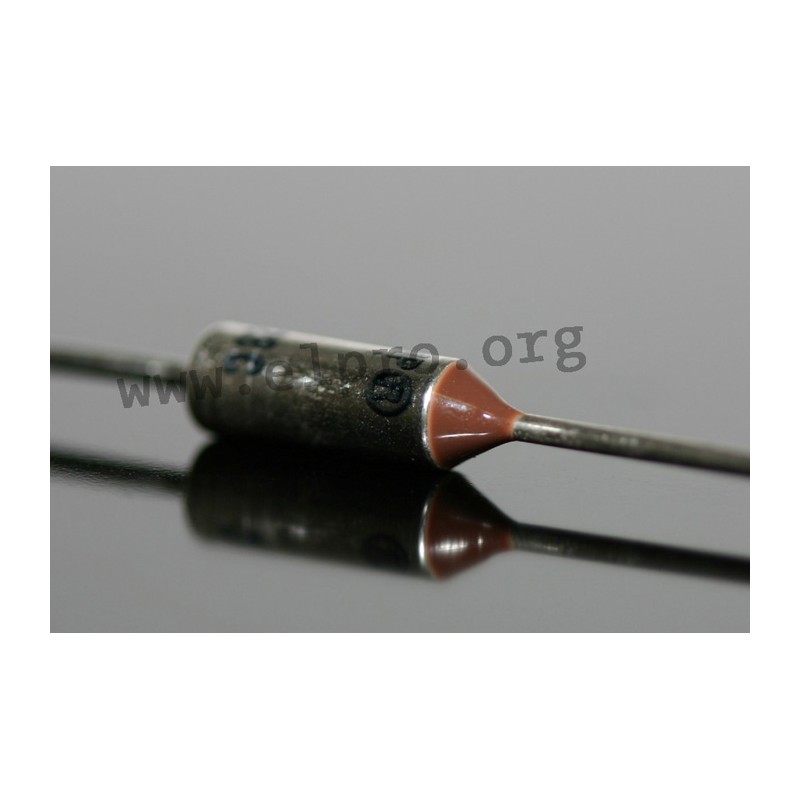

G4 series View larger

G4 117°C

27377 G4 117°C 770.117 770.117 axial, 10A. * for installation on or in the heating device of electric household appliances, transformers and all types of devices* switches off devices if the premissible operating temperature is exceeded* after activating, the fuse must be replaced* secured in dust and dirt proof enclosure* reacts to surrounding temperatures and is conditionally current sensitive during rated loads* contact: NC* rated current VDE, CSA: 10AUL: 8A* rated voltage: 250V AC

Discontinued items. Only remainder of stock available.

Data sheet

manufacturer
manufacturer's name 770.117
design axial
nominal voltage [V] 250
nominal temperature [°C] 117
limiting temperature [°C] 160
rated current [A] 10
continuous operating temperature [°C] 102

Download

Data Sheet

0,42 €

stock: 20
