> Passive elements>Fuses>Thermal cutoffs>Therm-O-Disc thermal cutoffs, micro, axial, 10A, E4A series>G4 167°C

Manufacturers

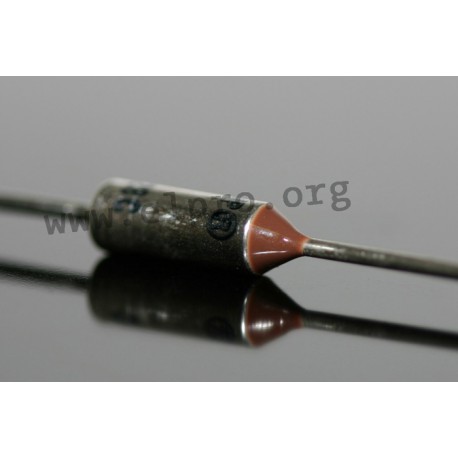

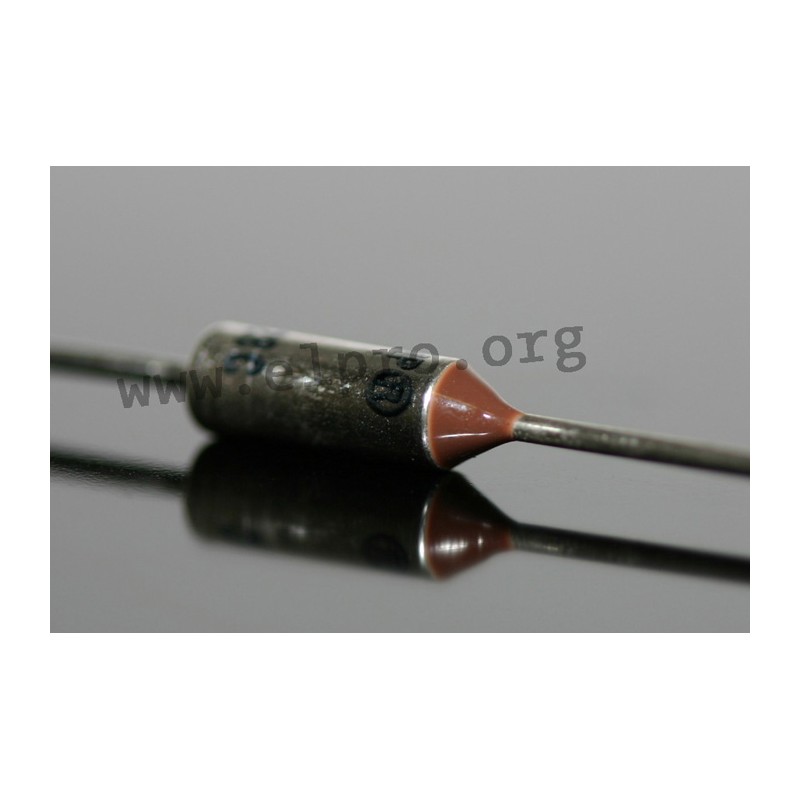

G4 167°C

axial, 10A

* for installation on or in the heating device of electric household appliances, transformers and all types of devices
* switches off devices if the premissible operating temperature is exceeded
* after activating, the fuse must be replaced
* secured in dust and dirt proof enclosure
* reacts to surrounding temperatures and is conditionally current sensitive during rated loads
* contact: NC
* rated current
VDE, CSA: 10A
UL: 8A
* rated voltage: 250V AC
G4 series

G4 167°C

27384 G4 167°C 770.167 770.167 axial, 10A. * for installation on or in the heating device of electric household appliances, transformers and all types of devices* switches off devices if the premissible operating temperature is exceeded* after activating, the fuse must be replaced* secured in dust and dirt proof enclosure* reacts to surrounding temperatures and is conditionally current sensitive during rated loads* contact: NC* rated current VDE, CSA: 10AUL: 8A* rated voltage: 250V AC

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 770.167
Design axial
Nominal voltage [V] 250
Nominal temperature [°C] 167
Limiting temperature [°C] 210
Rated current [A] 10
Continuous operating temperature [°C] 152
Data Sheet

Unit price

0,42 €

Stock: 22
