> Passive elements>Resistors>SMD resistors>Viking SMD resistors, 0603 housing, 0,05%, 0,1W, ARM03A series>ARM03ATBX2401A 2,4k

Manufacturers

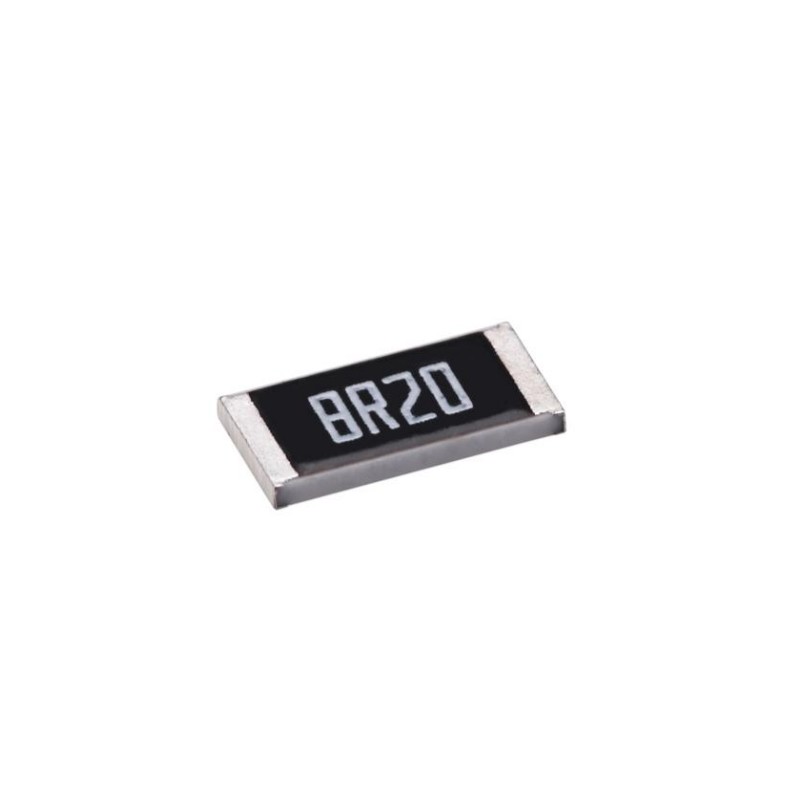

ARM03ATBX2401A 2,4k

Viking SMD resistor series ARM03A

Metal thin film chip resistors in an 0603 SMD housing with 0,1W and a tolerance of 0,05%. These resistors comply with AEC-Q200 and have an advanced sulfur resistance according to ASTM B 809. They are suitable for direct PCB mounting (SMD) and have a low temperature coefficient of (Tc = ±10ppm/°C). We offer various types of this Viking series.

  • power: 0,1W
  • resistance tolerance: ±0,05%
  • maximal operating voltage: 100V
  • temperature coefficient: ±10x10-6/°C
  • operating temperature: -55 to +155°C
  • taped

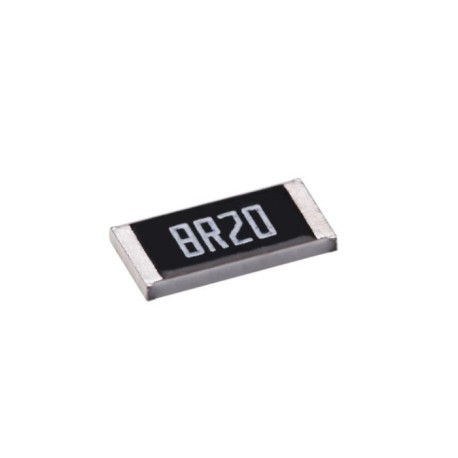

ARM03ATBX2401A, Viking SMD resistors, 0603 housing, 0,05%, 0,1W, ARM03A series

ARM03ATBX2401A 2,4k

243959 ARM03ATBX2401A 2,4k ARM03ATBX2401A ARM03ATBX2401A Viking SMD resistor series ARM03A. Metal thin film chip resistors in an 0603 SMD housing with 0,1W and a tolerance of 0,05%. These resistors comply with AEC-Q200 and have an advanced sulfur resistance according to ASTM B 809. They are suitable for direct PCB mounting (SMD) and have a low temperature coefficient of (Tc = ±10ppm/°C). We offer various types of this Viking series. power: 0,1W resistance tolerance: ±0,05% maximal operating voltage: 100V temperature coefficient: ±10x10-6/°C operating temperature: -55 to +155°C taped

Specifications

manufacturer
Manufacturer's name ARM03ATBX2401A
Case 0603
Resistance [kΩ] 2,4
Resistance tolerance [%] 0,05
Power [W] 0,1
Data Sheet

Unit price

0,308 €

Stock: 1000
Further delivery:
CW 22/2026

Minimum order quantity 100 units or
multiples of 100.
