BYM 10-1000

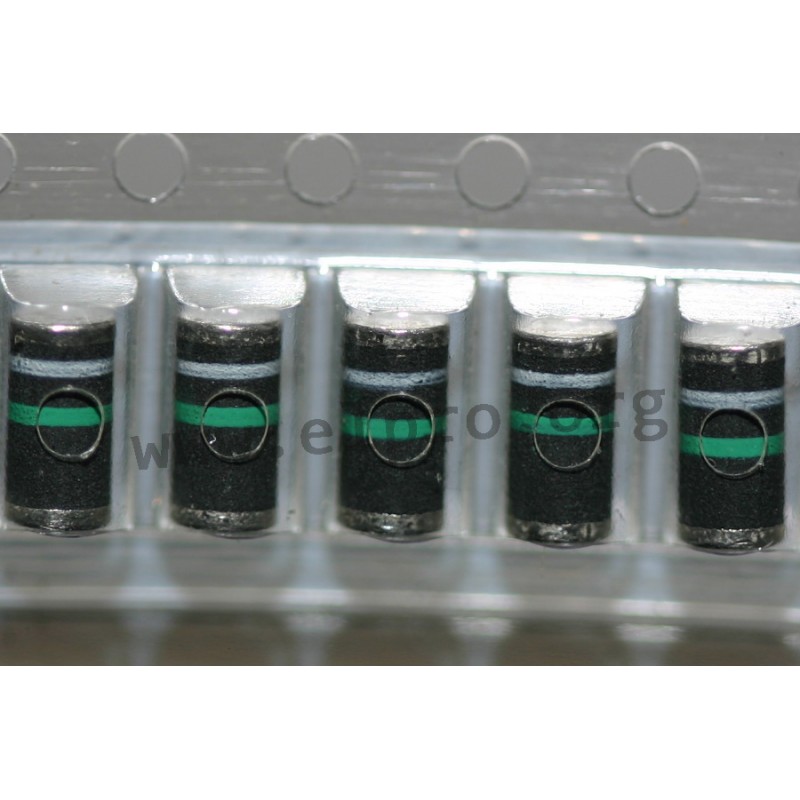

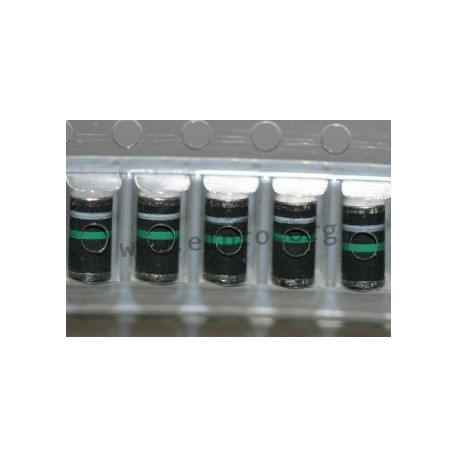

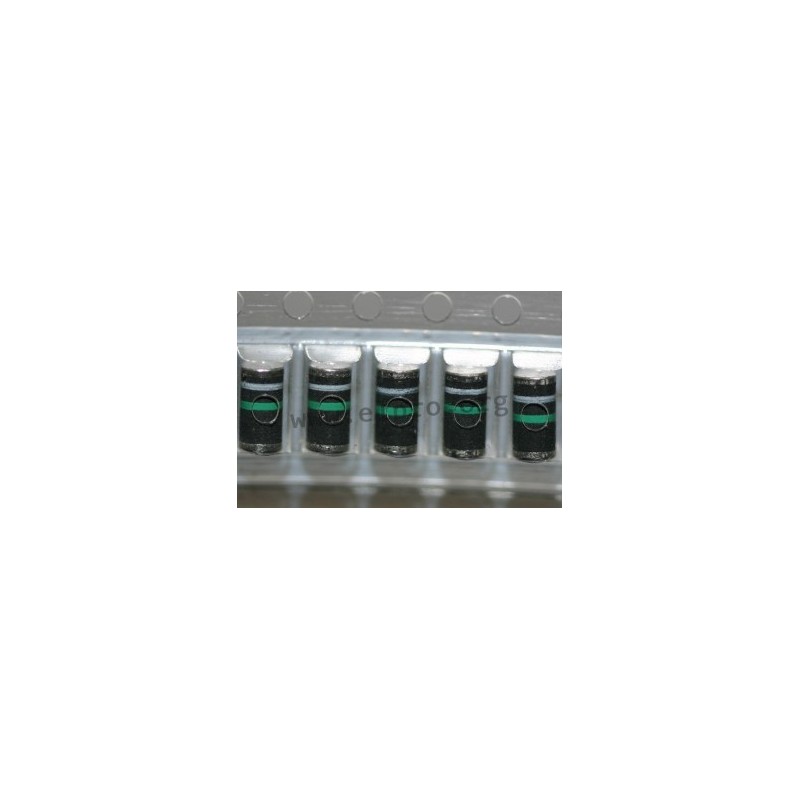

Vishay SMD Si-rectifier diode series BYM10

  • SMD Si-rectifier diodes
  • in a DO213AB housing
  • glass passivated
  • comply with AEC-Q101
  • suitable for a soldering temperature of up to 250°C
  • forward current: 1A

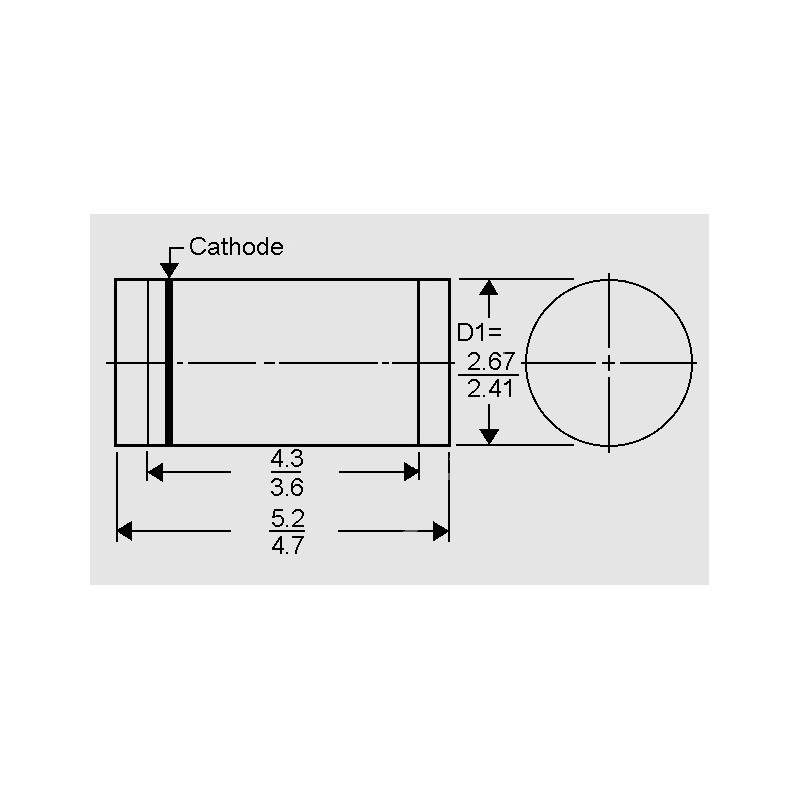

DO213AB

BYM 10-1000

240 BYM 10-1000 BYM10-1000-E3/96 BYM10-1000-E3/96 Vishay SMD Si-rectifier diode series BYM10. SMD Si-rectifier diodes in a DO213AB housing glass passivated comply with AEC-Q101 suitable for a soldering temperature of up to 250°C forward current: 1A

Specifications

manufacturer
Manufacturer's name BYM10-1000-E3/96
Case DO213AB
Operating temperature range [°C] -65...+175
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,2
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 1
Data Sheet

Unit price

0,081 €

Stock: 71843
Further delivery:
CW 06/2026

Minimum order quantity 1 to 343 units or multiples of 500 plus 0 to 343 .
