0603-SMD 1% 270 R

SMD thick film chip resistors

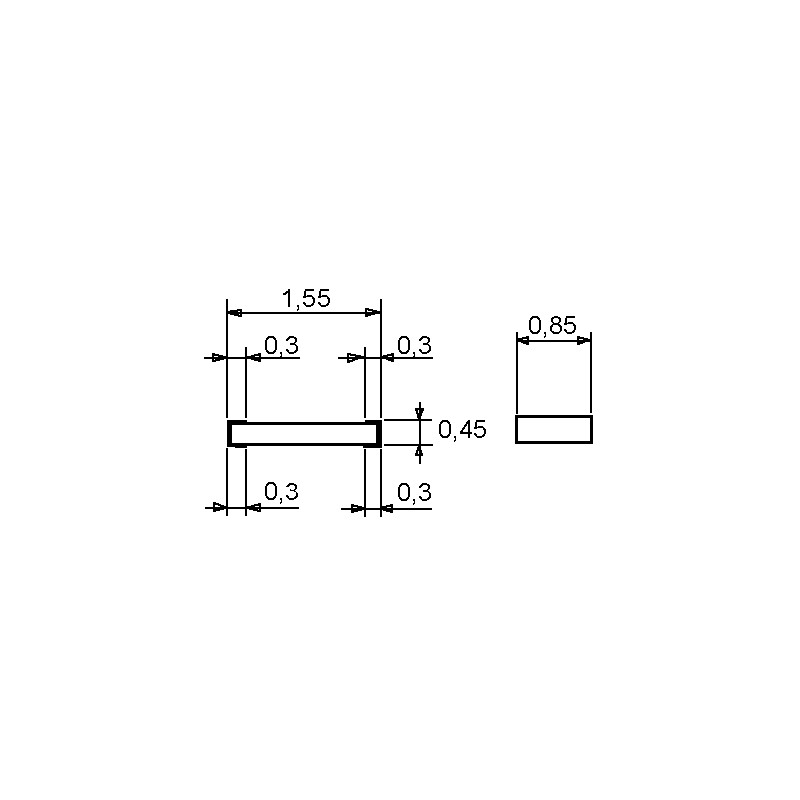

• housing: 0603

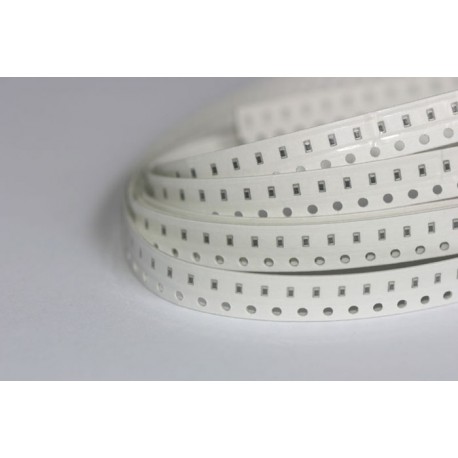

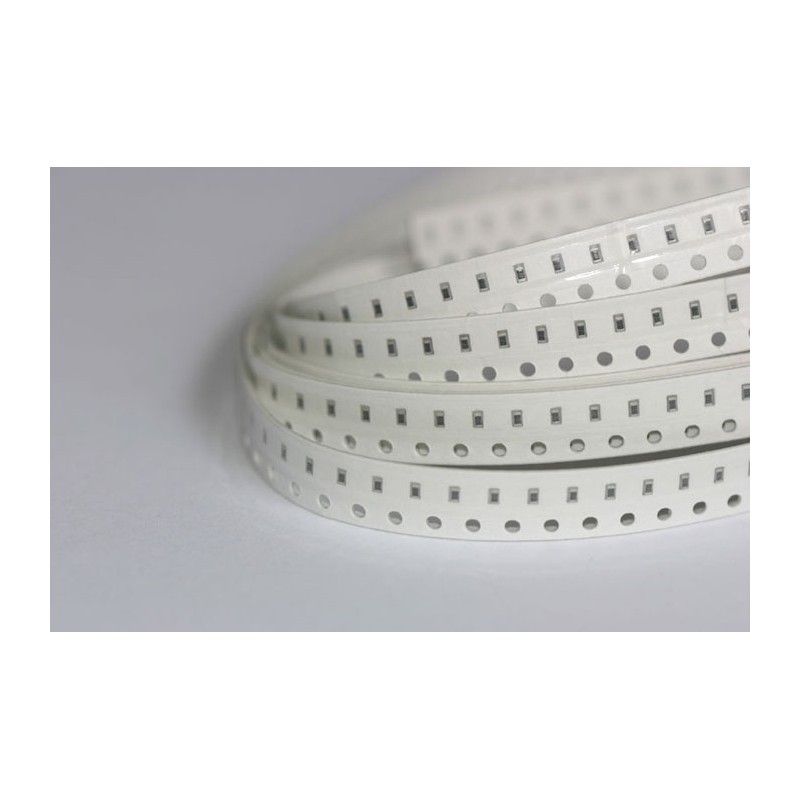

• taped
• power (at 70 °C): 0.1 Watt
• tolerance: 1%
• suitable for commercial applications
• resistive film on high quality ceramic
• protective overglaze
• excellent stability in different environmental conditions
• 50 Veff  max. operating voltage
• min. insulation resistance: 109Ω
• 550 K/W thermal resistance
• temperature coefficient: ±100x10-6/K
• temperature range: up -55 to +125°C
• climatic category: 55/125/56
• 3x10 -9/h failure rate
• derating up 70 ° to 125 °C (0 W), linear



0603-SMD 1% 270 R

18634 0603-SMD 1% 270 R CRCW0603270RFKTABC CRCW0603270RFKTABC SMD thick film chip resistors. • housing: 0603• taped• power (at 70 °C): 0.1 Watt• tolerance: 1%• suitable for commercial applications• resistive film on high quality ceramic• protective overglaze• excellent stability in different environmental conditions• 50 Veff  max. operating voltage• min. insulation resistance: 109Ω• 550 K/W thermal resistance• temperature coefficient: ±100x10-6/K• temperature range: up -55 to +125°C• climatic category: 55/125/56• 3x10 -9/h failure rate• derating up 70 ° to 125 °C (0 W), linear

Specifications

manufacturer
Manufacturer's name CRCW0603270RFKTABC
Design taped
Design 0603
Resistance [Ω] 270
Power [W] 0,1
Tolerance [%] 1
Data Sheet

Unit price

0,21 €

Volume discounts

Quantity Unit price
5000 + 0,0016 €
100 + 0,05 €

Stock: 175090
Further delivery:
CW 42/2024
