0603-SMD 1% 6,8 M

SMD thick film chip resistors

• housing: 0603
• taped
• power: 0.1 Watt
• tolerance: 1%
• resistive film on high quality ceramic
• protective overglaze
• excellent stability in different environmental conditions
• 75 Vrms  max. operating voltage
• 550 K/W thermal resistance
• temperature coefficient: ±100x10-6/K
• temperature range: up -55 to +155°C
• climatic category: 55/125/56
• 0,1x10 -9/h failure rate
• derating up 70 ° to 155 °C (0 W), linear

0603-SMD 1% 6,8 M

27034 0603-SMD 1% 6,8 M CRCW06036M80FKEA CRCW06036M80FKEA SMD thick film chip resistors. • housing: 0603• taped• power: 0.1 Watt• tolerance: 1%• resistive film on high quality ceramic• protective overglaze• excellent stability in different environmental conditions• 75 Vrms  max. operating voltage• 550 K/W thermal resistance• temperature coefficient: ±100x10-6/K• temperature range: up -55 to +155°C• climatic category: 55/125/56• 0,1x10 -9/h failure rate• derating up 70 ° to 155 °C (0 W), linear

Data sheet

manufacturer
manufacturer's name CRCW06036M80FKEA

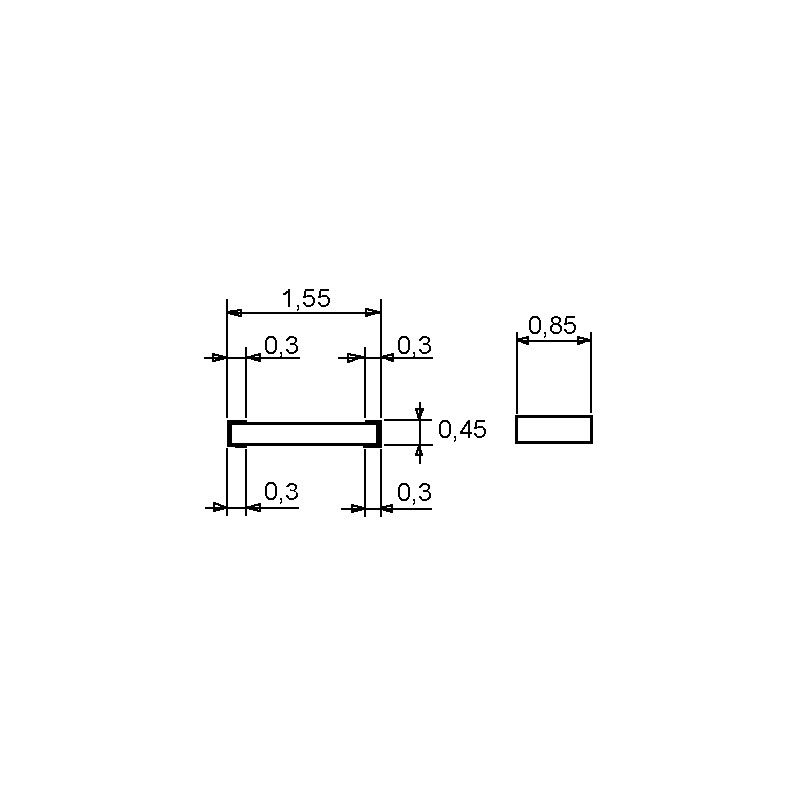

design 0603
resistance [Ω] 6,8M
power [W] 0,1
tolerance [%] 1

0,81 €

Volume discounts

1000 pcs. / 0,0061 €
100 pcs. / 0,16 €

stock: 17900
