0603-SMD 1% 8,2 M

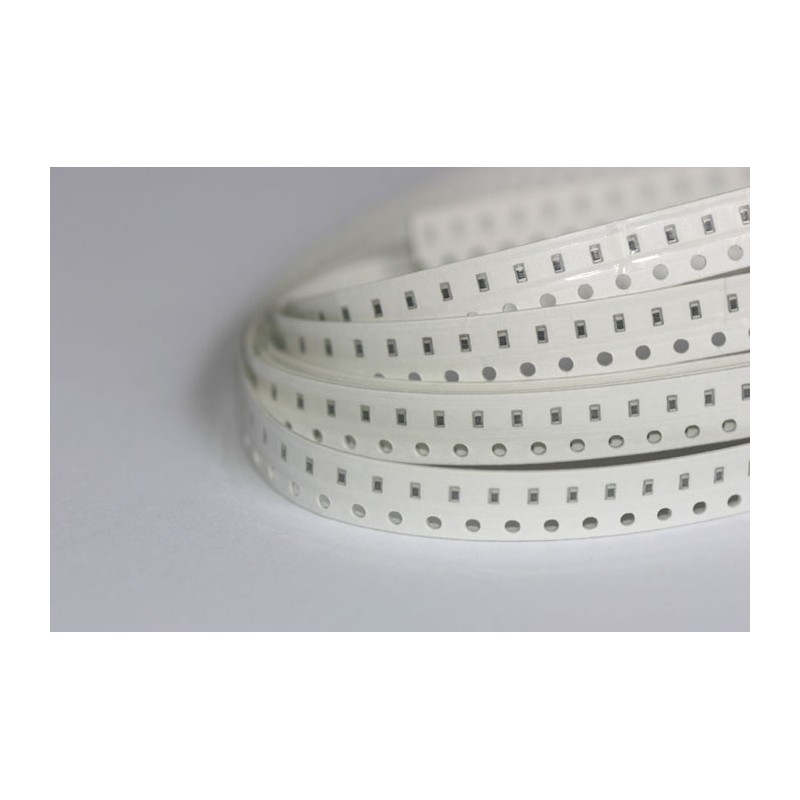

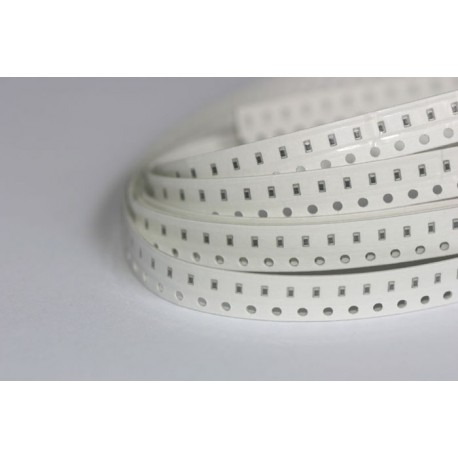

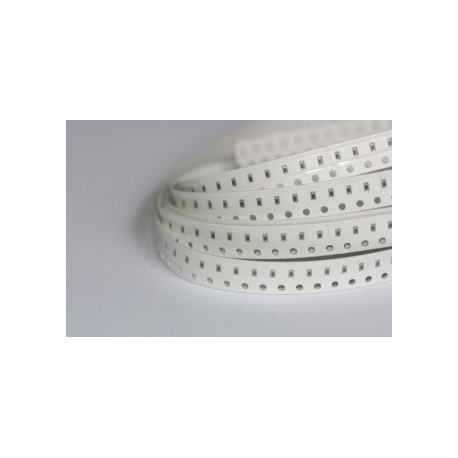

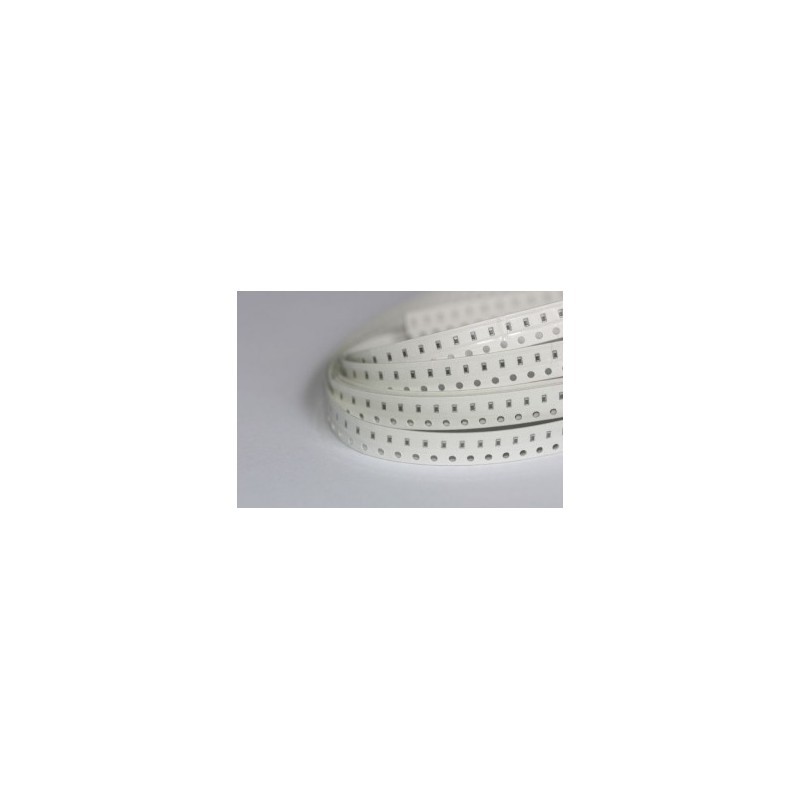

SMD thick film chip resistors

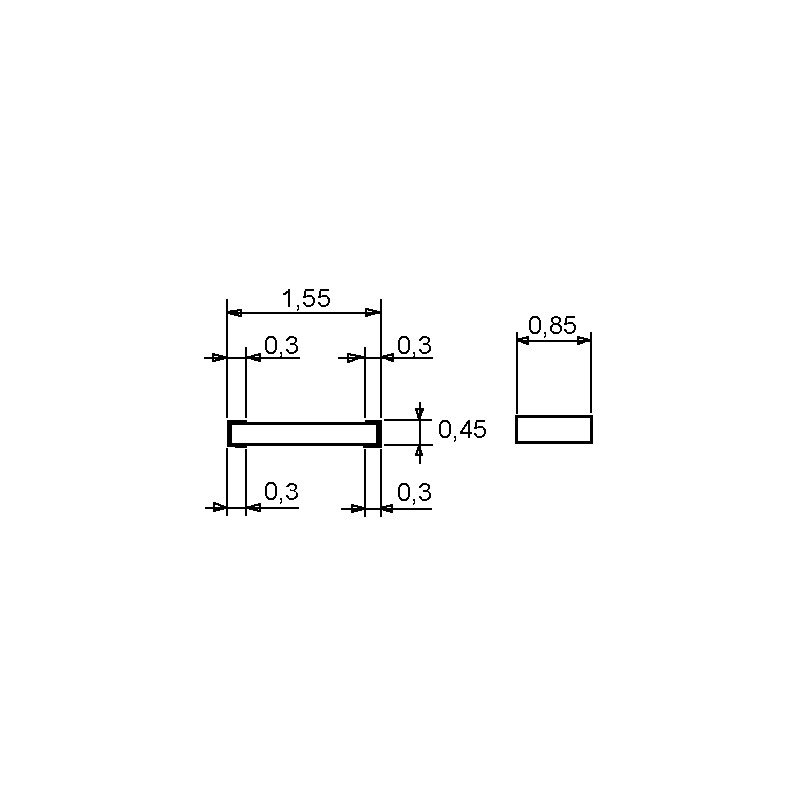

• housing: 0603
• taped
• power: 0.1 Watt
• tolerance: 1%
• resistive film on high quality ceramic
• protective overglaze
• excellent stability in different environmental conditions
• 75 Vrms  max. operating voltage
• 550 K/W thermal resistance
• temperature coefficient: ±100x10-6/K
• temperature range: up -55 to +155°C
• climatic category: 55/125/56
• 0,1x10 -9/h failure rate
• derating up 70 ° to 155 °C (0 W), linear

0603-SMD 1% 8,2 M

27083 0603-SMD 1% 8,2 M CRCW06038M20FKEA CRCW06038M20FKEA SMD thick film chip resistors. • housing: 0603• taped• power: 0.1 Watt• tolerance: 1%• resistive film on high quality ceramic• protective overglaze• excellent stability in different environmental conditions• 75 Vrms  max. operating voltage• 550 K/W thermal resistance• temperature coefficient: ±100x10-6/K• temperature range: up -55 to +155°C• climatic category: 55/125/56• 0,1x10 -9/h failure rate• derating up 70 ° to 155 °C (0 W), linear

Specifications

manufacturer
Manufacturer's name CRCW06038M20FKEA
Design 0603
Resistance [Ω] 8,2M
Power [W] 0,1
Tolerance [%] 1

Unit price

0,77 €

Volume discounts

Quantity Unit price
1000 + 0,0058 €
100 + 0,16 €

Stock: 22300
